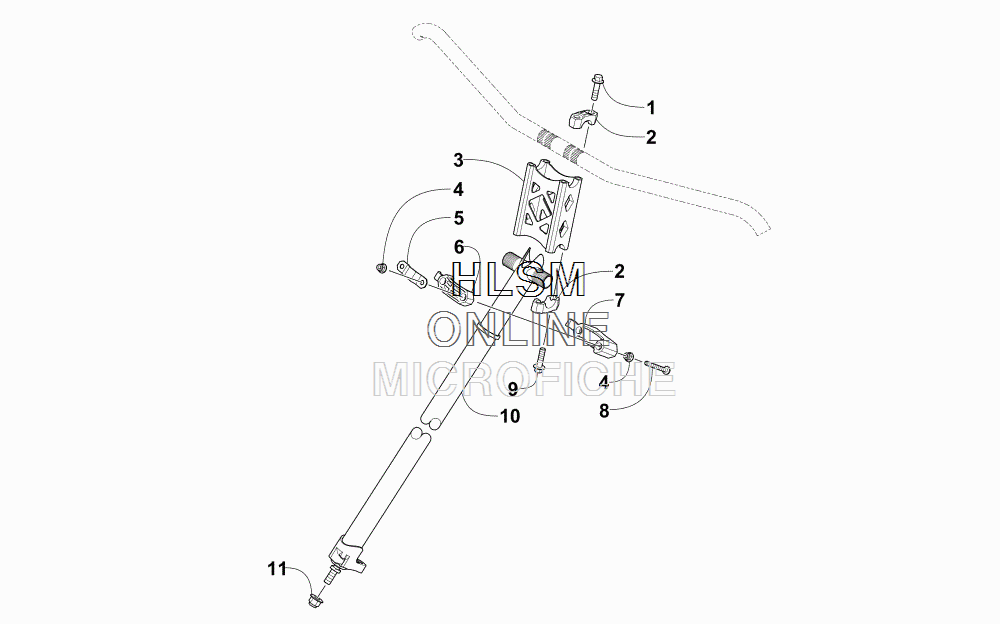

STEERING POST ASSEMBLY для Arctic Cat PANTERA 7000 LTD (BLACK) [S2015PTULXUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8476-830 SCREW,MACH-TSTRH M8X1.25X30 Z & Y
    SCREW,MACH-TSTRH M8X1.25X30 Z & Y
  • 2
    1605-118 CAP, STEERING
    CAP, STEERING
  • 3
    1605-034 BLOCK, RISER - 6.5 IN.
    BLOCK, RISER - 6.5 IN.
  • 4
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 5
    0605-998 PLATE,RETAINING-STEERING POST
    PLATE,RETAINING-STEERING POST
  • 6
    1605-043 BLOCK, MOUNTING - STEERING POST
    BLOCK, MOUNTING - STEERING POST
  • 7
    1605-156 BLOCK, MOUNTING - STEERING POST
    BLOCK, MOUNTING - STEERING POST
  • 8
    2623-070 SCREW,MACH-TSPNH-M6X1.0X70 CL 8.8 Z & Y
    SCREW,MACH-TSPNH-M6X1.0X70 CL 8.8 Z & Y
  • 9
    8408-830 SCREW,CAP-HFH M8X1.25X30 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X30 CL8.8 Z & Y
  • 10
    1705-309 POST, STEERING
    POST, STEERING
  • 11
    2623-076 NUT,LOCK W/WASHER-M10X1.25-Z & C CLASS 8
    NUT,LOCK W/WASHER-M10X1.25-Z & C CLASS 8
