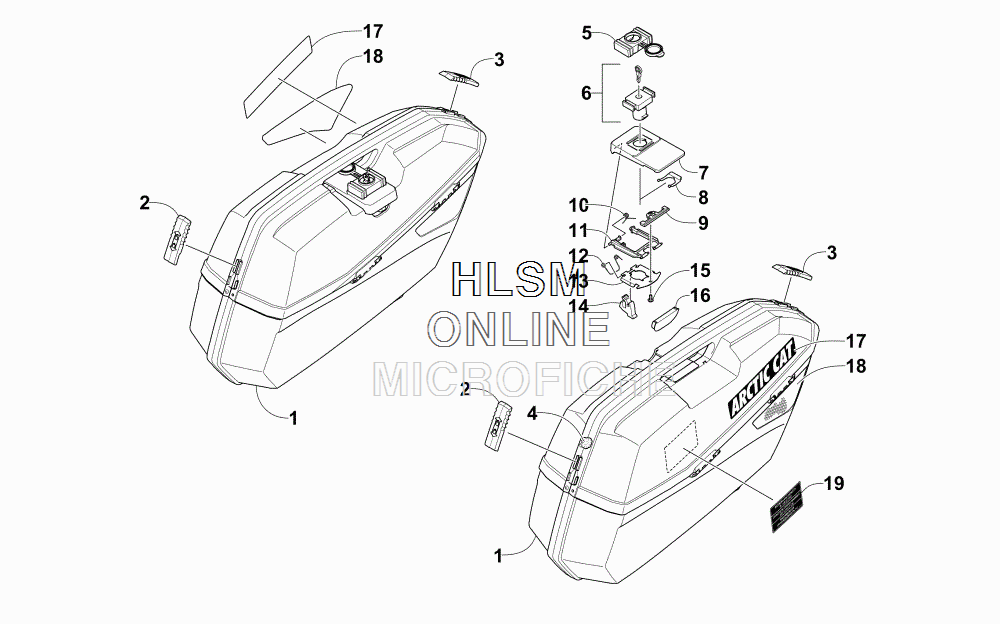

SADDLEBAG ASSEMBLY для Arctic Cat PANTERA 7000 LTD (BLACK) [S2015PTULXUSB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-506 SADDLEBAG - RIGHT
    SADDLEBAG - RIGHT
  • 1
    4718-507 SADDLEBAG - LEFT
    SADDLEBAG - LEFT
  • 2
    6606-650 LATCH, FRONT SLIDE - RIGHT
    LATCH, FRONT SLIDE - RIGHT
  • 2
    6606-651 LATCH, FRONT SLIDE - LEFT
    LATCH, FRONT SLIDE - LEFT
  • 3
    6606-652 LATCH, REAR SLIDE - RIGHT
    LATCH, REAR SLIDE - RIGHT
  • 3
    6606-653 LATCH, REAR SLIDE - LEFT
    LATCH, REAR SLIDE - LEFT
  • 4
    6606-563 SEAL,SADDLEBAG-6.5 W X 665MM LG
    SEAL,SADDLEBAG-6.5 W X 665MM LG
  • 5
    6606-696 COVER, LATCH
    COVER, LATCH
  • 6
    2623-074 LATCH, LOCKING
    LATCH, LOCKING
  • 7
    6606-584 LATCH, SADDLEBAG
    LATCH, SADDLEBAG
  • 8
    2416-984 CLIP,RETAINER-GLOVE BOX LATCH
    CLIP,RETAINER-GLOVE BOX LATCH
  • 9
    6606-601 RETAINER,LATCH-SADDLEBAG
    RETAINER,LATCH-SADDLEBAG
  • 10
    2602-225 SPRING,TORSION-ARM TENSIONER
    SPRING,TORSION-ARM TENSIONER
  • 11
    6606-603 HINGE,LATCH-SADDLEBAG
    HINGE,LATCH-SADDLEBAG
  • 12
    6606-861 SPRING,TORSION-DOUBLE
    SPRING,TORSION-DOUBLE
  • 13
    6606-570 PLATE,STRIKE-LATCH
    PLATE,STRIKE-LATCH
  • 14
    6606-649 HOOK,LATCH-SADDLEBAG-CTL
    HOOK,LATCH-SADDLEBAG-CTL
  • 15
    1623-978 SCREW,SELF TAP-TSPH-ECOSYN-M4X10
    SCREW,SELF TAP-TSPH-ECOSYN-M4X10
  • 16
    6606-585 CLOSE OFF, LATCH
    CLOSE OFF, LATCH
  • 17
    1621-698 DECAL, SIDE PANEL - LOWER FRONT - RIGHT
    DECAL, SIDE PANEL - LOWER FRONT - RIGHT
  • 18
    0621-908 DECAL, REFLECTOR - RIGHT - (RED)
    DECAL, REFLECTOR - RIGHT - (RED)
  • 18
    0621-909 DECAL, REFLECTOR - LEFT - (RED)
    DECAL, REFLECTOR - LEFT - (RED)
  • 19
    2621-283 DECAL,CAPACITY-SADDLEBAG
    DECAL,CAPACITY-SADDLEBAG
