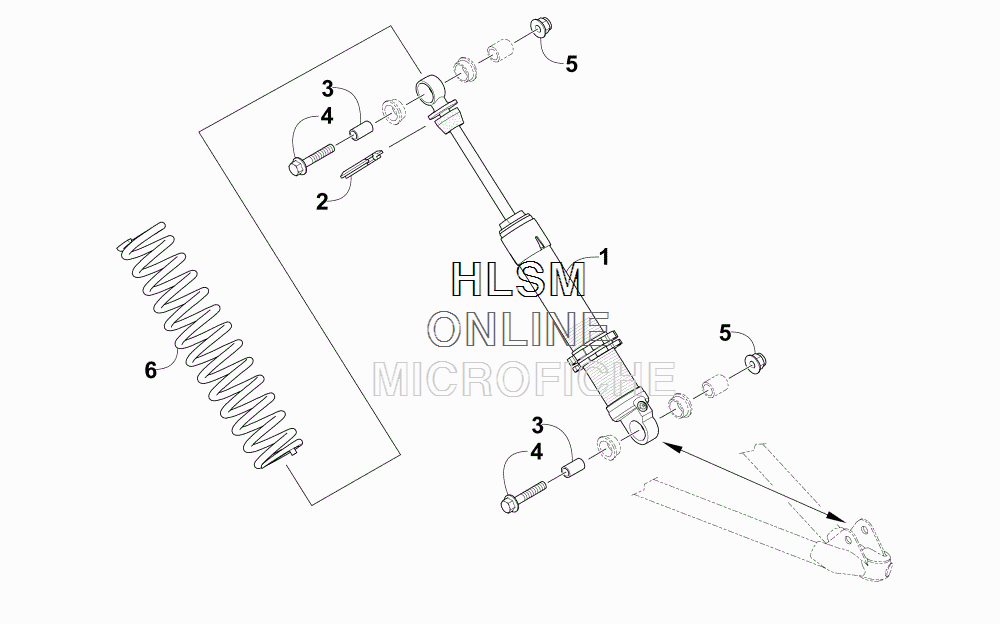

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat PANTERA 7000 LTD (BLACK) [S2015PTULXUSB] - 2015 года выпуска
-
№АртикулНазвание
-
13703-285 SHOCK ABSORBERSHOCK ABSORBER
-
23604-200 RETAINER,SPRING-POWDER METALRETAINER,SPRING-POWDER METAL
-
33604-109 SLEEVE,SHOCK EYELET-10MM IDSLEEVE,SHOCK EYELET-10MM ID
-
48408-050 SCREW,CAP-HFH M10X1.25X50 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X50 CL8.8 Z & Y
-
58427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
63703-381 SPRING, COMPRESSION - (BLACK)SPRING, COMPRESSION - (BLACK)
