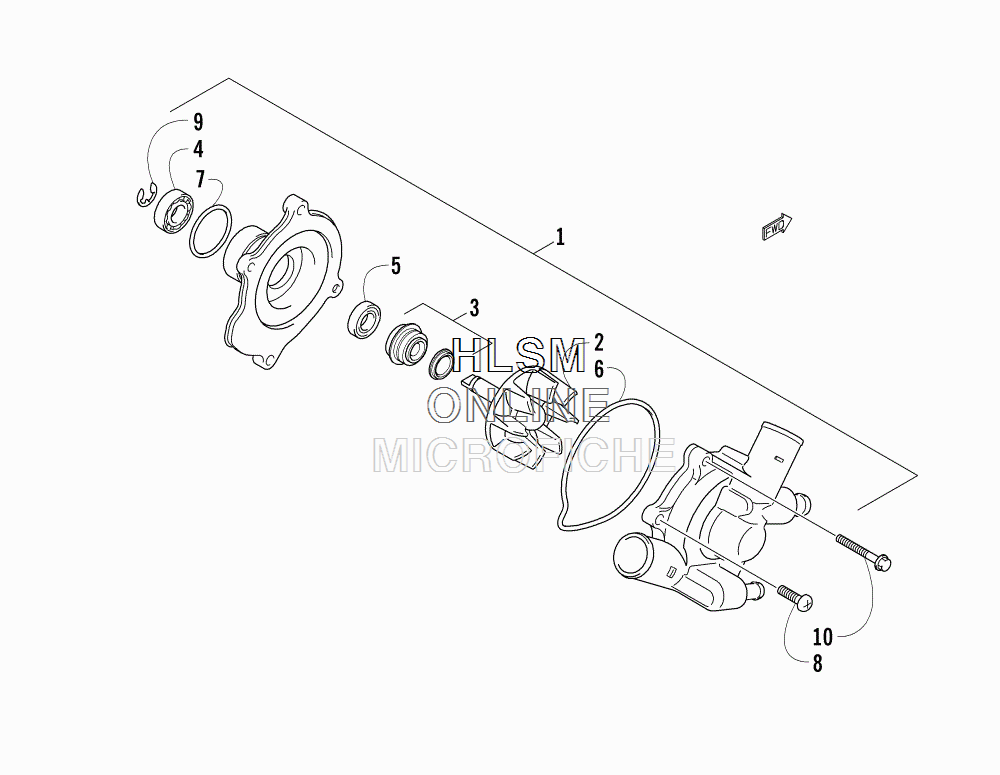

WATER PUMP ASSEMBLY для Arctic Cat M 9000 HCR 162 (GREEN) [S2015M9NHCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-178 PUMP, WATER - ASSEMBLY (INC. 2-9)
    PUMP, WATER - ASSEMBLY (INC. 2-9)
  • 2
    3007-179 ...IMPELLER/SHAFT
    ...IMPELLER/SHAFT
  • 3
    3007-180 ...SEAL,MECHANICAL
    ...SEAL,MECHANICAL
  • 4
    3003-615 ...BEARING,OIL PUMP DRIVESHAFT,M10X26X8
    ...BEARING,OIL PUMP DRIVESHAFT,M10X26X8
  • 5
    3402-465 ...OIL SEAL (M10X21X5)
    ...OIL SEAL (M10X21X5)
  • 6
    3007-181 ...O-RING
    ...O-RING
  • 7
    3423-404 ...O-RING
    ...O-RING
  • 8
    3007-511 ...SCREW
    ...SCREW
  • 9
    3007-512 ...E RING
    ...E RING
  • 10
    3007-503 BOLT,MAGNETO COVER
    BOLT,MAGNETO COVER
