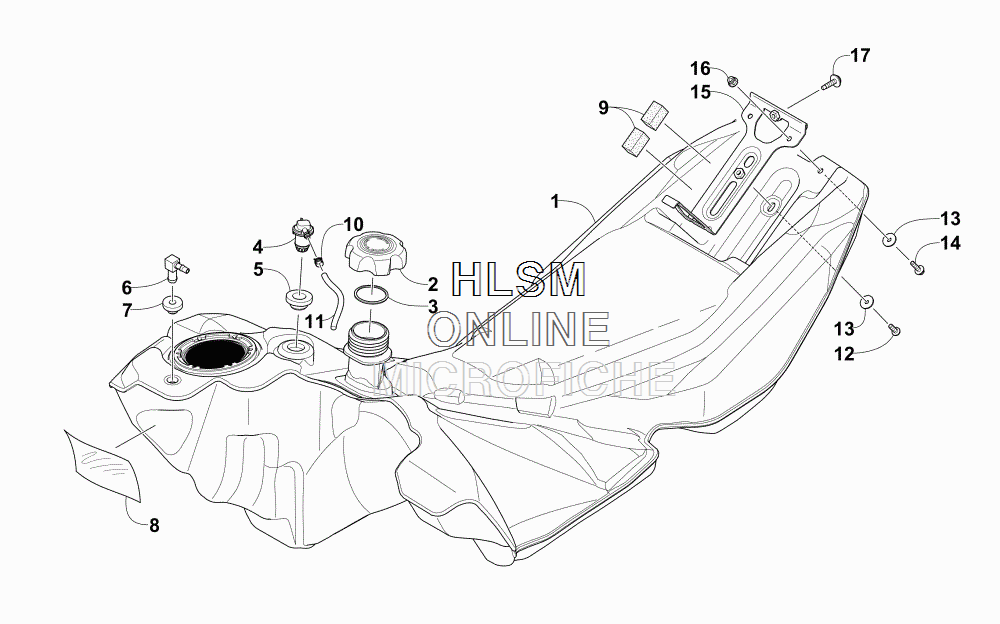

GAS TANK ASSEMBLY для Arctic Cat M 9000 HCR 162 (GREEN) [S2015M9NHCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1770-016 TANK, GAS - ASSEMBLY (INC. 2-7)
    TANK, GAS - ASSEMBLY (INC. 2-7)
  • 2
    2670-048 ...CAP, GAS TANK - ASSEMBLY (INC. 3)
    ...CAP, GAS TANK - ASSEMBLY (INC. 3)
  • 3
    0109-733 ......GASKET, GAS TANK CAP
    ......GASKET, GAS TANK CAP
  • 4
    1670-787 ...VALVE, CHECK
    ...VALVE, CHECK
  • 5
    1670-822 ...GROMMET,3/4"-FUEL TANK
    ...GROMMET,3/4"-FUEL TANK
  • 6
    1670-494 ...FITTING, OIL TANK
    ...FITTING, OIL TANK
  • 7
    1670-325 ...GROMMET, 1/4"-FUEL TANK
    ...GROMMET, 1/4"-FUEL TANK
  • 8
    0619-206 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 9
    0617-667 FOAM,GAS TANK PAD
    FOAM,GAS TANK PAD
  • 10
    1623-233 CLAMP, HOSE-10.41MM ID
    CLAMP, HOSE-10.41MM ID
  • 11
    6101-009 HOSE, GASLINE - 50 FT
    HOSE, GASLINE - 50 FT
  • 11
    6101-001 HOSE, GASLINE - 100 FT
    HOSE, GASLINE - 100 FT
  • 12
    8410-616 SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)
    SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)
  • 13
    8050-223 WASHER,FLAT (STD) 1/4 DIA (BLACK)
    WASHER,FLAT (STD) 1/4 DIA (BLACK)
  • 14
    8410-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 RIE (BLACK)
    SCREW,CAP-HFH M6X1.0X20 CL8.8 RIE (BLACK)
  • 15
    5706-098 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
  • 16
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 17
    0423-609 SCREW,FUEL TANK MOUNT (M6X18 DP)
    SCREW,FUEL TANK MOUNT (M6X18 DP)
