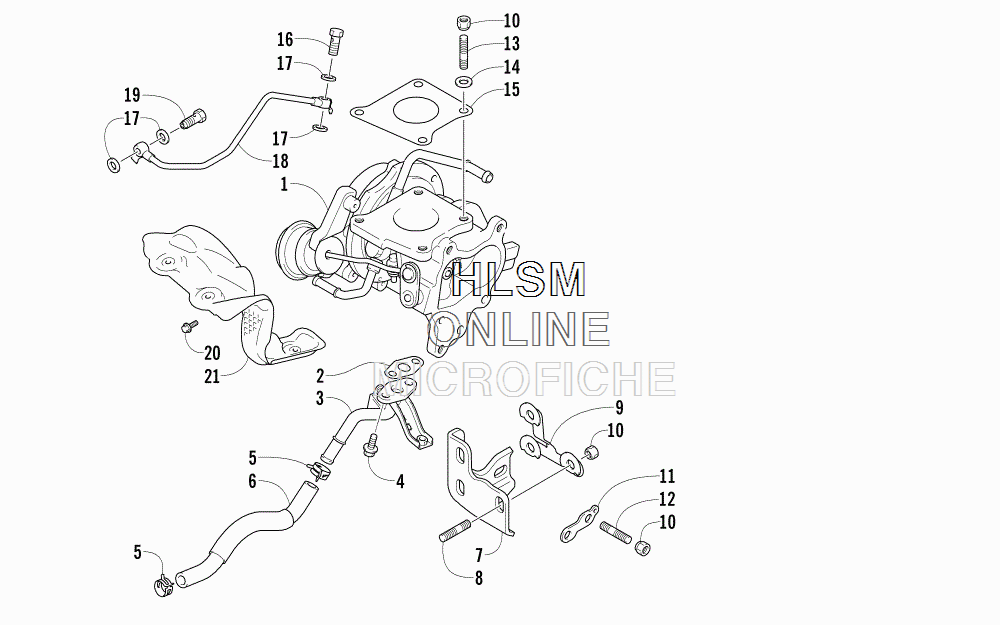

TURBOCHARGER ASSEMBLY для Arctic Cat M 9000 HCR 162 (GREEN) [S2015M9NHCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    3007-806 TURBOCHARGER
    TURBOCHARGER
  • 2
    3007-814 GASKET,OIL DRAIN JOINT
    GASKET,OIL DRAIN JOINT
  • 3
    3007-813 FITTING, OIL DRAIN
    FITTING, OIL DRAIN
  • 4
    3007-371 BOLT (6X12)
    BOLT (6X12)
  • 5
    3006-855 CLAMP, HOSE
    CLAMP, HOSE
  • 6
    3007-815 HOSE,TURBO OIL DRAIN
    HOSE,TURBO OIL DRAIN
  • 7
    3007-797 MOUNT BRACKET, TURBOCHARGER
    MOUNT BRACKET, TURBOCHARGER
  • 8
    3007-415 STUD BOLT
    STUD BOLT
  • 9
    3007-800 WASHER ASSEMBLY,TC BRACKET
    WASHER ASSEMBLY,TC BRACKET
  • 10
    3006-111 NUT,8MM 02 660 L/C
    NUT,8MM 02 660 L/C
  • 11
    3007-799 RETAINER, BRACKET
    RETAINER, BRACKET
  • 12
    3007-798 BOLT,TC BRACKET STUD
    BOLT,TC BRACKET STUD
  • 13
    3007-807 BOLT,EXHAUST MANIFOLD & TC STUD
    BOLT,EXHAUST MANIFOLD & TC STUD
  • 14
    3007-793 WASHER,EXHAUST MANIFOLD
    WASHER,EXHAUST MANIFOLD
  • 15
    3007-801 GASKET, EXHAUST MANIFOLD/TURBOCHARGER
    GASKET, EXHAUST MANIFOLD/TURBOCHARGER
  • 16
    3007-811 BOLT,UNION OIL TC SIDE
    BOLT,UNION OIL TC SIDE
  • 17
    3006-112 GASKET
    GASKET
  • 18
    0637-328 PIPE,TURBO OIL INLET-KIT
    PIPE,TURBO OIL INLET-KIT
  • 19
    3006-892 BOLT, UNION
    BOLT, UNION
  • 20
    3007-804 BOLT,EXHAUST MANIFOLD & TC COVER
    BOLT,EXHAUST MANIFOLD & TC COVER
  • 21
    3007-803 SHIELD, HEAT - LOWER
    SHIELD, HEAT - LOWER
