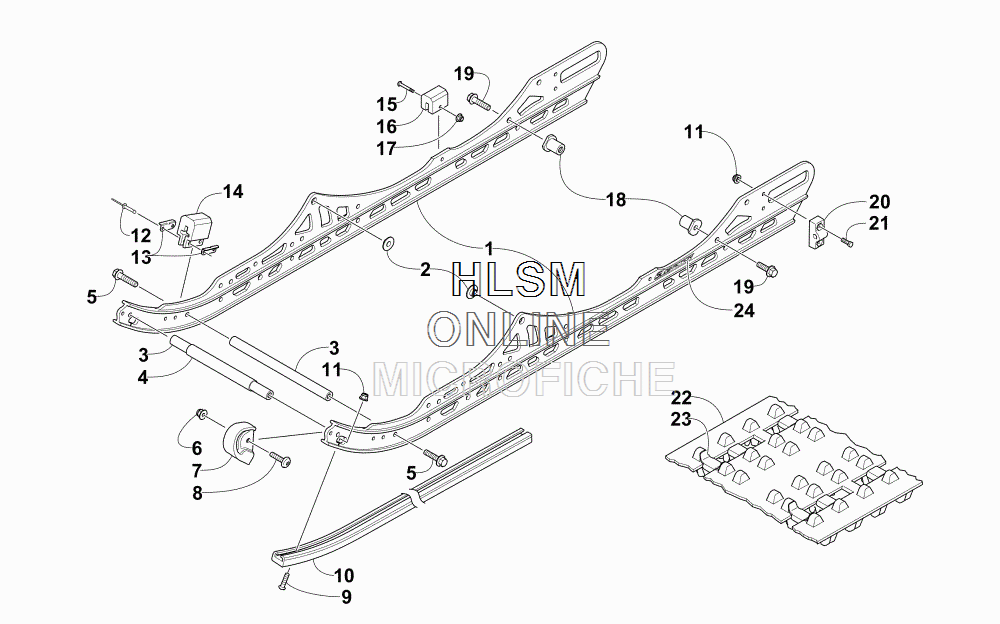

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat LYNX 2000 (GREEN) [S2015LXDFCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • -
    2704-724 COMPLETE SKID FRAME ASSEMBLY
    COMPLETE SKID FRAME ASSEMBLY
  • 1
    3604-572 RAIL, FORMED
    RAIL, FORMED
  • 2
    3604-266 INSERT, RAIL
    INSERT, RAIL
  • 3
    3604-268 AXLE
    AXLE
  • 4
    2604-281 SPACER
    SPACER
  • 5
    8408-826 SCREW, CAP
    SCREW, CAP
  • 6
    8427-602 NUT, LOCK
    NUT, LOCK
  • 7
    3604-003 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 8
    8476-625 SCREW, MACH-TSTRH M6X1.0X25 Z & Y
    SCREW, MACH-TSTRH M6X1.0X25 Z & Y
  • 9
    0123-859 SCREW, MACH-PHFH 1/4-20 X 1 1/8 Z & Y
    SCREW, MACH-PHFH 1/4-20 X 1 1/8 Z & Y
  • 10
    3604-186 WEARSTRIP, SLIDE RAIL - BLACK
    WEARSTRIP, SLIDE RAIL - BLACK
  • 11
    8047-366 NUT, LOCK
    NUT, LOCK
  • 12
    8060-633 RIVET,BLIND-DH AA614 BLK
    RIVET,BLIND-DH AA614 BLK
  • 13
    0604-967 BRACKET, RETAINING
    BRACKET, RETAINING
  • 14
    0604-918 PAD, SHOCK
    PAD, SHOCK
  • 15
    8470-540 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    1604-429 PAD, SHOCK
    PAD, SHOCK
  • 17
    8427-502 NUT, LOCK
    NUT, LOCK
  • 18
    3604-979 AXLE, OFFSET ARM - M10
    AXLE, OFFSET ARM - M10
  • 19
    8408-031 SCREW, CAP
    SCREW, CAP
  • 20
    0704-352 ADJUSTER, BLOCK
    ADJUSTER, BLOCK
  • 21
    8002-042 SCREW, CAP
    SCREW, CAP
  • 22
    2602-096 TRACK,15X128X 1" CHALLENGER LP (INC. 23)
    TRACK,15X128X 1" CHALLENGER LP (INC. 23)
  • 23
    2602-384 ...CLIP, WEAR
    ...CLIP, WEAR
  • 24
    0621-907 DECAL, "SLIDE ACTION"
    DECAL, "SLIDE ACTION"
