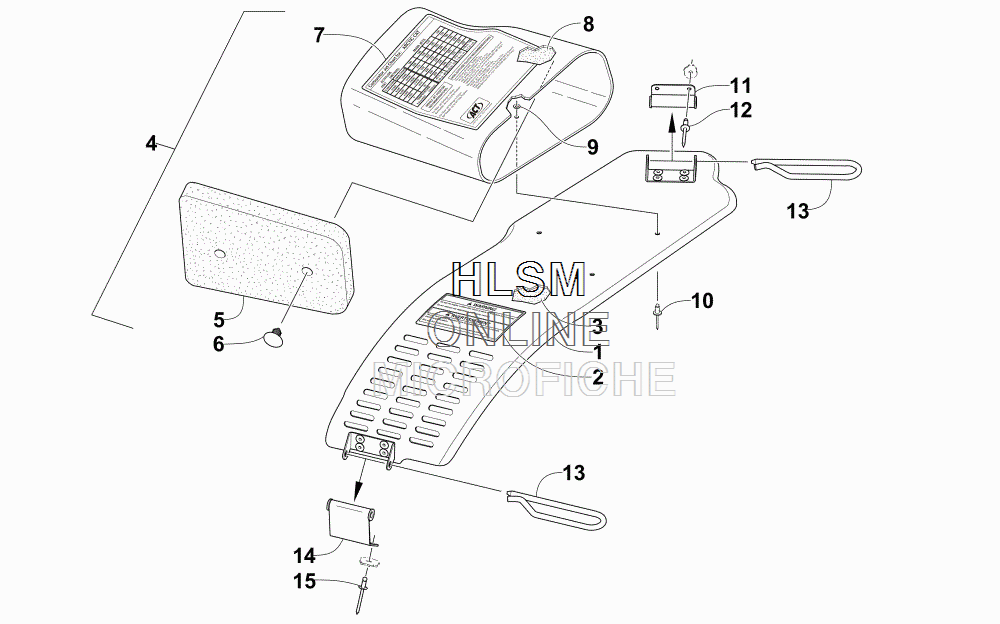

BELT GUARD ASSEMBLY для Arctic Cat LYNX 2000 (GREEN) [S2015LXDFCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1707-153 GUARD, BELT
    GUARD, BELT
  • 2
    1611-565 DECAL, WARNING - BELT GUARD
    DECAL, WARNING - BELT GUARD
  • 3
    0617-661 FOAM, BELT GUARD
    FOAM, BELT GUARD
  • 4
    0713-010 DUCT, AIR-OUT (INC. 5-6)
    DUCT, AIR-OUT (INC. 5-6)
  • 5
    0617-561 ...FOAM, AIR-OUT
    ...FOAM, AIR-OUT
  • 6
    1623-809 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 7
    2621-317 DECAL, CLUTCHING CHART
    DECAL, CLUTCHING CHART
  • 8
    0617-662 FOAM, AIR-OUT - UPPER
    FOAM, AIR-OUT - UPPER
  • 9
    0123-802 WASHER, FLAT .194X.50X.048
    WASHER, FLAT .194X.50X.048
  • 10
    8060-688 RIVET, BLIND-DH SS66 ZINC
    RIVET, BLIND-DH SS66 ZINC
  • 11
    1707-169 HINGE, BELT GUARD - REAR
    HINGE, BELT GUARD - REAR
  • 12
    8060-504 RIVET, BLIND-DH SS53 BLK
    RIVET, BLIND-DH SS53 BLK
  • 13
    1623-720 PIN, BELT GUARD
    PIN, BELT GUARD
  • 14
    1707-168 HINGE, BELT GUARD - FRONT
    HINGE, BELT GUARD - FRONT
  • 15
    8061-508 RIVET, BLIND-LF SS56 BLACK
    RIVET, BLIND-LF SS56 BLACK
