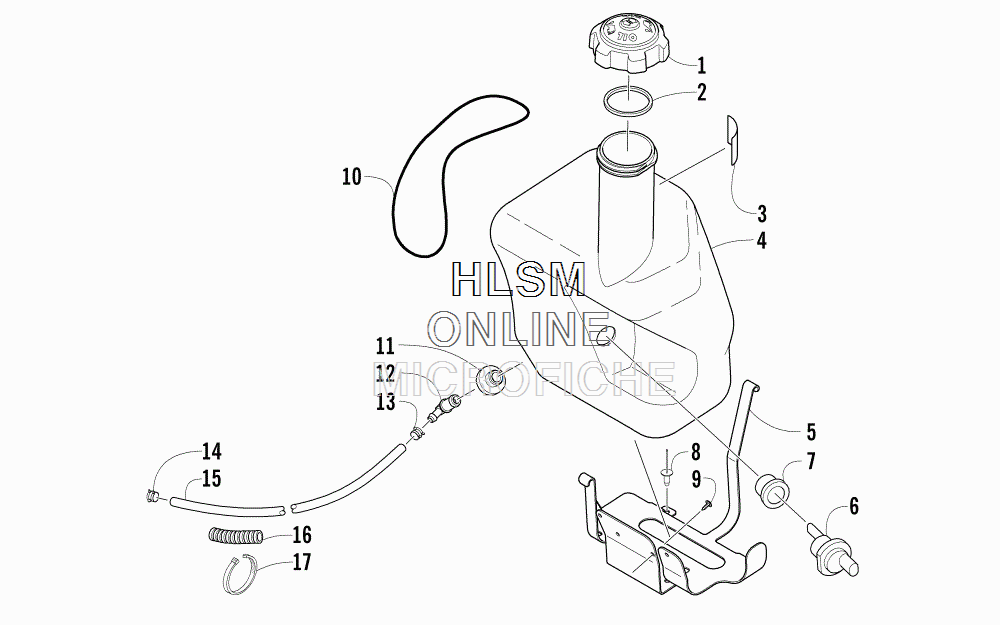

OIL TANK ASSEMBLY для Arctic Cat LYNX 2000 (GREEN) [S2015LXDFCUSG] - 2015 года выпуска`
-
№АртикулНазвание
-
11670-365 CAP, VENTED- OIL IMPRINTED (INC. 2)CAP, VENTED- OIL IMPRINTED (INC. 2)
-
20109-733 ...GASKET, GAS TANK CAP...GASKET, GAS TANK CAP
-
31611-564 DECAL, OIL TANKDECAL, OIL TANK
-
41670-922 TANK, OILTANK, OIL
-
53706-798 BRACKET, MOUNTING - OIL TANKBRACKET, MOUNTING - OIL TANK
-
60609-915 SWITCH, LEVEL-OIL (INC. 7)SWITCH, LEVEL-OIL (INC. 7)
-
70609-924 ...GROMMET...GROMMET
-
88060-686 RIVET, BLIND-DH SS64 ZINCRIVET, BLIND-DH SS64 ZINC
-
91623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
101623-693 O-RINGO-RING
-
111670-325 GROMMETGROMMET
-
121670-494 FITTING, OIL TANKFITTING, OIL TANK
-
131623-042 CLAMP, 10MMCLAMP, 10MM
-
141623-351 CLAMP, HOSECLAMP, HOSE
-
156101-009 HOSE, GASLINE - 50 FTHOSE, GASLINE - 50 FT
-
156101-001 HOSE, GASLINE - 100 FTHOSE, GASLINE - 100 FT
-
160716-558 CONDUIT, PROTECTIVE - 10 FTCONDUIT, PROTECTIVE - 10 FT
-
170123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
