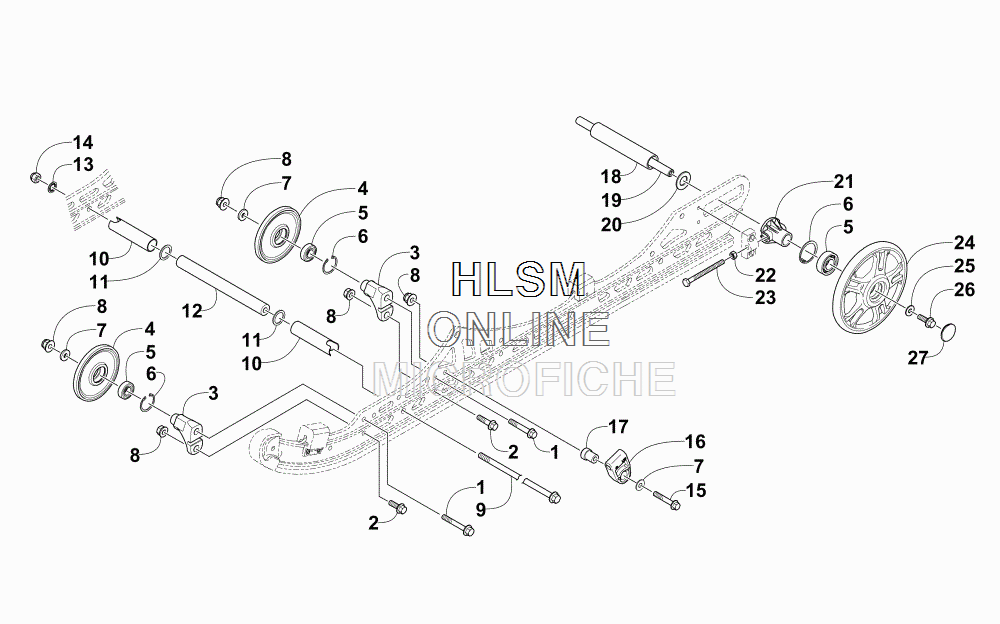

IDLER WHEEL ASSEMBLY для Arctic Cat LYNX 2000 (GREEN) [S2015LXDFCUSG] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8408-880 SCREW, CAP-HFH M8X1.25X80 CL8.8 Z & Y
    SCREW, CAP-HFH M8X1.25X80 CL8.8 Z & Y
  • 2
    8408-830 SCREW, CAP-HFH M8X1.25X30 CL8.8 Z & Y
    SCREW, CAP-HFH M8X1.25X30 CL8.8 Z & Y
  • 3
    3604-004 BLOCK, MOUNTING - IDLER WHEEL
    BLOCK, MOUNTING - IDLER WHEEL
  • 4
    3604-039 WHEEL, IDLER (INC. 5-6)
    WHEEL, IDLER (INC. 5-6)
  • 5
    3604-033 ...BEARING, WHL-NSK CHINA 6004-W/ENS GREASE
    ...BEARING, WHL-NSK CHINA 6004-W/ENS GREASE
  • 6
    0623-946 ...RING, RETAINING
    ...RING, RETAINING
  • 7
    8450-133 WASHER, FLAT-M8-9.12 X 25.40 X 2.30Z & Y
    WASHER, FLAT-M8-9.12 X 25.40 X 2.30Z & Y
  • 8
    8427-802 NUT, LOCK
    NUT, LOCK
  • 9
    1423-064 SCREW, CAP
    SCREW, CAP
  • 10
    3604-083 SPACER
    SPACER
  • 11
    0623-912 WASHER, FLAT - 0.890 X 1.19 X 0.060 Z & Y
    WASHER, FLAT - 0.890 X 1.19 X 0.060 Z & Y
  • 12
    3604-269 AXLE
    AXLE
  • 13
    1623-992 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 14
    8422-002 NUT, LOCK
    NUT, LOCK
  • 15
    8408-850 SCREW, CAP
    SCREW, CAP
  • 16
    2604-516 SLIDE, SPRING
    SLIDE, SPRING
  • 17
    3604-204 BLOCK, SLIDE
    BLOCK, SLIDE
  • 18
    3604-472 SPACER, REAR WHEEL
    SPACER, REAR WHEEL
  • 19
    3604-300 AXLE, REAR
    AXLE, REAR
  • 20
    0623-921 WASHER, FLAT
    WASHER, FLAT
  • 21
    1704-490 BUSHING,ADJUSTER-3 WHL-SHORT-MACH
    BUSHING,ADJUSTER-3 WHL-SHORT-MACH
  • 22
    8042-486 NUT
    NUT
  • 23
    0124-310 SCREW, CAP
    SCREW, CAP
  • 24
    3604-066 WHEEL, IDLER - GREEN (INC. 5-6)
    WHEEL, IDLER - GREEN (INC. 5-6)
  • 25
    0623-664 WASHER, FLAT
    WASHER, FLAT
  • 26
    8408-831 SCREW, CAP
    SCREW, CAP
  • 27
    1604-952 CAP, IDLER WHEEL
    CAP, IDLER WHEEL
