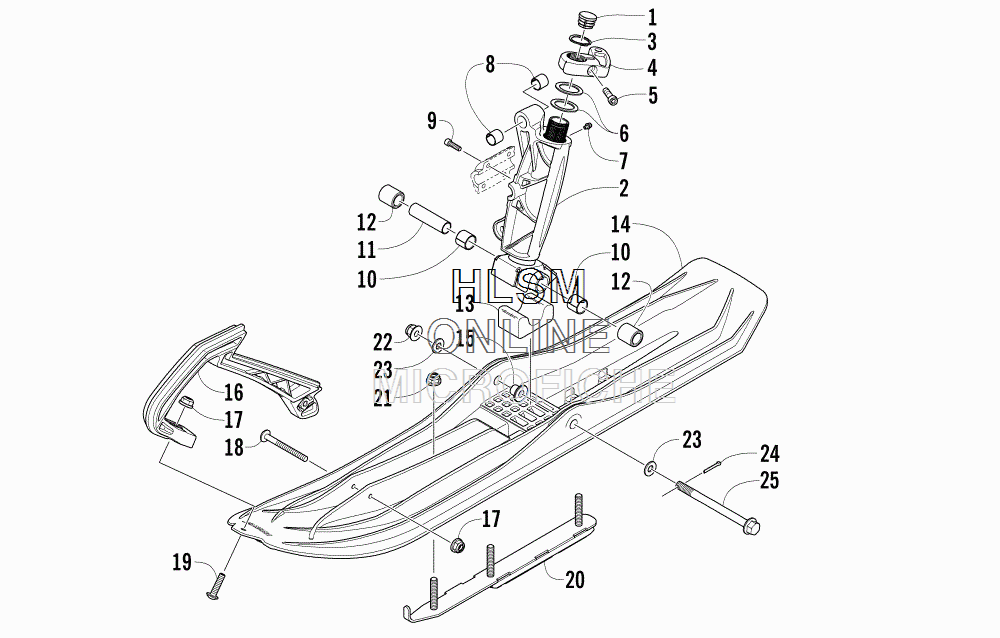

SKI AND SPINDLE ASSEMBLY для Arctic Cat BEARCAT 2000 XT (INTERNATIONAL) (BLUE) [S2015BCDWTOSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0623-831 CAP, SPINDLE
    CAP, SPINDLE
  • 2
    2703-372 SPINDLE, STEERING - RIGHT - (BLACK) (INC. 3-10)
    SPINDLE, STEERING - RIGHT - (BLACK) (INC. 3-10)
  • 2
    2703-373 SPINDLE, STEERING - LEFT - (BLACK) (INC. 3-10)
    SPINDLE, STEERING - LEFT - (BLACK) (INC. 3-10)
  • 3
    0623-796 ......RING, RETAINING
    ......RING, RETAINING
  • 4
    4706-272 ...ARM, SPINDLE - RIGHT (BLACK)
    ...ARM, SPINDLE - RIGHT (BLACK)
  • 4
    4707-273 ...ARM, SPINDLE - LEFT (BLACK)
    ...ARM, SPINDLE - LEFT (BLACK)
  • 5
    0623-872 ......SCREW, CAP
    ......SCREW, CAP
  • 6
    2603-382 ......WASHER, THRUST
    ......WASHER, THRUST
  • 7
    1623-654 ......FITTING, GREASE - 1/4-28 STR-THREAD FORMING
    ......FITTING, GREASE - 1/4-28 STR-THREAD FORMING
  • 8
    1603-895 ......BEARING
    ......BEARING
  • 9
    1623-582 ......SCREW, CAP
    ......SCREW, CAP
  • 10
    0603-158 ......BEARING
    ......BEARING
  • 11
    2603-730 AXLE, SPINDLE
    AXLE, SPINDLE
  • 12
    2603-731 SPACER
    SPACER
  • 13
    0603-036 DAMPER, SKI
    DAMPER, SKI
  • 14
    2603-729 SKI, PLASTIC - BLACK
    SKI, PLASTIC - BLACK
  • 15
    2603-746 INSERT
    INSERT
  • 16
    2603-950 HANDLE, PLASTIC - (BLACK)
    HANDLE, PLASTIC - (BLACK)
  • 17
    8427-602 NUT, LOCK
    NUT, LOCK
  • 18
    8476-650 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    2703-599 SKAG,SPLIT-LEFT-4"-3 BOLT-3.12"-PTD BLK
    SKAG,SPLIT-LEFT-4"-3 BOLT-3.12"-PTD BLK
  • 20
    2703-598 SKAG,SPLIT-RIGHT-4"-3 BOLT-.312"-PTD BLK
    SKAG,SPLIT-RIGHT-4"-3 BOLT-.312"-PTD BLK
  • 21
    8047-486 NUT, LOCK
    NUT, LOCK
  • 22
    0423-744 NUT, LOCK
    NUT, LOCK
  • 23
    8050-282 WASHER
    WASHER
  • 24
    0123-458 PIN, COTTER
    PIN, COTTER
  • 25
    1623-718 SCREW, CAP
    SCREW, CAP
