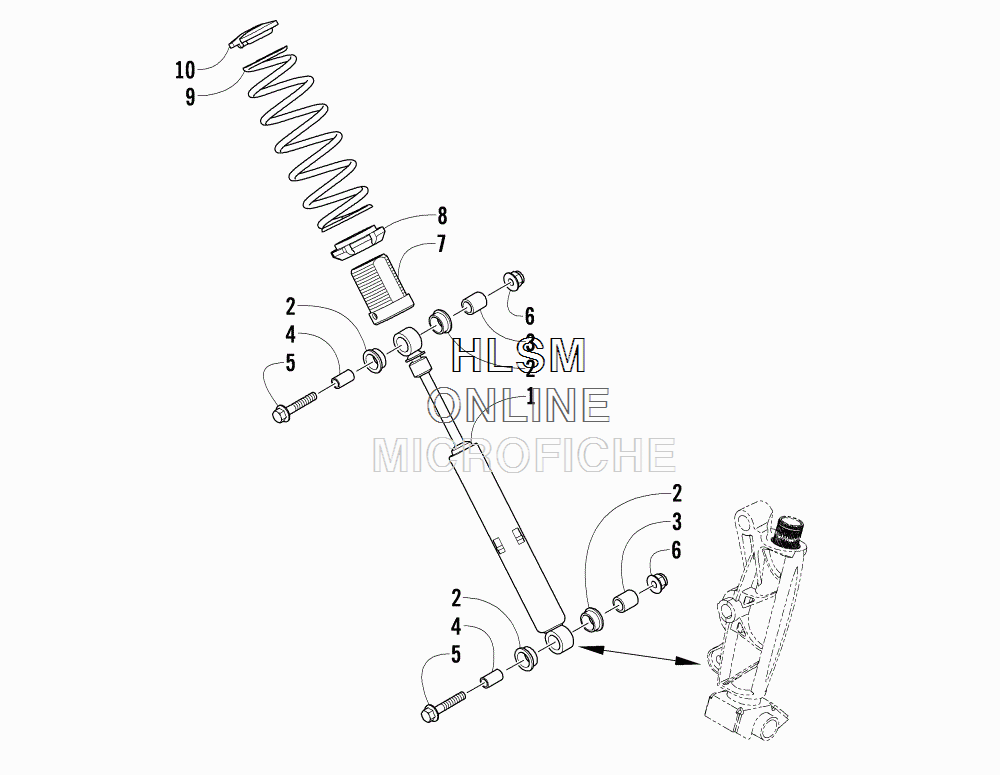

FRONT SHOCK ABSORBER ASSEMBLY для Arctic Cat BEARCAT 2000 XT (INTERNATIONAL) (BLUE) [S2015BCDWTOSL] - 2015 года выпуска
-
№АртикулНазвание
-
12603-836 SHOCK, SKI (INC. 2-3)SHOCK, SKI (INC. 2-3)
-
21604-262 ...BUSHING...BUSHING
-
31604-397 ...SLEEVE, EYELET - INNER - .950...SLEEVE, EYELET - INNER - .950
-
43604-109 SLEEVESLEEVE
-
58408-055 SCREW, CAPSCREW, CAP
-
68427-002 NUT, LOCKNUT, LOCK
-
70603-147 SLEEVE, THREADEDSLEEVE, THREADED
-
80603-259 NUT, RETAINERNUT, RETAINER
-
92703-754 SPRING, COMPRESSION (WHITE)SPRING, COMPRESSION (WHITE)
-
101603-889 RETAINER, SPRINGRETAINER, SPRING
