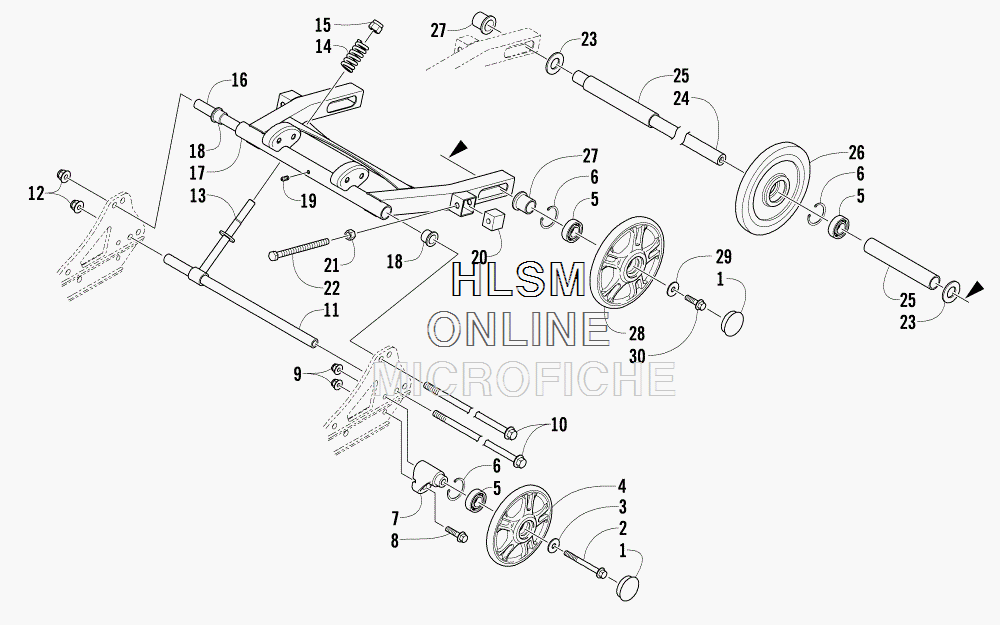

ARTICULATING SKID FRAME ASSEMBLY для Arctic Cat BEARCAT 2000 XT (INTERNATIONAL) (BLUE) [S2015BCDWTOSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    1604-952 CAP, IDLER WHEEL
    CAP, IDLER WHEEL
  • 2
    8408-880 SCREW, CAP
    SCREW, CAP
  • 3
    8450-133 WASHER
    WASHER
  • 4
    3604-299 WHEEL, IDLER - (WHITE) (INC. 5-6)
    WHEEL, IDLER - (WHITE) (INC. 5-6)
  • 5
    3604-033 .........BEARING
    .........BEARING
  • 6
    0623-946 .........RING, RETAINING
    .........RING, RETAINING
  • 7
    3604-004 BLOCK, MOUNTING - IDLER WHEEL
    BLOCK, MOUNTING - IDLER WHEEL
  • 8
    8408-830 SCREW, CAP
    SCREW, CAP
  • 9
    8427-802 NUT, LOCK
    NUT, LOCK
  • 10
    2623-078 SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI
    SCREW,CAP-HFH-M10X1.25X373 CL10.9-RIE SI
  • 11
    3604-463 AXLE
    AXLE
  • 12
    8427-002 NUT, LOCK
    NUT, LOCK
  • 13
    1704-958 ROD, ADJUSTER
    ROD, ADJUSTER
  • 14
    1704-785 SPRING
    SPRING
  • 15
    1623-965 NUT, LOCK
    NUT, LOCK
  • 16
    3604-429 AXLE
    AXLE
  • 17
    1704-956 ARM, SWING (INC. 18-19)
    ARM, SWING (INC. 18-19)
  • 18
    0104-386 ...BUSHING
    ...BUSHING
  • 19
    1623-010 ...FITTING, GREASE
    ...FITTING, GREASE
  • 20
    3604-427 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 21
    8042-486 NUT
    NUT
  • 22
    0623-123 SCREW, CAP
    SCREW, CAP
  • 23
    0623-921 WASHER
    WASHER
  • 24
    3604-450 AXLE, REAR WHEEL
    AXLE, REAR WHEEL
  • 25
    3604-451 SPACER
    SPACER
  • 26
    3604-049 WHEEL,IDL-(6.38 W.787")ID BLK (NO SPOKE) (INC. 5-6)
    WHEEL,IDL-(6.38 W.787")ID BLK (NO SPOKE) (INC. 5-6)
  • 27
    3604-503 BUSHING, ADJUSTER
    BUSHING, ADJUSTER
  • 28
    3604-587 WHEEL, IDLER (WHITE) (INC. 5-6)
    WHEEL, IDLER (WHITE) (INC. 5-6)
  • 29
    0623-664 WASHER
    WASHER
  • 30
    8408-831 SCREW, CAP
    SCREW, CAP
