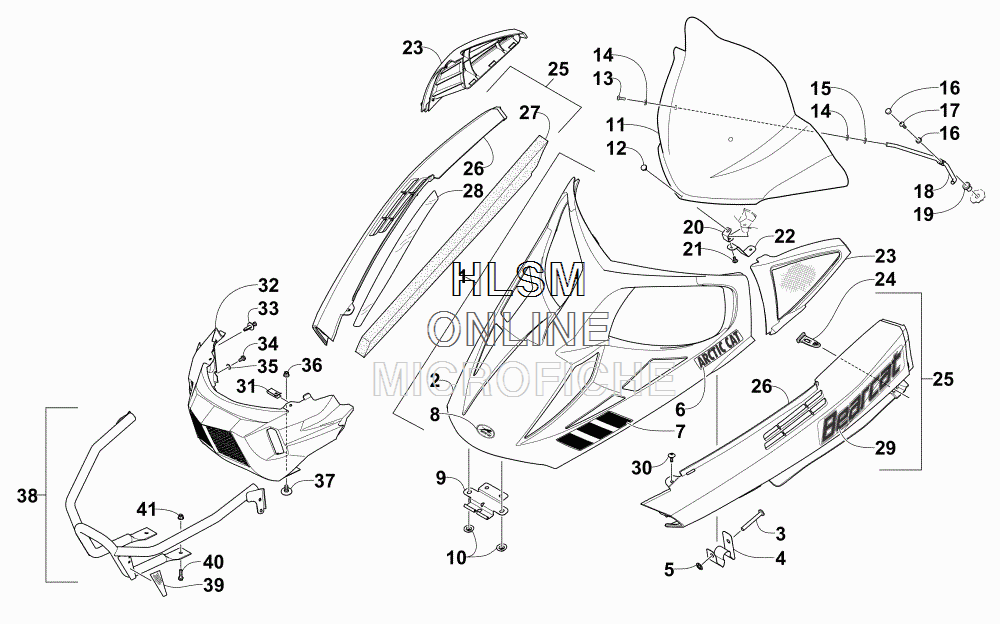

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 2000 XT (INTERNATIONAL) (BLUE) [S2015BCDWTOSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-112 HOOD W/DECALS - (WHITE) (INC. 2-8)
    HOOD W/DECALS - (WHITE) (INC. 2-8)
  • 2
    7800-956 ...HOOD W/O DECALS - (WHITE) (INC. 3-5)
    ...HOOD W/O DECALS - (WHITE) (INC. 3-5)
  • 3
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 4
    5706-084 ...CLIP, HOOD HOLD-DOWN - RIGHT
    ...CLIP, HOOD HOLD-DOWN - RIGHT
  • 4
    5706-085 ...CLIP, HOOD HOLD-DOWN - LEFT
    ...CLIP, HOOD HOLD-DOWN - LEFT
  • 5
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 6
    0621-572 DECAL, "ARCTIC CAT"
    DECAL, "ARCTIC CAT"
  • 7
    1621-246 DECAL, HOOD - RIGHT
    DECAL, HOOD - RIGHT
  • 7
    1621-247 DECAL, HOOD - LEFT
    DECAL, HOOD - LEFT
  • 8
    9611-751 DECAL, "ARCTIC CAT"
    DECAL, "ARCTIC CAT"
  • 9
    6606-027 BRACKET, HINGE
    BRACKET, HINGE
  • 10
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 11
    6606-278 WINDSHIELD
    WINDSHIELD
  • 12
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 13
    1623-902 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    1623-837 WASHER, RUBBER
    WASHER, RUBBER
  • 15
    8050-242 WASHER
    WASHER
  • 16
    0124-054 CAP, SNAP W/ WASHER
    CAP, SNAP W/ WASHER
  • 17
    0623-121 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    5706-073 SUPPORT, WINDSHIELD
    SUPPORT, WINDSHIELD
  • 19
    0623-845 NUT, EXPANSION
    NUT, EXPANSION
  • 20
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 21
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 22
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 23
    5606-940 BEZEL, INTAKE - RIGHT - (WHITE)
    BEZEL, INTAKE - RIGHT - (WHITE)
  • 23
    5606-941 BEZEL, INTAKE - LEFT - (WHITE)
    BEZEL, INTAKE - LEFT - (WHITE)
  • 24
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 25
    4718-516 SPAR, FRONT W/DECALS - RIGHT - (BLUE) (INC. 26-29)
    SPAR, FRONT W/DECALS - RIGHT - (BLUE) (INC. 26-29)
  • 26
    3718-886 ......SPAR, FRONT W/O DECALS - RIGHT - (BLUE) (INC. 27)
    ......SPAR, FRONT W/O DECALS - RIGHT - (BLUE) (INC. 27)
  • 27
    0617-656 ............FOAM, FRONT SPAR - RIGHT
    ............FOAM, FRONT SPAR - RIGHT
  • 28
    4606-934 ...FOIL, SPAR - RIGHT
    ...FOIL, SPAR - RIGHT
  • 29
    1621-241 ......DECAL, FRONT SPAR
    ......DECAL, FRONT SPAR
  • 25
    4718-517 SPAR, FRONT W/DECALS - LEFT - (BLUE) (INC. 26-27 AND 29)
    SPAR, FRONT W/DECALS - LEFT - (BLUE) (INC. 26-27 AND 29)
  • 26
    3718-887 SPAR, FRONT W/O DECALS - LEFT - (BLUE) (INC. 27)
    SPAR, FRONT W/O DECALS - LEFT - (BLUE) (INC. 27)
  • 27
    0617-657 FOAM, FRONT SPAR - LEFT
    FOAM, FRONT SPAR - LEFT
  • 30
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 31
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 32
    5606-725 FASCIA, FRONT - (BLUE)
    FASCIA, FRONT - (BLUE)
  • 33
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 34
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 35
    8053-242 WASHER, EXTERNAL TOOTH LOCK - 5/16
    WASHER, EXTERNAL TOOTH LOCK - 5/16
  • 36
    8427-602 NUT, LOCK
    NUT, LOCK
  • 37
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 38
    4706-961 BUMPER, FRONT - BLACK (INC. 39)
    BUMPER, FRONT - BLACK (INC. 39)
  • 39
    9611-386 ...DECAL, REFLECTOR - RIGHT - (AMBER)
    ...DECAL, REFLECTOR - RIGHT - (AMBER)
  • 39
    9611-387 ...DECAL, REFLECTOR - LEFT - (AMBER)
    ...DECAL, REFLECTOR - LEFT - (AMBER)
  • 40
    8408-025 SCREW, CAP
    SCREW, CAP
  • 41
    8427-002 NUT, LOCK
    NUT, LOCK
