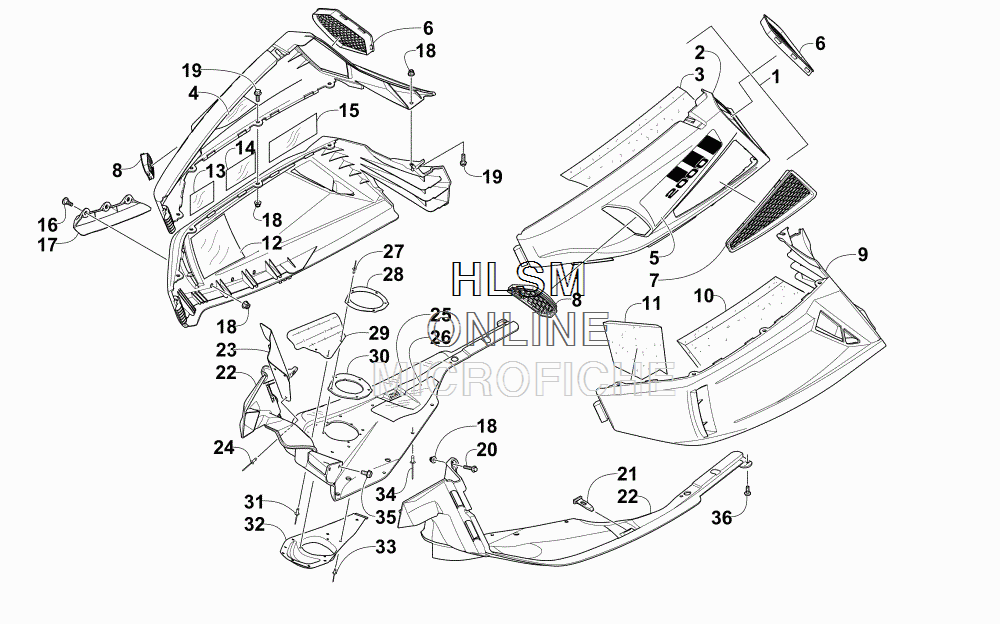

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat BEARCAT 2000 XT (BLUE) [S2015BCDWTUSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-932 PANEL, SIDE - UPPER W/DECALS - RIGHT - (WHITE) (INC. 2-5)
    PANEL, SIDE - UPPER W/DECALS - RIGHT - (WHITE) (INC. 2-5)
  • 2
    2718-356 ...PANEL, SIDE - UPPER W/O DECALS - RIGHT - (WHITE) (INC. 3-4)
    ...PANEL, SIDE - UPPER W/O DECALS - RIGHT - (WHITE) (INC. 3-4)
  • 3
    0617-562 ......FOAM, UPPER SIDE PANEL - RIGHT
    ......FOAM, UPPER SIDE PANEL - RIGHT
  • 4
    0637-318 ......KIT, UPDATE - PROTECTIVE FOIL
    ......KIT, UPDATE - PROTECTIVE FOIL
  • 5
    1621-268 ...DECAL, UPPER SIDE PANEL - RIGHT
    ...DECAL, UPPER SIDE PANEL - RIGHT
  • 1
    4718-933 PANEL, SIDE - UPPER W/DECALS - LEFT - (WHITE) (INC. 2-3 AND 5)
    PANEL, SIDE - UPPER W/DECALS - LEFT - (WHITE) (INC. 2-3 AND 5)
  • 2
    2718-801 ...PANEL, SIDE - UPPER W/O DECALS - LEFT - (WHITE) (INC. 3)
    ...PANEL, SIDE - UPPER W/O DECALS - LEFT - (WHITE) (INC. 3)
  • 3
    0617-057 ......FOAM, UPPER SIDE PANEL - LEFT
    ......FOAM, UPPER SIDE PANEL - LEFT
  • 5
    1621-269 ...DECAL, UPPER SIDE PANEL - LEFT
    ...DECAL, UPPER SIDE PANEL - LEFT
  • 6
    4606-650 VENT, UPPER PANEL - REAR RIGHT - MOLD - (BLACK)
    VENT, UPPER PANEL - REAR RIGHT - MOLD - (BLACK)
  • 6
    4606-651 VENT, UPPER PANEL - REAR LEFT - MOLD - (BLACK)
    VENT, UPPER PANEL - REAR LEFT - MOLD - (BLACK)
  • 7
    5606-185 VENT, UPPER SIDE PANEL - CENTER - LEFT
    VENT, UPPER SIDE PANEL - CENTER - LEFT
  • 8
    4606-662 VENT, UPPER SIDE PANEL - RIGHT - (BLACK)
    VENT, UPPER SIDE PANEL - RIGHT - (BLACK)
  • 8
    4606-663 VENT, UPPER SIDE PANEL - LEFT - (BLACK)
    VENT, UPPER SIDE PANEL - LEFT - (BLACK)
  • 9
    2718-274 PANEL, SIDE - LOWER - RIGHT - (BLACK) (INC. 10-12)
    PANEL, SIDE - LOWER - RIGHT - (BLACK) (INC. 10-12)
  • 10
    0617-568 ...FOAM, LOWER SIDE PANEL - REAR RIGHT
    ...FOAM, LOWER SIDE PANEL - REAR RIGHT
  • 11
    0617-564 ...FOAM, LOWER SIDE PANEL - FRONT RIGHT
    ...FOAM, LOWER SIDE PANEL - FRONT RIGHT
  • 12
    5606-548 ...FOIL, PROTECTIVE - RIGHT
    ...FOIL, PROTECTIVE - RIGHT
  • 9
    2718-349 PANEL, SIDE - LOWER - LEFT - (BLACK) (INC. 10-11)
    PANEL, SIDE - LOWER - LEFT - (BLACK) (INC. 10-11)
  • 10
    0617-567 ...FOAM, LOWER SIDE PANEL - REAR LEFT (19 MM THICK)
    ...FOAM, LOWER SIDE PANEL - REAR LEFT (19 MM THICK)
  • 11
    0617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT (19 MM THICK)
    ...FOAM, LOWER SIDE PANEL - FRONT - LEFT (19 MM THICK)
  • 13
    6606-219 FOIL, PROTECTIVE-127X191
    FOIL, PROTECTIVE-127X191
  • 14
    6606-218 FOIL, PROTECTIVE-102X152
    FOIL, PROTECTIVE-102X152
  • 15
    6606-220 FOIL, PROTECTIVE-127X343
    FOIL, PROTECTIVE-127X343
  • 16
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 17
    5606-404 DEFLECTOR, EXHAUST
    DEFLECTOR, EXHAUST
  • 18
    8427-602 NUT, LOCK
    NUT, LOCK
  • 19
    8408-620 SCREW, CAP
    SCREW, CAP
  • 20
    8408-635 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 22
    5706-172 PLATE, SKID - RIGHT
    PLATE, SKID - RIGHT
  • 22
    4706-073 PLATE, SKID - LEFT
    PLATE, SKID - LEFT
  • 23
    6606-423 SHIELD, HEAT
    SHIELD, HEAT
  • 24
    8061-506 RIVET
    RIVET
  • 25
    4606-798 FOIL, PROTECTIVE, OUTER SKID PLATE - RIGHT
    FOIL, PROTECTIVE, OUTER SKID PLATE - RIGHT
  • 26
    4606-797 FOIL, PROTECTIVE, CENTER SKID PLATE - RIGHT
    FOIL, PROTECTIVE, CENTER SKID PLATE - RIGHT
  • 27
    8060-510 RIVET
    RIVET
  • 28
    1712-348 PLATE, EXHAUST - OUTLET
    PLATE, EXHAUST - OUTLET
  • 29
    2612-268 SHIELD, HEAT
    SHIELD, HEAT
  • 30
    2612-287 SEAL, EXHAUST - OUTLET
    SEAL, EXHAUST - OUTLET
  • 31
    8061-508 RIVET
    RIVET
  • 32
    1712-501 SHIELD, HEAT - EXHAUST OUTLET - PAINTED
    SHIELD, HEAT - EXHAUST OUTLET - PAINTED
  • 33
    0623-778 RIVET
    RIVET
  • 34
    8061-708 RIVET
    RIVET
  • 35
    0623-966 SCREW, SELF-TAPPING M6 X 12 Z (TRI LOB)
    SCREW, SELF-TAPPING M6 X 12 Z (TRI LOB)
  • 36
    0423-538 SCREW, SELF-TAPPING M6 X 1 X 16 Z & B
    SCREW, SELF-TAPPING M6 X 1 X 16 Z & B
