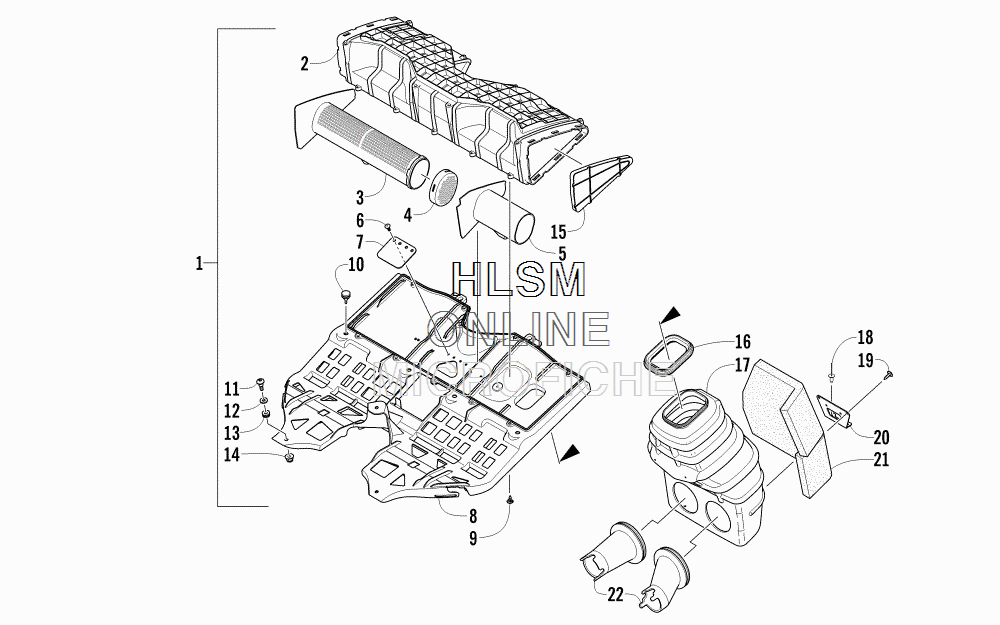

AIR SILENCER ASSEMBLY для Arctic Cat BEARCAT 2000 XT (BLUE) [S2015BCDWTUSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-980 INTAKE, SUPPORT - ASSEMBLY (INC. 2-9)
    INTAKE, SUPPORT - ASSEMBLY (INC. 2-9)
  • 2
    1670-732 ...INTAKE, SUPPORT - TOP
    ...INTAKE, SUPPORT - TOP
  • 3
    2670-240 ...RESONATOR, UPPER - PLENUM - RIGHT
    ...RESONATOR, UPPER - PLENUM - RIGHT
  • 4
    2670-255 ...CAP, UPPER RESONATOR
    ...CAP, UPPER RESONATOR
  • 5
    1670-853 ...RESONATOR, UPPER - PLENUM - LEFT
    ...RESONATOR, UPPER - PLENUM - LEFT
  • 6
    0623-165 ...CLIP, X-MAS TREE-5/32
    ...CLIP, X-MAS TREE-5/32
  • 7
    2670-091 ...CLOSE-OFF, INTAKE
    ...CLOSE-OFF, INTAKE
  • 8
    0770-885 ...INTAKE, SUPPORT - BOTTOM
    ...INTAKE, SUPPORT - BOTTOM
  • 9
    0623-784 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 10
    4606-276 GROMMET
    GROMMET
  • 11
    0423-356 SCREW, SHOULDER
    SCREW, SHOULDER
  • 12
    8050-212 WASHER
    WASHER
  • 13
    4606-275 GROMMET
    GROMMET
  • 14
    8427-602 NUT, LOCK
    NUT, LOCK
  • 15
    1670-831 COVER, TOP PLENUM - LEFT
    COVER, TOP PLENUM - LEFT
  • 16
    1670-942 SEAL, AIR SILENCER
    SEAL, AIR SILENCER
  • 17
    1670-941 SILENCER, AIR
    SILENCER, AIR
  • 18
    8060-686 RIVET
    RIVET
  • 19
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    5606-598 BRACKET, AIR SILENCER
    BRACKET, AIR SILENCER
  • 21
    0617-660 FOAM, AIR SILENCER
    FOAM, AIR SILENCER
  • 22
    1670-944 BOOT, AIR SILENCER
    BOOT, AIR SILENCER
