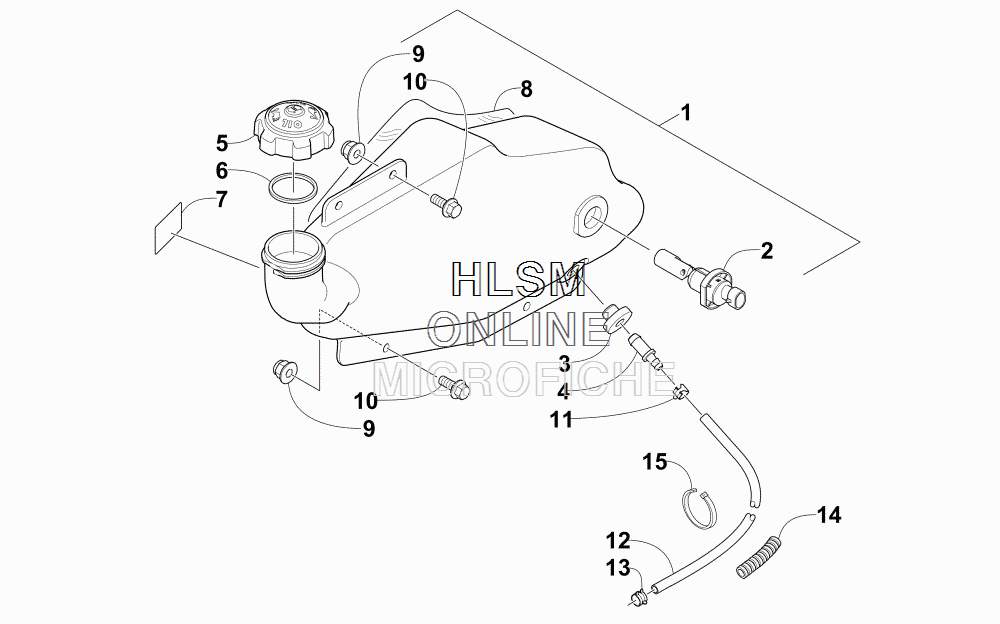

OIL TANK ASSEMBLY для Arctic Cat BEARCAT 2000 XT (BLUE) [S2015BCDWTUSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-909 TANK, OIL (INC. 2-8)
    TANK, OIL (INC. 2-8)
  • 2
    0609-915 ...SWITCH, LEVEL-OIL
    ...SWITCH, LEVEL-OIL
  • 3
    1670-325 ...GROMMET
    ...GROMMET
  • 4
    1670-481 ...FITTING, OIL TANK
    ...FITTING, OIL TANK
  • 5
    1670-365 ...CAP, VENTED- OIL IMPRINTED (INC. 6)
    ...CAP, VENTED- OIL IMPRINTED (INC. 6)
  • 6
    0109-733 ......GASKET, GAS TANK CAP
    ......GASKET, GAS TANK CAP
  • 7
    1611-564 ...DECAL, OIL TANK
    ...DECAL, OIL TANK
  • 8
    6606-185 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 9
    8427-602 NUT, LOCK
    NUT, LOCK
  • 10
    8408-620 SCREW, CAP
    SCREW, CAP
  • 11
    1623-042 CLAMP, 10MM
    CLAMP, 10MM
  • 12
    6101-009 HOSE, GASLINE - (50 FT)
    HOSE, GASLINE - (50 FT)
  • 12
    6101-001 HOSE, GASLINE - (100 FT)
    HOSE, GASLINE - (100 FT)
  • 13
    1623-351 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    0716-558 CONDUIT, PROTECTIVE - (10 FT)
    CONDUIT, PROTECTIVE - (10 FT)
  • 15
    0123-811 TIE, CABLE - (4 IN.)
    TIE, CABLE - (4 IN.)
