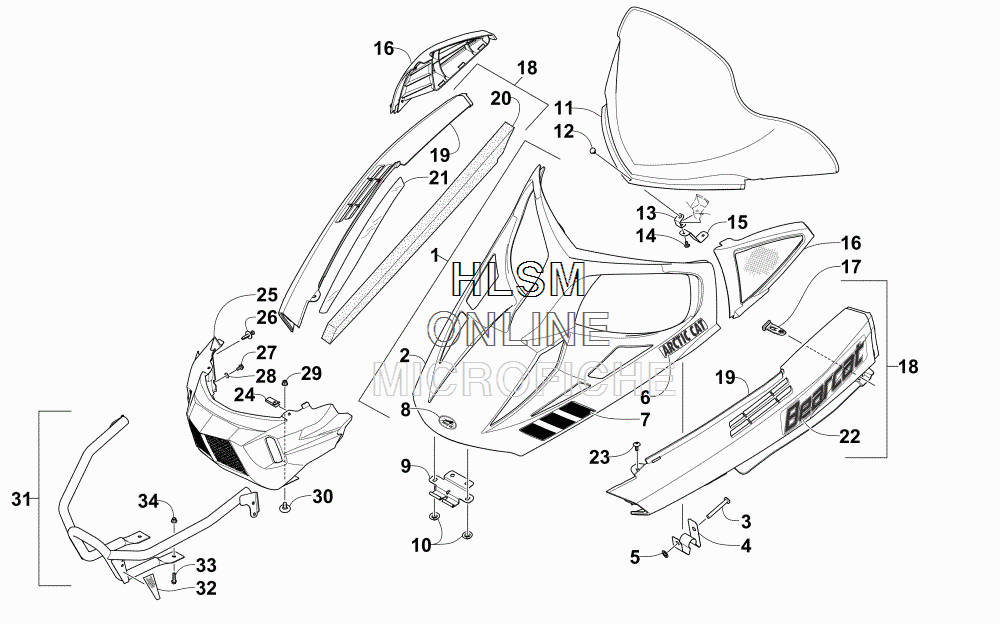

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat BEARCAT 2000 XT (BLUE) [S2015BCDWTUSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-112 HOOD W/DECALS - (WHITE) (INC. 2-8)
    HOOD W/DECALS - (WHITE) (INC. 2-8)
  • 2
    7800-956 ...HOOD W/O DECALS - (WHITE) (INC. 3-5)
    ...HOOD W/O DECALS - (WHITE) (INC. 3-5)
  • 3
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 4
    5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT
    ......CLIP, HOOD HOLD-DOWN - RIGHT
  • 4
    5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT
    ......CLIP, HOOD HOLD-DOWN - LEFT
  • 5
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 6
    0621-572 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 7
    1621-246 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 7
    1621-247 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 8
    9611-751 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 9
    6606-027 BRACKET, HINGE
    BRACKET, HINGE
  • 10
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 11
    5606-962 WINDSHIELD,HIGH-TINT
    WINDSHIELD,HIGH-TINT
  • 12
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 13
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 14
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 16
    5606-940 BEZEL, INTAKE - RIGHT - (WHITE)
    BEZEL, INTAKE - RIGHT - (WHITE)
  • 16
    5606-941 BEZEL, INTAKE - LEFT - (WHITE)
    BEZEL, INTAKE - LEFT - (WHITE)
  • 17
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 18
    4718-516 SPAR, FRONT W/DECALS - RIGHT - (BLUE) (INC. 19-22)
    SPAR, FRONT W/DECALS - RIGHT - (BLUE) (INC. 19-22)
  • 19
    3718-886 ...SPAR, FRONT W/O DECALS - RIGHT - (BLUE) (INC. 20)
    ...SPAR, FRONT W/O DECALS - RIGHT - (BLUE) (INC. 20)
  • 20
    0617-656 ......FOAM, FRONT SPAR - RIGHT
    ......FOAM, FRONT SPAR - RIGHT
  • 21
    4606-934 ...FOIL, SPAR - RIGHT
    ...FOIL, SPAR - RIGHT
  • 22
    1621-241 ......DECAL, FRONT SPAR
    ......DECAL, FRONT SPAR
  • 18
    4718-517 SPAR, FRONT W/DECALS - LEFT - (BLUE) (INC. 19-20 AND 22)
    SPAR, FRONT W/DECALS - LEFT - (BLUE) (INC. 19-20 AND 22)
  • 19
    3718-887 ...SPAR, FRONT W/O DECALS - LEFT - (BLUE) (INC. 20)
    ...SPAR, FRONT W/O DECALS - LEFT - (BLUE) (INC. 20)
  • 20
    0617-657 ......FOAM, FRONT SPAR - LEFT
    ......FOAM, FRONT SPAR - LEFT
  • 23
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 25
    5606-725 FASCIA, FRONT - (BLUE)
    FASCIA, FRONT - (BLUE)
  • 26
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 27
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    8053-242 WASHER, EXTERNAL TOOTH LOCK - 5/16
    WASHER, EXTERNAL TOOTH LOCK - 5/16
  • 29
    8427-602 NUT, LOCK
    NUT, LOCK
  • 30
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 31
    4706-961 BUMPER, FRONT - (BLACK) (INC. 32)
    BUMPER, FRONT - (BLACK) (INC. 32)
  • 32
    9611-386 ...DECAL, REFLECTOR - RIGHT - (AMBER)
    ...DECAL, REFLECTOR - RIGHT - (AMBER)
  • 32
    9611-387 ...DECAL, REFLECTOR - LEFT - (AMBER)
    ...DECAL, REFLECTOR - LEFT - (AMBER)
  • 33
    8408-025 SCREW, CAP
    SCREW, CAP
  • 34
    8427-002 NUT, LOCK
    NUT, LOCK
