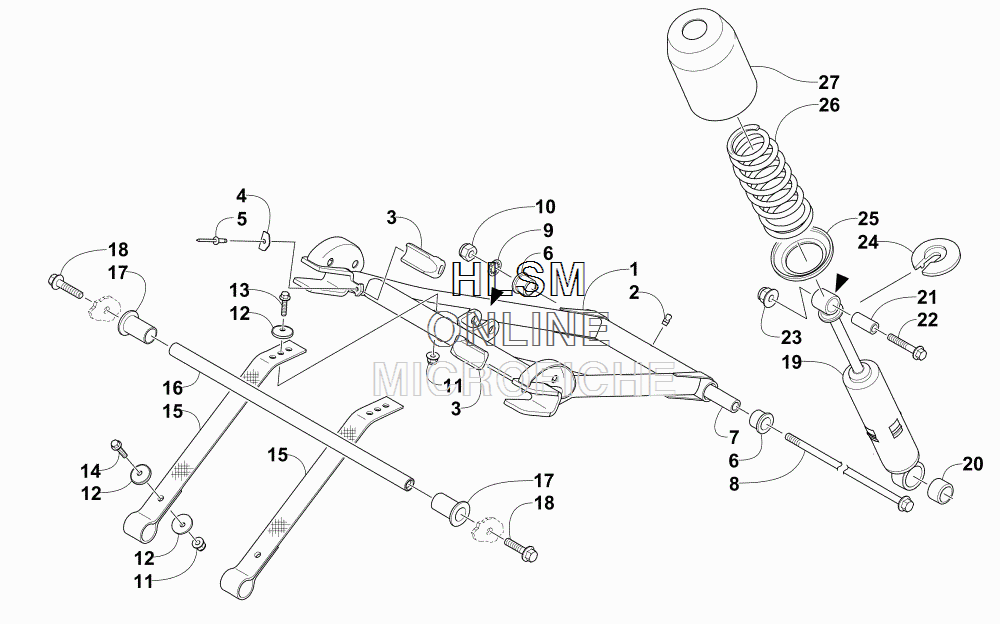

SUSPENSION REAR - FRONT ARM ASSEMBLY для Arctic Cat BEARCAT 2000 LT (INTERNATIONAL) (BLUE) [S2015BCDFCOSL] - 2015 года выпуска
-
№АртикулНазвание
-
11704-671 ARM, FRONT SUSPENSION - (BLACK) (INC. 2-6)ARM, FRONT SUSPENSION - (BLACK) (INC. 2-6)
-
21623-010 ...FITTING,GREASE-1/4-28 UNF-SELF THREAD...FITTING,GREASE-1/4-28 UNF-SELF THREAD
-
33604-141 ...BUMPER, FRONT SLIDER...BUMPER, FRONT SLIDER
-
43604-968 ...PLATE, RETAINING...PLATE, RETAINING
-
58060-708 ...RIVET,BLIND-DH SS66 (BLACK)...RIVET,BLIND-DH SS66 (BLACK)
-
60104-386 ...BUSHING,REAR ARM...BUSHING,REAR ARM
-
73604-272 AXLE, INNERAXLE, INNER
-
81423-064 BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)
-
91623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
108422-002 NUT,HEX-THK NYL M10X1.25 CL8 Z & YNUT,HEX-THK NYL M10X1.25 CL8 Z & Y
-
118427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
128450-109 WASHER,FLAT M6-6.87X25.4X2.32 Z & YWASHER,FLAT M6-6.87X25.4X2.32 Z & Y
-
138408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
-
148408-630 SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
-
153604-274 STRAP, LIMITERSTRAP, LIMITER
-
163604-234 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
173604-233 BUSHING,FRONT SLIDERBUSHING,FRONT SLIDER
-
188408-041 SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353
-
193604-334 SHOCK ABSORBERSHOCK ABSORBER
-
201604-791 BUSHING, SHOCK-.890ID X .800BUSHING, SHOCK-.890ID X .800
-
213604-273 AXLEAXLE
-
228408-050 SCREW,CAP-HFH M10X1.25X50 CL8.8 Z & YSCREW,CAP-HFH M10X1.25X50 CL8.8 Z & Y
-
238427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
-
241603-889 RETAINER, SPRINGRETAINER, SPRING
-
252603-719 RETAINER, SPRINGRETAINER, SPRING
-
261704-236 SPRING, COMPRESSION - (BLACK)SPRING, COMPRESSION - (BLACK)
-
270604-790 COVER,SUSPENSION SPRING (SHORT)COVER,SUSPENSION SPRING (SHORT)
