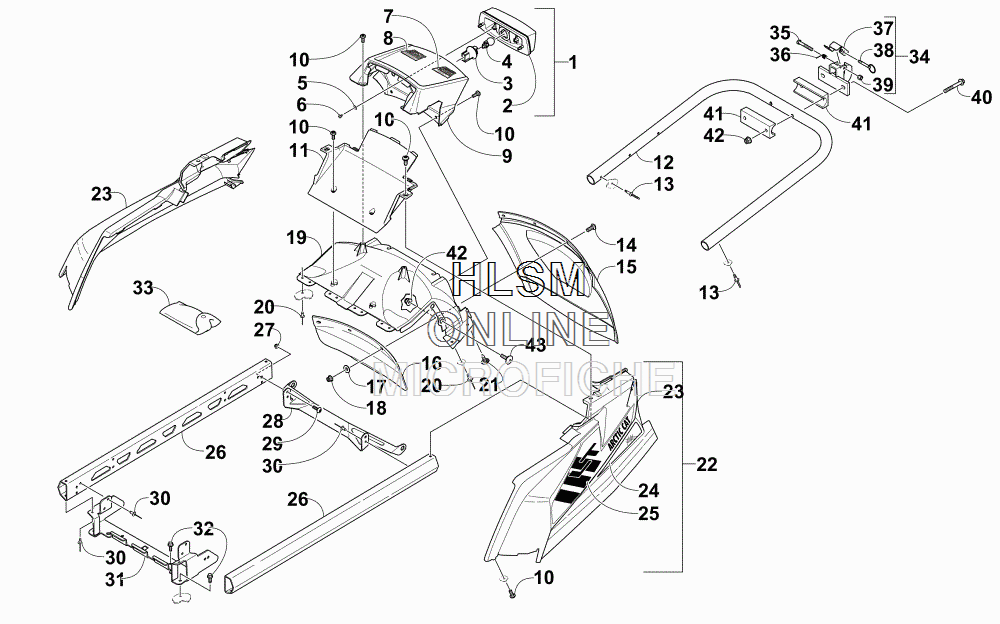

REAR BUMPER- HITCH- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat BEARCAT 2000 LT (INTERNATIONAL) (BLUE) [S2015BCDFCOSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    0509-022 TAILLIGHT W/SOCKET - ASSEMBLY (INC. 2-4)
    TAILLIGHT W/SOCKET - ASSEMBLY (INC. 2-4)
  • 2
    0509-025 ...HOUSING,TAIL LIGHT-ASSEMBLY
    ...HOUSING,TAIL LIGHT-ASSEMBLY
  • 3
    0409-057 ...SOCKET, TAILLIGHT
    ...SOCKET, TAILLIGHT
  • 4
    0409-056 ...BULB, TAILLIGHT
    ...BULB, TAILLIGHT
  • 5
    8050-127 WASHER,FLAT- #8 X .375 X .049 Z & Y
    WASHER,FLAT- #8 X .375 X .049 Z & Y
  • 6
    0623-257 SCREW,SELF TAP-HWH #8X1/2 TYPE A
    SCREW,SELF TAP-HWH #8X1/2 TYPE A
  • 7
    7611-433 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 8
    7611-432 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 9
    5606-063 HOOD, TAILLIGHT
    HOOD, TAILLIGHT
  • 10
    1623-661 SCREW,PT THD-TSTRH K60-2.69X16MM RIE (BLACK)
    SCREW,PT THD-TSTRH K60-2.69X16MM RIE (BLACK)
  • 11
    5606-065 PANEL, ACCESS - TAILLIGHT
    PANEL, ACCESS - TAILLIGHT
  • 12
    1707-318 BUMPER, REAR (BLACK)
    BUMPER, REAR (BLACK)
  • 13
    1623-241 RIVET,3/16 HUCK-M6
    RIVET,3/16 HUCK-M6
  • 14
    1623-782 SCREW,MACH-TSTRH M6X1.0X20 RIE (BLACK)
    SCREW,MACH-TSTRH M6X1.0X20 RIE (BLACK)
  • 15
    5606-254 SNOWFLAP (BLACK)
    SNOWFLAP (BLACK)
  • 16
    3606-776 SUPPORT, SNOWFLAP
    SUPPORT, SNOWFLAP
  • 17
    0623-184 WASHER,FLAT 1/4 X 1.0 Z & Y
    WASHER,FLAT 1/4 X 1.0 Z & Y
  • 18
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 19
    5606-056 CLOSE-OFF, TUNNEL
    CLOSE-OFF, TUNNEL
  • 20
    8061-506 RIVET,BLIND-LF SS54 (BLACK)
    RIVET,BLIND-LF SS54 (BLACK)
  • 21
    0623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
    SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
  • 22
    4718-143 FENDER, REAR W/DECAL - LEFT (INC. 23-25)
    FENDER, REAR W/DECAL - LEFT (INC. 23-25)
  • 22
    4718-142 FENDER, REAR W/DECAL - RIGHT (INC. 23-25)
    FENDER, REAR W/DECAL - RIGHT (INC. 23-25)
  • 23
    2718-489 ...FENDER, REAR - LEFT (INC. 24)
    ...FENDER, REAR - LEFT (INC. 24)
  • 23
    2718-488 ...FENDER, REAR - RIGHT (INC. 24)
    ...FENDER, REAR - RIGHT (INC. 24)
  • 24
    8611-305 ......DECAL, REFLECTOR - LEFT - (RED)
    ......DECAL, REFLECTOR - LEFT - (RED)
  • 24
    8611-304 ......DECAL, REFLECTOR - RIGHT - (RED)
    ......DECAL, REFLECTOR - RIGHT - (RED)
  • 25
    1621-271 ...DECAL, REAR FENDER - LEFT
    ...DECAL, REAR FENDER - LEFT
  • 25
    1621-270 ...DECAL, REAR FENDER - RIGHT
    ...DECAL, REAR FENDER - RIGHT
  • 26
    4706-482 RAIL, RACK
    RAIL, RACK
  • 27
    8427-502 NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
  • 28
    3706-989 BRACKET, MOUNTING - RACK RAIL - REAR
    BRACKET, MOUNTING - RACK RAIL - REAR
  • 29
    8470-516 SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
    SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
  • 30
    8060-686 RIVET,BLIND-DH SS64 ZINC
    RIVET,BLIND-DH SS64 ZINC
  • 31
    4706-017 BRACKET, MOUNTING - RACK RAIL - FRONT
    BRACKET, MOUNTING - RACK RAIL - FRONT
  • 32
    8408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
  • 33
    4706-072 KIT, TOOL
    KIT, TOOL
  • 34
    0706-727 HITCH, PINTAL - ASSEMBLY - SWEDISH (INC. 35-39)
    HITCH, PINTAL - ASSEMBLY - SWEDISH (INC. 35-39)
  • 35
    8002-046 ...SCREW,CAP-HH 1/4-20 X1.75 G5 Z & Y
    ...SCREW,CAP-HH 1/4-20 X1.75 G5 Z & Y
  • 36
    0623-335 ...SPRING,TRAILER HITCH LATCH
    ...SPRING,TRAILER HITCH LATCH
  • 37
    2706-229 ...LATCH, HITCH - PAINTED (BLACK)
    ...LATCH, HITCH - PAINTED (BLACK)
  • 38
    0623-213 ...PIN,HITCH-COTTERLESS-SWEDISH
    ...PIN,HITCH-COTTERLESS-SWEDISH
  • 39
    8040-366 ...NUT,HEX LOCK-NYL 1/4-20 Z & Y
    ...NUT,HEX LOCK-NYL 1/4-20 Z & Y
  • 40
    8408-860 SCREW,CAP-HFH M8X1.25X60 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X60 CL8.8 Z & Y
  • 41
    3706-896 BRACKET, MOUNTING - HITCH
    BRACKET, MOUNTING - HITCH
  • 42
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 43
    1623-812 SCREW,SHOULDER-M8X1.25X23 CL8.8
    SCREW,SHOULDER-M8X1.25X23 CL8.8
