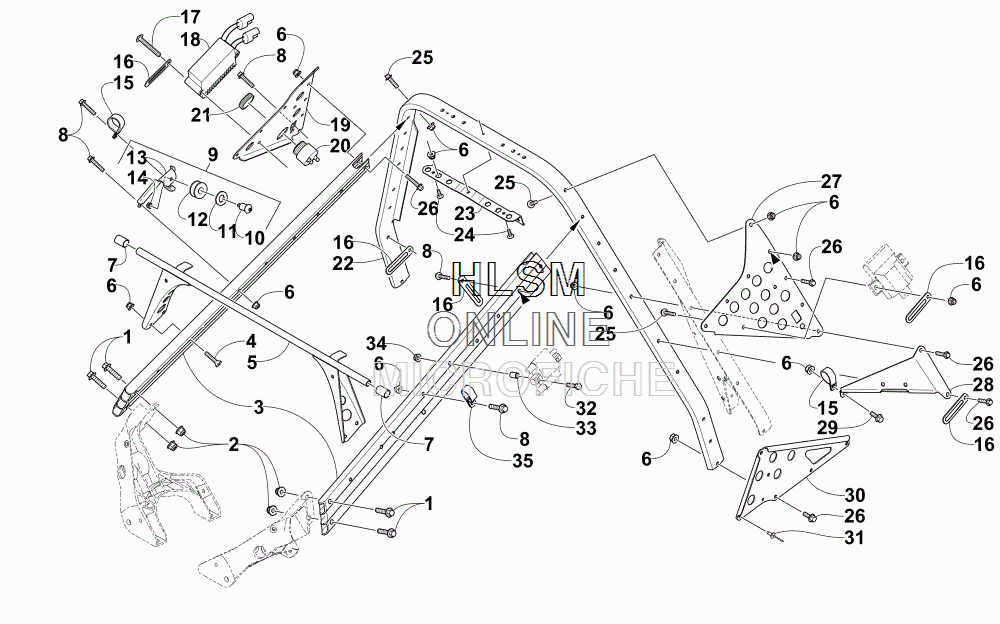

STEERING SUPPORT ASSEMBLY для Arctic Cat BEARCAT 2000 LT (INTERNATIONAL) (BLUE) [S2015BCDFCOSL] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    8408-840 SCREW,CAP-HFH M8X1.25X40 CL8.8 Z & Y
    SCREW,CAP-HFH M8X1.25X40 CL8.8 Z & Y
  • 2
    8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
  • 3
    0607-919 FRAME, UPPER - FRONT
    FRAME, UPPER - FRONT
  • 4
    1623-776 SCREW,MACH-HSFH-M6X1.0X45 CL10.9 Z & Y
    SCREW,MACH-HSFH-M6X1.0X45 CL10.9 Z & Y
  • 5
    4706-356 BRACKET, SUPPORT - HEADLIGHT
    BRACKET, SUPPORT - HEADLIGHT
  • 6
    8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
  • 7
    1623-900 SPACER,HOOD CLIP-12.7X15.9X25.4
    SPACER,HOOD CLIP-12.7X15.9X25.4
  • 8
    8408-635 SCREW,CAP-HFH M6X1.0X35 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X35 CL8.8 Z & Y
  • 9
    3706-955 BRACKET, RECOIL - ASSEMBLY (INC. 10-14)
    BRACKET, RECOIL - ASSEMBLY (INC. 10-14)
  • 10
    0423-329 ...SCREW,SHLDR-TSH-T30X M6(12.7DX 19.0)
    ...SCREW,SHLDR-TSH-T30X M6(12.7DX 19.0)
  • 11
    8050-337 ...WASHER,FLAT- 1/2 X 1.062 X .095 Z & Y
    ...WASHER,FLAT- 1/2 X 1.062 X .095 Z & Y
  • 12
    5606-160 ...PULLEY, RECOIL
    ...PULLEY, RECOIL
  • 13
    5606-157 ...BRACKET, RECOIL
    ...BRACKET, RECOIL
  • 14
    0624-250 ...NUT,LOCK-NSL M6-1.0 SS
    ...NUT,LOCK-NSL M6-1.0 SS
  • 15
    1623-722 CLAMP,CABLE-7/8 INSUL-1/4" MTG
    CLAMP,CABLE-7/8 INSUL-1/4" MTG
  • 16
    1623-984 CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
    CLAMP, WIRE - 76.14MM LG W/6.25 HOLE
  • 17
    8476-650 SCREW,MACH-TSTRH M6X1.0X50 Z & Y
    SCREW,MACH-TSTRH M6X1.0X50 Z & Y
  • 18
    0630-321 REGULATOR/RECTIFIER
    REGULATOR/RECTIFIER
  • 19
    0607-922 GUSSET, STEERING SUPPORT - RIGHT
    GUSSET, STEERING SUPPORT - RIGHT
  • 20
    0630-243 ALARM,REVERSE-DC ONLY (INC. 21)
    ALARM,REVERSE-DC ONLY (INC. 21)
  • 21
    0630-017 ...RING,RETAINING-REV ALARM
    ...RING,RETAINING-REV ALARM
  • 22
    0605-949 SUPPORT, STEERING
    SUPPORT, STEERING
  • 23
    5606-132 PLATE,NUT-STEERING SUPPORT-4 STROKE
    PLATE,NUT-STEERING SUPPORT-4 STROKE
  • 24
    0623-574 SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z
    SCREW,SELF TAP-TSTRH 10-24 X 5/8 TP F Z
  • 25
    8408-625 SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X25 CL8.8 Z & Y
  • 26
    8408-630 SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X30 CL8.8 Z & Y
  • 27
    0607-903 GUSSET, STEERING SUPPORT - LEFT
    GUSSET, STEERING SUPPORT - LEFT
  • 28
    4606-908 BRACKET, SUPPORT - BELT GUARD
    BRACKET, SUPPORT - BELT GUARD
  • 29
    8408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
    SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
  • 30
    3606-744 BRACKET, FOOTREST - RIGHT
    BRACKET, FOOTREST - RIGHT
  • 30
    3606-745 BRACKET, FOOTREST - LEFT
    BRACKET, FOOTREST - LEFT
  • 31
    8060-686 RIVET,BLIND-DH SS64 ZINC
    RIVET,BLIND-DH SS64 ZINC
  • 32
    8402-560 SCREW, CAP-HH-M5X.8X60
    SCREW, CAP-HH-M5X.8X60
  • 33
    1623-612 SPACER,9.0 OD X 6.4 ID X 10.5MM
    SPACER,9.0 OD X 6.4 ID X 10.5MM
  • 34
    8427-502 NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M5X.8 CL8 Z & Y
  • 35
    1623-762 CLAMP, ROUTING
    CLAMP, ROUTING
