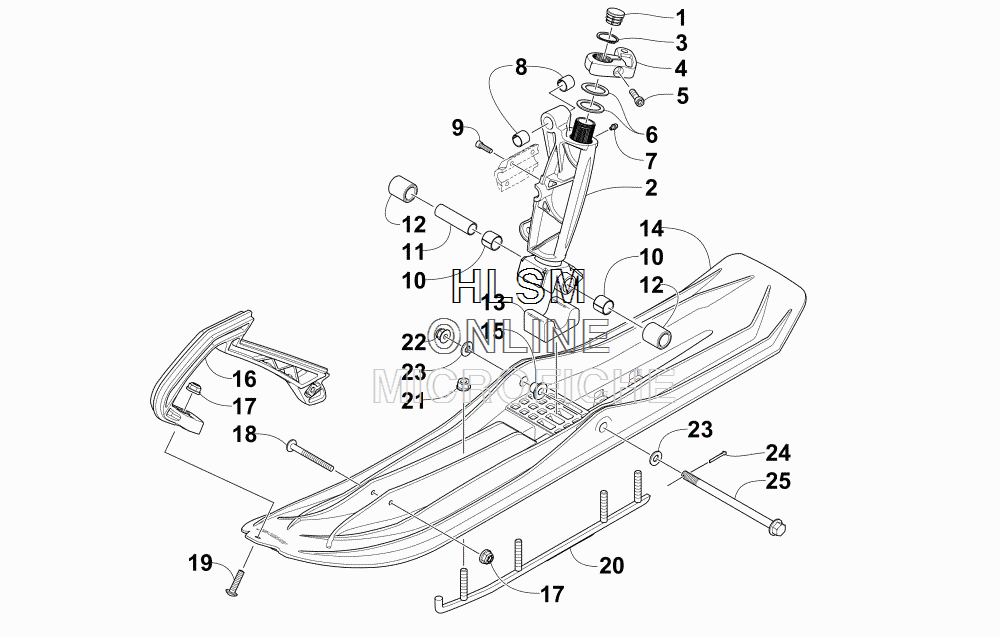

SKI AND SPINDLE ASSEMBLY для Arctic Cat BEARCAT 2000 LT (INTERNATIONAL) (BLUE) [S2015BCDFCOSL] - 2015 года выпуска
-
№АртикулНазвание
-
10623-831 CAP, SPINDLECAP, SPINDLE
-
22703-372 SPINDLE, STEERING - RIGHT - (BLACK) (INC. 3-10)SPINDLE, STEERING - RIGHT - (BLACK) (INC. 3-10)
-
22703-373 SPINDLE, STEERING - LEFT - (BLACK) (INC. 3-10)SPINDLE, STEERING - LEFT - (BLACK) (INC. 3-10)
-
30623-796 ...SNAP RING,EXTL-BOWED-1 1/8 DIA...SNAP RING,EXTL-BOWED-1 1/8 DIA
-
44706-116 ...ARM,SPINDLE-RH-PLAT...ARM,SPINDLE-RH-PLAT
-
44706-117 ...ARM,SPINDLE-LH-PLAT...ARM,SPINDLE-LH-PLAT
-
50623-872 ...SCREW,CAP-HSH-M8X1.25X30 GR 12.9 (BLACK)...SCREW,CAP-HSH-M8X1.25X30 GR 12.9 (BLACK)
-
62603-382 ...WASHER,THRUST-SPINDLE WELD'T-.030...WASHER,THRUST-SPINDLE WELD'T-.030
-
71623-654 ...FITTING, GREASE - 1/4-28 STR-THREAD FORMING...FITTING, GREASE - 1/4-28 STR-THREAD FORMING
-
81603-895 ...BEARING, 10DU10-FRONT SUSPENSION...BEARING, 10DU10-FRONT SUSPENSION
-
91623-582 ...SCREW, CAP-HSH M6 X1 X 20 CL 12.9...SCREW, CAP-HSH M6 X1 X 20 CL 12.9
-
100603-158 ...BEARING,GARLOCK 12DU12...BEARING,GARLOCK 12DU12
-
112603-730 AXLE, SPINDLEAXLE, SPINDLE
-
122603-731 SPACER, SPINDLE-31.75 MM (1.25")SPACER, SPINDLE-31.75 MM (1.25")
-
130603-036 DAMPER, SKI RUBBERDAMPER, SKI RUBBER
-
142603-729 SKI, PLASTIC - (BLACK)SKI, PLASTIC - (BLACK)
-
152603-746 INSERT, SKI - 10 MMINSERT, SKI - 10 MM
-
162603-950 HANDLE, PLASTIC - (BLACK)HANDLE, PLASTIC - (BLACK)
-
178427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
188476-650 SCREW,MACH-TSTRH M6X1.0X50 Z & YSCREW,MACH-TSTRH M6X1.0X50 Z & Y
-
198476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & YSCREW,MACH-TSTRH M6X1.0X25 Z & Y
-
200703-871 WEARBAR SKAG, 4" CARBIDE-PTD (BLACK)WEARBAR SKAG, 4" CARBIDE-PTD (BLACK)
-
218047-486 NUT,HEX FLG-NY LOCK 3/8-16 GR F Z & YNUT,HEX FLG-NY LOCK 3/8-16 GR F Z & Y
-
220423-744 NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCHNUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH
-
238050-282 WASHER,FLAT- 3/8 X 1.000 X .063 Z & YWASHER,FLAT- 3/8 X 1.000 X .063 Z & Y
-
240123-458 PIN, COTTERPIN, COTTER
-
251623-718 BOLT, SKI-HFH M 10 - 1.25 X 200 CL10.9BOLT, SKI-HFH M 10 - 1.25 X 200 CL10.9
