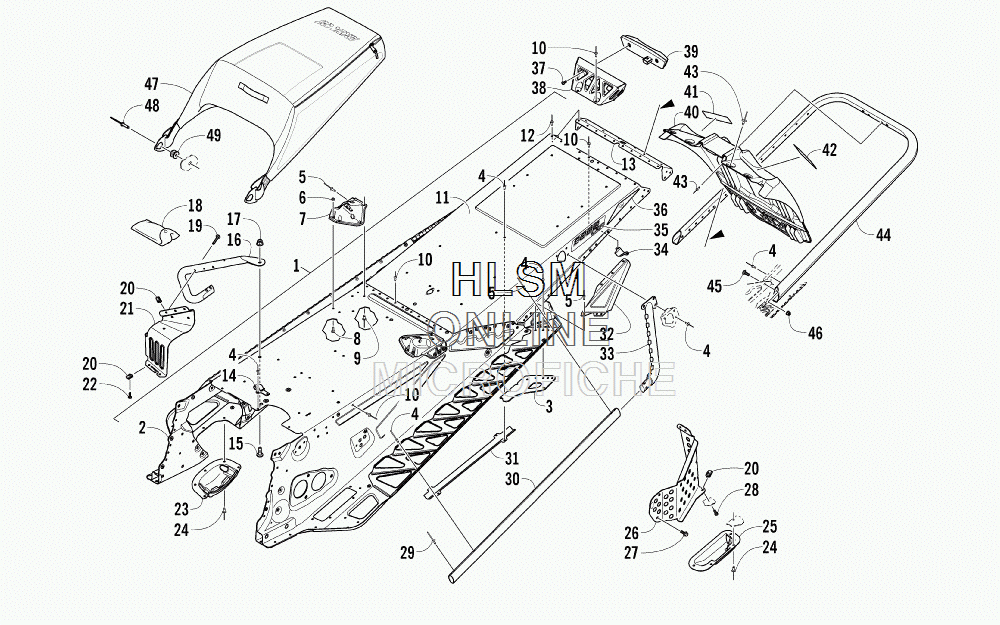

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 8000 LXR - BLACK [S2014ZRNLXUSB] - 2014 года выпуска
-
№АртикулНазвание
-
-1707-823 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-912 TUNNEL ASSEMBLY (INC. 2-13)TUNNEL ASSEMBLY (INC. 2-13)
-
21707-981 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
30607-992 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
30607-993 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
48060-686 ......RIVET......RIVET
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET...RIVET
-
111607-250 ...TUNNEL, REAR...TUNNEL, REAR
-
128060-484 ...RIVET...RIVET
-
131607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
140645-709 CLIP, ROUTINGCLIP, ROUTING
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
161707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
178427-802 NUT, LOCKNUT, LOCK
-
180744-076 KIT, TOOLKIT, TOOL
-
198468-536 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
210607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
210607-997 FOOTREST - LEFTFOOTREST - LEFT
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
231607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
248061-708 RIVETRIVET
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
261607-371 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
278408-613 SCREW, CAPSCREW, CAP
-
288470-520 SCREW, MACHINESCREW, MACHINE
-
291623-130 RIVETRIVET
-
301607-092 ROLL, TUNNELROLL, TUNNEL
-
310630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
321607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
321607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
331607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
331607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
340630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
350621-642 DECAL, TUNNEL - "8000 LXR" - RIGHTDECAL, TUNNEL - "8000 LXR" - RIGHT
-
350621-643 DECAL, TUNNEL - "8000 LXR" - LEFTDECAL, TUNNEL - "8000 LXR" - LEFT
-
360621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
378470-512 SCREW, MACHINESCREW, MACHINE
-
380630-279 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
390609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
406606-394 SNOWFLAPSNOWFLAP
-
415611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
425611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
438061-706 RIVETRIVET
-
441707-814 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
458476-620 SCREW, MACHINESCREW, MACHINE
-
468427-602 NUT, LOCKNUT, LOCK
-
476606-600 SADDLEBAGSADDLEBAG
-
488060-630 RIVETRIVET
-
491623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
