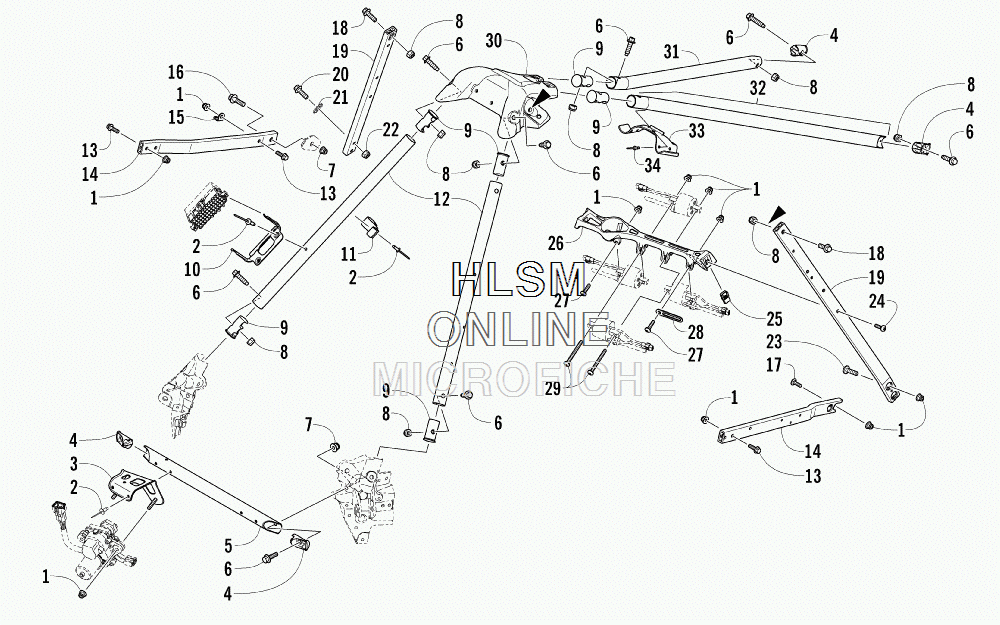

STEERING SUPPORT ASSEMBLY для Arctic Cat ZR 8000 LXR - BLACK [S2014ZRNLXUSB] - 2014 года выпуска
‹-+›
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
28060-686 RIVETRIVET
-
34706-845 BRACKET, MOUNTING - SERVOMOTORBRACKET, MOUNTING - SERVOMOTOR
-
41607-002 INSERTINSERT
-
51707-582 SUPPORT, SHOCK MOUNT BRACKETSUPPORT, SHOCK MOUNT BRACKET
-
61623-982 SCREW, CAPSCREW, CAP
-
78427-802 NUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT, HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
88422-802 NUT, HEX-THK NYL M8X1.25 CL8 Z & YNUT, HEX-THK NYL M8X1.25 CL8 Z & Y
-
91607-094 INSERTINSERT
-
100645-653 BRACKET, MOUNTING - FUSE BLOCKBRACKET, MOUNTING - FUSE BLOCK
-
111623-938 CLAMP, ROUTINGCLAMP, ROUTING
-
121707-956 SPAR, FRONTSPAR, FRONT
-
138408-630 SCREW, CAPSCREW, CAP
-
140607-248 SUPPORT, CHASSIS - RIGHTSUPPORT, CHASSIS - RIGHT
-
141607-368 SUPPORT, CHASSIS - LEFTSUPPORT, CHASSIS - LEFT
-
152612-707 TAB, SPRINGTAB, SPRING
-
168408-885 SCREW, CAPSCREW, CAP
-
171623-917 BOLT, CARRIAGEBOLT, CARRIAGE
-
188408-820 SCREW, CAPSCREW, CAP
-
190607-252 SUPPORT, SIDE - REAR RIGHTSUPPORT, SIDE - REAR RIGHT
-
191607-393 SUPPORT, SIDE - REAR LEFTSUPPORT, SIDE - REAR LEFT
-
208408-625 SCREW, CAPSCREW, CAP
-
218053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
228422-602 NUT, LOCKNUT, LOCK
-
238476-616 SCREW, MACHINESCREW, MACHINE
-
248476-626 SCREW, MACHINESCREW, MACHINE
-
250423-577 CLIP, U-NUTCLIP, U-NUT
-
260708-626 BRACKET, MOUNTING - COILBRACKET, MOUNTING - COIL
-
278468-640 SCREW, MACHINESCREW, MACHINE
-
281623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
298468-665 SCREW, MACHINESCREW, MACHINE
-
301707-570 SUPPORT, STEERINGSUPPORT, STEERING
-
311707-566 SPAR, REAR - RIGHTSPAR, REAR - RIGHT
-
325706-225 SPAR, REAR - LEFT (INC. 33-34)SPAR, REAR - LEFT (INC. 33-34)
-
336606-391 ...BRACKET, HOLD-DOWN - SEAT-BASE...BRACKET, HOLD-DOWN - SEAT-BASE
-
348060-484 ...RIVET...RIVET
