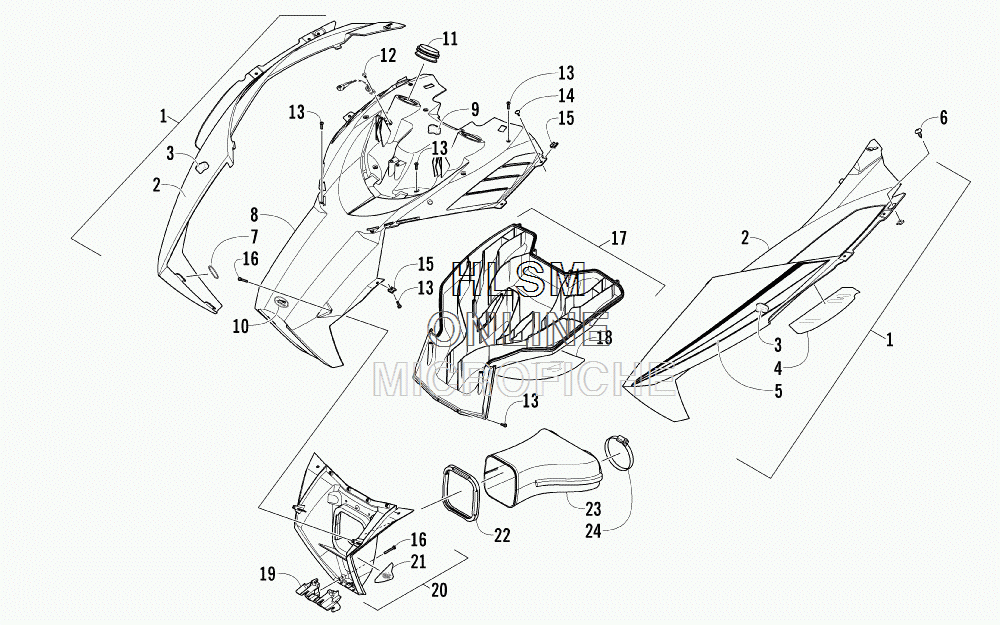

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 8000 LXR - BLACK [S2014ZRNLXUSB] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-870 HOOD W/DECALS - RIGHT - BLACK (INC. 2-3 AND 5)
    HOOD W/DECALS - RIGHT - BLACK (INC. 2-3 AND 5)
  • 1
    3718-871 HOOD W/DECALS - LEFT - BLACK (INC. 2-5)
    HOOD W/DECALS - LEFT - BLACK (INC. 2-5)
  • 2
    3718-588 ...HOOD, RIGHT - ASSEMBLY - BLACK (INC. 3)
    ...HOOD, RIGHT - ASSEMBLY - BLACK (INC. 3)
  • 2
    3718-589 ...HOOD, LEFT - ASSEMBLY - BLACK (INC. 3-4)
    ...HOOD, LEFT - ASSEMBLY - BLACK (INC. 3-4)
  • 3
    0617-646 ......FOAM, HOOD - RIGHT
    ......FOAM, HOOD - RIGHT
  • 3
    0617-647 ......FOAM, HOOD - LEFT
    ......FOAM, HOOD - LEFT
  • 4
    6606-407 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    0621-634 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 5
    0621-635 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 6
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    1623-960 O-RING
    O-RING
  • 8
    5706-356 PLENUM, INTAKE - UPPER (INC. 9)
    PLENUM, INTAKE - UPPER (INC. 9)
  • 9
    0617-648 ...FOAM, INTAKE
    ...FOAM, INTAKE
  • 10
    9611-751 DECAL, "ARCTIC CAT"
    DECAL, "ARCTIC CAT"
  • 11
    6606-386 BOOT, INTAKE
    BOOT, INTAKE
  • 12
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 13
    1623-933 SCREW, PLASTITE-TXSPNH 10-14X3/4 Z & B
    SCREW, PLASTITE-TXSPNH 10-14X3/4 Z & B
  • 14
    0623-797 SCREW, SELF TAP-TSTRH 10-12X1/2 TP A WO/
    SCREW, SELF TAP-TSTRH 10-12X1/2 TP A WO/
  • 15
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 16
    1623-929 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    5706-358 PLENUM, INTAKE - LOWER REAR (INC. 18)
    PLENUM, INTAKE - LOWER REAR (INC. 18)
  • 18
    6606-406 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 19
    6606-822 RETAINER, PLENUM
    RETAINER, PLENUM
  • 20
    5706-357 PLENUM, INTAKE - LOWER FRONT (INC. 21)
    PLENUM, INTAKE - LOWER FRONT (INC. 21)
  • 21
    0621-989 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 22
    0617-624 ADAPTER, BOOT
    ADAPTER, BOOT
  • 23
    2670-328 BOOT
    BOOT
  • 24
    0423-018 CLAMP
    CLAMP
