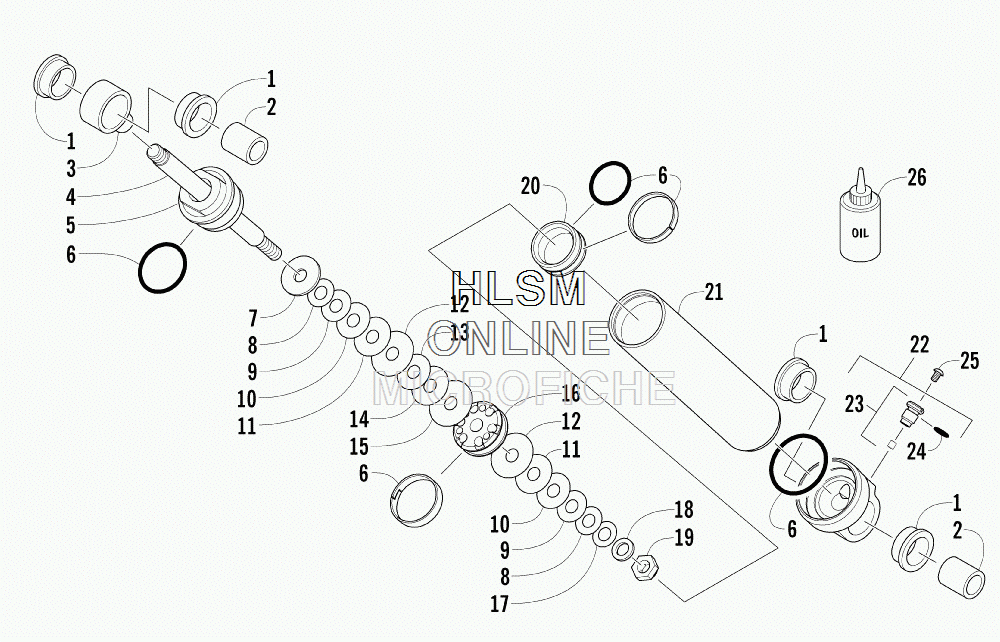

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat ZR 8000 LXR - BLACK [S2014ZRNLXUSB] - 2014 года выпуска`
-
№АртикулНазвание
-
-2704-359 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
13604-738 BUSHINGBUSHING
-
23604-737 SLEEVESLEEVE
-
33604-796 EYELET, SHOCKEYELET, SHOCK
-
43604-776 ROD, SHOCKROD, SHOCK
-
53604-770 END CAP, SHOCKEND CAP, SHOCK
-
62703-980 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
73604-789 WASHER, TOP OUTWASHER, TOP OUT
-
83603-105 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
93603-115 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
103603-125 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
113603-145 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
123603-175 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
133603-122 VALVE, 1.000 X 0.006 IN.VALVE, 1.000 X 0.006 IN.
-
143603-144 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
153603-186 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
162603-018 PISTON, 0.055 IN. - ORIFICEPISTON, 0.055 IN. - ORIFICE
-
173603-095 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
183604-775 WASHER, BACKUPWASHER, BACKUP
-
193604-739 NUTNUT
-
203604-772 PISTON, FLOATINGPISTON, FLOATING
-
213604-759 BODY, SHOCKBODY, SHOCK
-
222704-257 END CAP, SHOCK - ASSEMBLY (INC. 23-24)END CAP, SHOCK - ASSEMBLY (INC. 23-24)
-
233604-751 ...VALVE, PRESSURE - ASSEMBLY (INC. 24)...VALVE, PRESSURE - ASSEMBLY (INC. 24)
-
243604-733 ......O-RING......O-RING
-
253604-750 SCREW, MACHINESCREW, MACHINE
-
265639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
