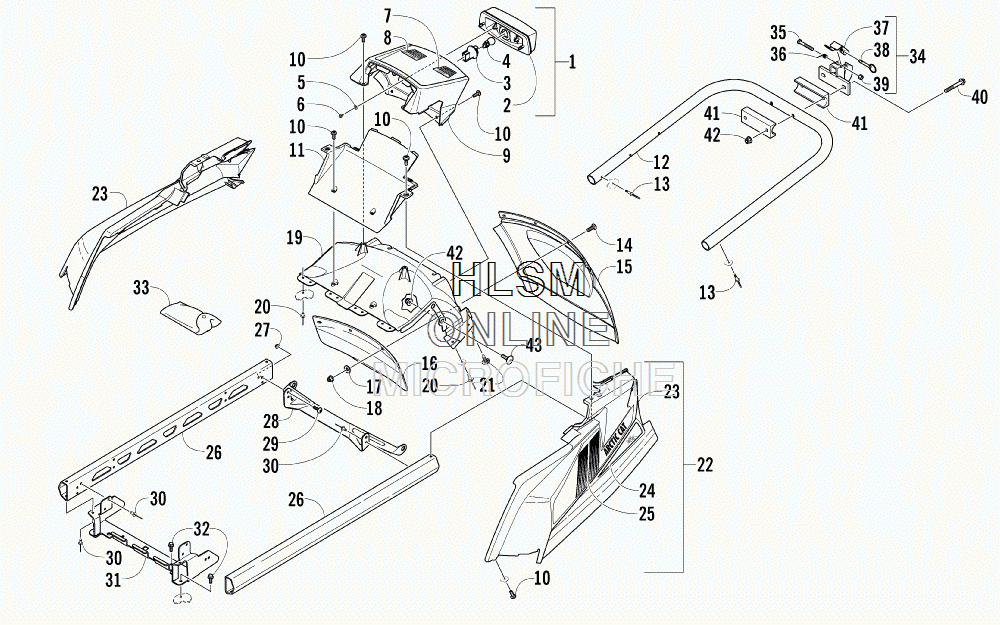

REAR BUMPER- HITCH- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat Bearcat 570 [S2014BCDFCUSL] - 2014 года выпуска`
-
№АртикулНазвание
-
10509-022 TAILLIGHT - ASSEMBLY (INC. 2-4)TAILLIGHT - ASSEMBLY (INC. 2-4)
-
20509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
30409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
40409-056 ...BULB, TAILLIGHT 3157...BULB, TAILLIGHT 3157
-
58050-127 WASHERWASHER
-
60623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
77611-433 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
87611-432 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
95606-063 HOOD, TAILLIGHTHOOD, TAILLIGHT
-
101623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
115606-065 PANEL, ACCESS - TAILLIGHTPANEL, ACCESS - TAILLIGHT
-
121707-980 BUMPER, REAR - BLUEBUMPER, REAR - BLUE
-
131623-241 RIVETRIVET
-
141623-782 SCREW, MACHINESCREW, MACHINE
-
155606-254 SNOWFLAPSNOWFLAP
-
163606-776 SUPPORT, SNOWFLAPSUPPORT, SNOWFLAP
-
170623-184 WASHERWASHER
-
188427-602 NUT, LOCKNUT, LOCK
-
195606-056 CLOSE-OFF, TUNNELCLOSE-OFF, TUNNEL
-
208061-506 RIVETRIVET
-
210623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
223718-850 FENDER, REAR - RIGHT W/DECAL (INC. 23-25)FENDER, REAR - RIGHT W/DECAL (INC. 23-25)
-
223718-851 FENDER, REAR - LEFT W/DECAL (INC. 23-25)FENDER, REAR - LEFT W/DECAL (INC. 23-25)
-
232718-488 ...FENDER, REAR - RIGHT (INC. 24)...FENDER, REAR - RIGHT (INC. 24)
-
232718-489 ...FENDER, REAR - LEFT (INC. 24)...FENDER, REAR - LEFT (INC. 24)
-
248611-304 ......DECAL, REFLECTOR - RIGHT - RED......DECAL, REFLECTOR - RIGHT - RED
-
248611-305 ......DECAL, REFLECTOR - LEFT - RED......DECAL, REFLECTOR - LEFT - RED
-
250621-570 ...DECAL, REAR FENDER - RIGHT...DECAL, REAR FENDER - RIGHT
-
250621-571 ...DECAL, REAR FENDER - LEFT...DECAL, REAR FENDER - LEFT
-
264706-482 RAIL, RACKRAIL, RACK
-
278427-502 NUT, LOCKNUT, LOCK
-
283706-989 BRACKET, MOUNTING - RACK RAIL - REARBRACKET, MOUNTING - RACK RAIL - REAR
-
298470-516 SCREW, MACHINESCREW, MACHINE
-
308060-686 RIVETRIVET
-
314706-017 BRACKET, MOUNTING - RACK RAIL - FRONTBRACKET, MOUNTING - RACK RAIL - FRONT
-
328408-620 SCREW, CAPSCREW, CAP
-
334706-072 KIT, TOOLKIT, TOOL
-
340706-727 HITCH, PINTLE - ASSEMBLY (INC. 35-39)HITCH, PINTLE - ASSEMBLY (INC. 35-39)
-
358002-046 ...SCREW, CAP...SCREW, CAP
-
360623-335 ...SPRING, HITCH...SPRING, HITCH
-
372706-229 ...LATCH, HITCH...LATCH, HITCH
-
380623-213 ...PIN, HITCH...PIN, HITCH
-
398040-366 ...NUT, LOCK...NUT, LOCK
-
408408-860 SCREW, CAPSCREW, CAP
-
413706-896 BRACKET, MOUNTING - HITCHBRACKET, MOUNTING - HITCH
-
428427-802 NUT, LOCKNUT, LOCK
-
431623-812 SCREW, SHOULDERSCREW, SHOULDER
