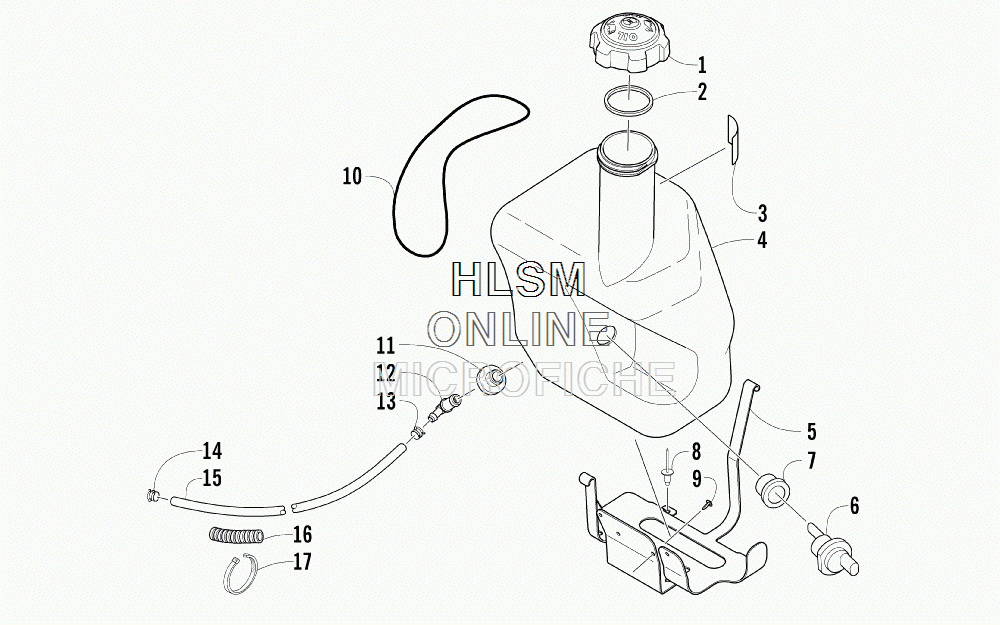

OIL TANK ASSEMBLY для Arctic Cat Bearcat 570 [S2014BCDFCUSL] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-365 CAP, OIL TANK (INC. 2)
    CAP, OIL TANK (INC. 2)
  • 2
    0109-733 ...SEAL, CAP - OIL TANK
    ...SEAL, CAP - OIL TANK
  • 3
    1611-564 DECAL, OIL TANK
    DECAL, OIL TANK
  • 4
    1670-922 TANK, OIL
    TANK, OIL
  • 5
    3706-798 BRACKET, MOUNTING - OIL TANK
    BRACKET, MOUNTING - OIL TANK
  • 6
    0609-915 SENSOR, LOW OIL (INC. 7)
    SENSOR, LOW OIL (INC. 7)
  • 7
    0609-924 ...GROMMET
    ...GROMMET
  • 8
    8060-686 RIVET, BLIND-DH SS64 ZINC
    RIVET, BLIND-DH SS64 ZINC
  • 9
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    1623-693 O-RING
    O-RING
  • 11
    1670-325 GROMMET
    GROMMET
  • 12
    1670-494 FITTING, OIL TANK
    FITTING, OIL TANK
  • 13
    1623-042 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    1623-351 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    6101-009 HOSE, OIL - 25 FT
    HOSE, OIL - 25 FT
  • 15
    6101-001 HOSE, OIL - 100 FT
    HOSE, OIL - 100 FT
  • 16
    0716-558 CONDUIT, PROTECTIVE - 10 FT
    CONDUIT, PROTECTIVE - 10 FT
  • 17
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
