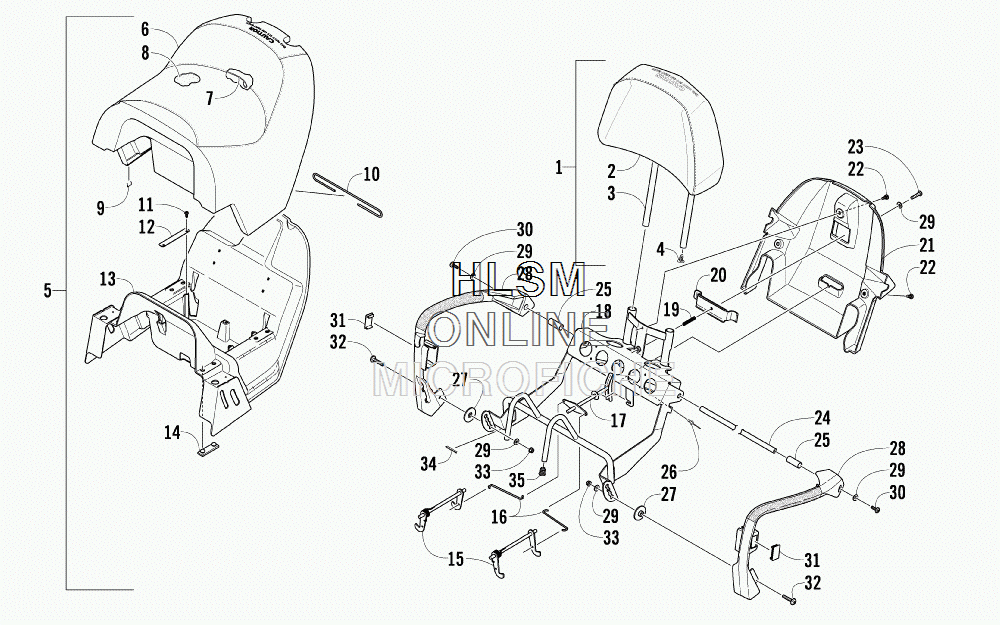

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat Bearcat 570 [S2014BCDFCUSL] - 2014 года выпуска`
-
№АртикулНазвание
-
14706-249 BACKREST - COMPLETE (INC. 2-4)BACKREST - COMPLETE (INC. 2-4)
-
24706-250 ...COVER, BACKREST...COVER, BACKREST
-
35606-082 ...BACKREST...BACKREST
-
41623-732 ...CLIP, RETAINING...CLIP, RETAINING
-
54706-909 SEAT, PASSENGER - ASSEMBLY (INC. 6-35)SEAT, PASSENGER - ASSEMBLY (INC. 6-35)
-
64706-908 ...COVER, SEAT - REAR (INC. 7)...COVER, SEAT - REAR (INC. 7)
-
75606-378 ......WIRE, SEAT......WIRE, SEAT
-
83706-738 ...FOAM, SEAT...FOAM, SEAT
-
90624-528 ...STAPLE...STAPLE
-
105606-380 ...WIRE, SEAT - 279 MM - FORMED...WIRE, SEAT - 279 MM - FORMED
-
110623-727 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
125606-178 ...RETAINER, SEAT LATCH...RETAINER, SEAT LATCH
-
134606-290 ...BASE, SEAT - REAR...BASE, SEAT - REAR
-
140406-879 ...BUMPER, SEAT...BUMPER, SEAT
-
154706-194 ...ROD, LATCH W/SPRING - RIGHT...ROD, LATCH W/SPRING - RIGHT
-
154706-195 ...ROD, LATCH W/SPRING - LEFT...ROD, LATCH W/SPRING - LEFT
-
165606-204 ...ROD, CROSS...ROD, CROSS
-
174706-090 ...ROD, HANDLE...ROD, HANDLE
-
183706-808 ...FRAME, SEAT - PASSENGER...FRAME, SEAT - PASSENGER
-
195606-095 ...SPRING, ADJUSTMENT...SPRING, ADJUSTMENT
-
203706-806 ...PLATE, CLAMP - REAR BACKREST...PLATE, CLAMP - REAR BACKREST
-
214606-291 ...PANEL, SEAT-BASE - PASSENGER...PANEL, SEAT-BASE - PASSENGER
-
220423-396 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
231623-774 ...SCREW, CAP...SCREW, CAP
-
245606-020 ...ROD, PIVOT - HANDLE...ROD, PIVOT - HANDLE
-
255606-018 ...SPACER, PIVOT - HANDLE...SPACER, PIVOT - HANDLE
-
260623-853 ...RIVET...RIVET
-
274706-075 ...SPACER, LATCH...SPACER, LATCH
-
284706-530 ...HANDHOLD - RIGHT...HANDHOLD - RIGHT
-
285606-307 ...HANDHOLD - LEFT...HANDHOLD - LEFT
-
298050-217 ...WASHER...WASHER
-
301623-789 ...SCREW, MACHINE...SCREW, MACHINE
-
310409-070 ...PLUG, SWITCH-HOLE...PLUG, SWITCH-HOLE
-
328476-630 ...SCREW, MACHINE...SCREW, MACHINE
-
338427-602 ...NUT, LOCK...NUT, LOCK
-
340706-371 ...TRIM...TRIM
-
351623-697 ...PLUG...PLUG
