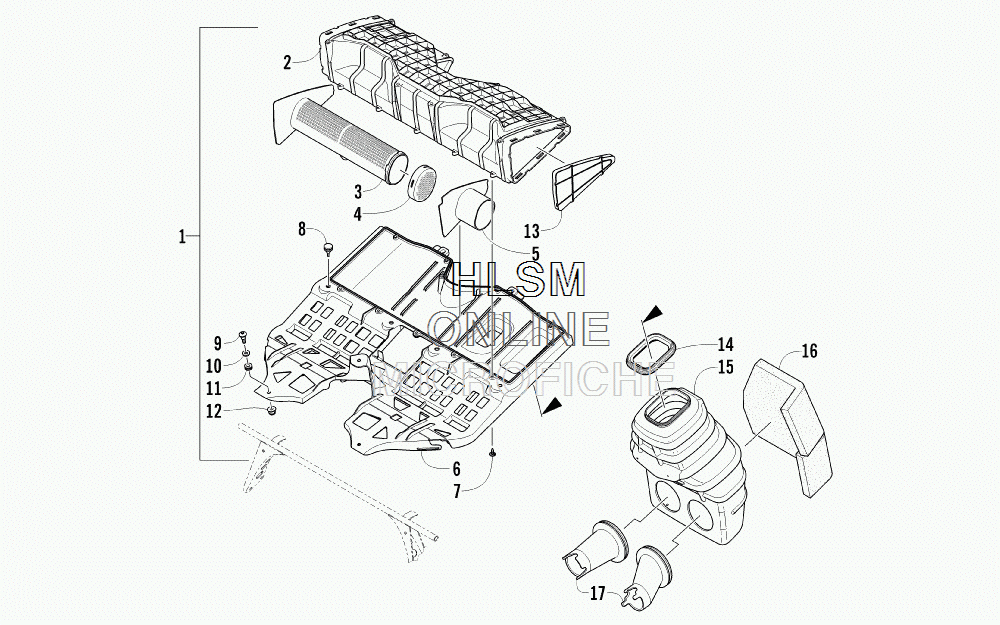

AIR SILENCER ASSEMBLY для Arctic Cat Bearcat 570 [S2014BCDFCUSL] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-976 INTAKE, SUPPORT - ASSEMBLY (INC. 2-7)
    INTAKE, SUPPORT - ASSEMBLY (INC. 2-7)
  • 2
    1670-732 ...INTAKE, SUPPORT - TOP
    ...INTAKE, SUPPORT - TOP
  • 3
    2670-240 ...RESONATOR, UPPER - PLENUM - RIGHT
    ...RESONATOR, UPPER - PLENUM - RIGHT
  • 4
    2670-255 ...CAP, UPPER RESONATOR
    ...CAP, UPPER RESONATOR
  • 5
    1670-925 ...RESONATOR, UPPER - PLENUM - LEFT
    ...RESONATOR, UPPER - PLENUM - LEFT
  • 6
    1670-733 ...INTAKE, SUPPORT - BOTTOM
    ...INTAKE, SUPPORT - BOTTOM
  • 7
    0623-784 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 8
    4606-276 GROMMET
    GROMMET
  • 9
    0423-356 SCREW, SHOULDER
    SCREW, SHOULDER
  • 10
    8050-212 WASHER, FLAT- 1/4 X .500 X .063 Z & Y
    WASHER, FLAT- 1/4 X .500 X .063 Z & Y
  • 11
    4606-275 GROMMET
    GROMMET
  • 12
    8427-602 NUT, LOCK
    NUT, LOCK
  • 13
    1670-831 COVER, TOP PLENUM - LEFT
    COVER, TOP PLENUM - LEFT
  • 14
    1670-942 SEAL, AIR SILENCER
    SEAL, AIR SILENCER
  • 15
    1670-941 SILENCER, AIR
    SILENCER, AIR
  • 16
    0617-660 FOAM, AIR SILENCER
    FOAM, AIR SILENCER
  • 17
    1670-944 BOOT, AIR SILENCER
    BOOT, AIR SILENCER
