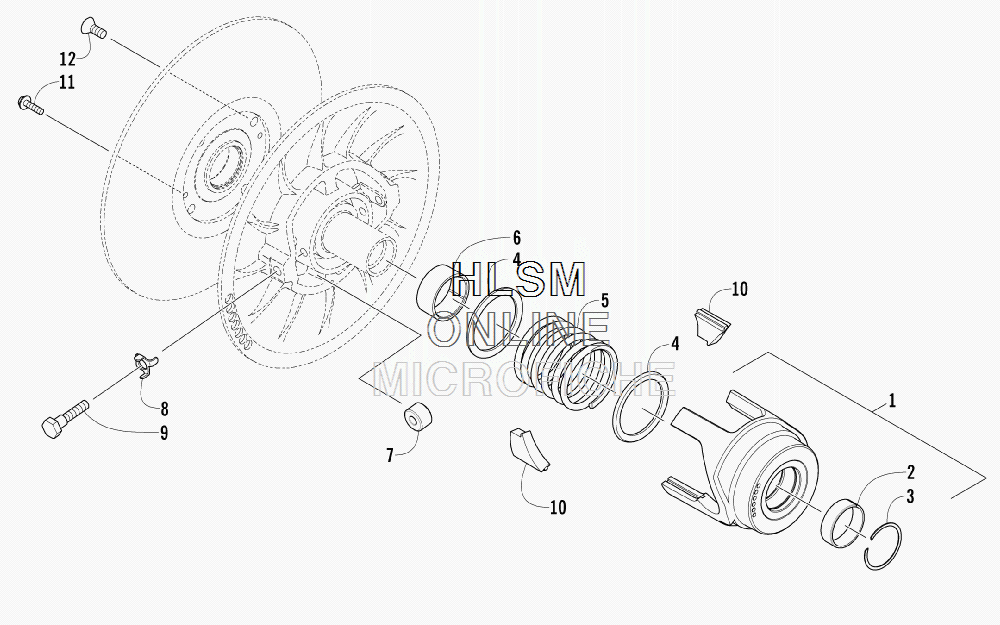

DRIVEN CLUTCH для Arctic Cat XF 800 Sno Pro - GREEN - INTERNATIONAL [S2013XFHSPOSG] - 2013 года выпуска

  • №
    Артикул
    Название
  • -
    0726-351 CLUTCH, DRIVEN - ASSEMBLY
    CLUTCH, DRIVEN - ASSEMBLY
  • 1
    0748-759 BRACKET, TORQUE 42/40 (INC. 2-3)
    BRACKET, TORQUE 42/40 (INC. 2-3)
  • 1
    0748-757 BRACKET, TORQUE 36 (INC. 2-3) - OVER 3,000 FT ALT.
    BRACKET, TORQUE 36 (INC. 2-3) - OVER 3,000 FT ALT.
  • 2
    0648-009 ...BEARING
    ...BEARING
  • 3
    0648-811 ...RING, SNAP
    ...RING, SNAP
  • 4
    0648-810 SEAT, SPRING
    SEAT, SPRING
  • 5
    0648-813 SPRING, DRIVEN CLUTCH - BLUE
    SPRING, DRIVEN CLUTCH - BLUE
  • 6
    0648-827 SPACER
    SPACER
  • 7
    0648-824 ROLLER, CAM
    ROLLER, CAM
  • 8
    0648-800 WASHER, TAB
    WASHER, TAB
  • 9
    0648-799 SCREW, SHOULDER
    SCREW, SHOULDER
  • 10
    0648-826 CAM, BACK
    CAM, BACK
  • 11
    0623-684 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    1623-013 SCREW, MACHINE
    SCREW, MACHINE
