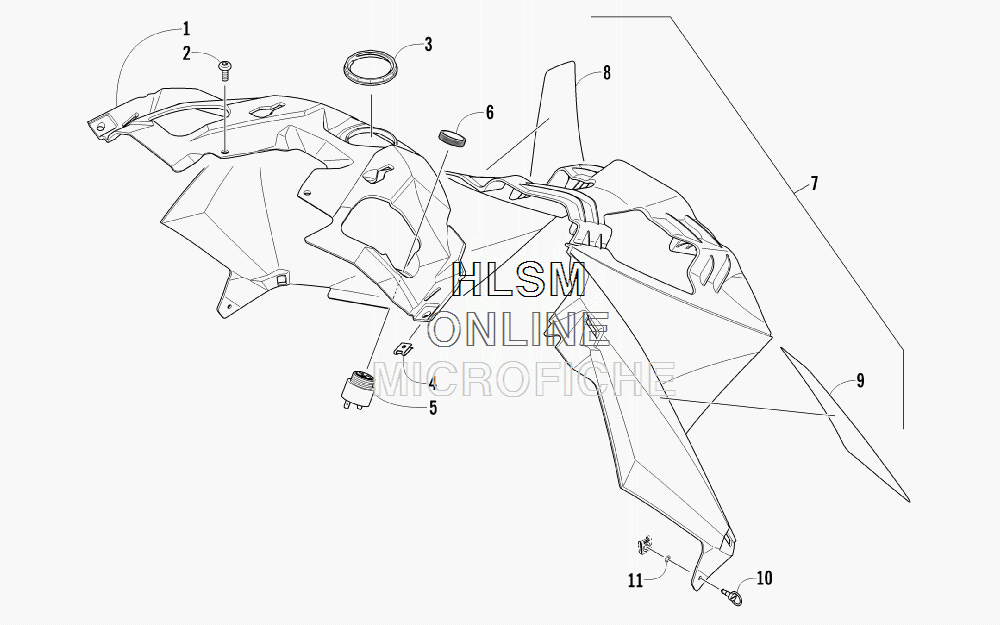

CONSOLE ASSEMBLY для Arctic Cat XF 800 Sno Pro - GREEN - INTERNATIONAL [S2013XFHSPOSG] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    6606-305 CONSOLE, UPPER
    CONSOLE, UPPER
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 4
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 5
    0630-243 ALARM, REVERSE (INC. 6)
    ALARM, REVERSE (INC. 6)
  • 6
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 7
    3718-153 CONSOLE, LOWER (INC. 8-9)
    CONSOLE, LOWER (INC. 8-9)
  • 8
    9611-499 ...DECAL, WARNING - ENGLISH
    ...DECAL, WARNING - ENGLISH
  • 9
    9611-498 ...DECAL, WARNING - FRENCH
    ...DECAL, WARNING - FRENCH
  • 10
    1623-746 PIN, RETAINING
    PIN, RETAINING
  • 11
    1623-747 NUT, PUSH
    NUT, PUSH
