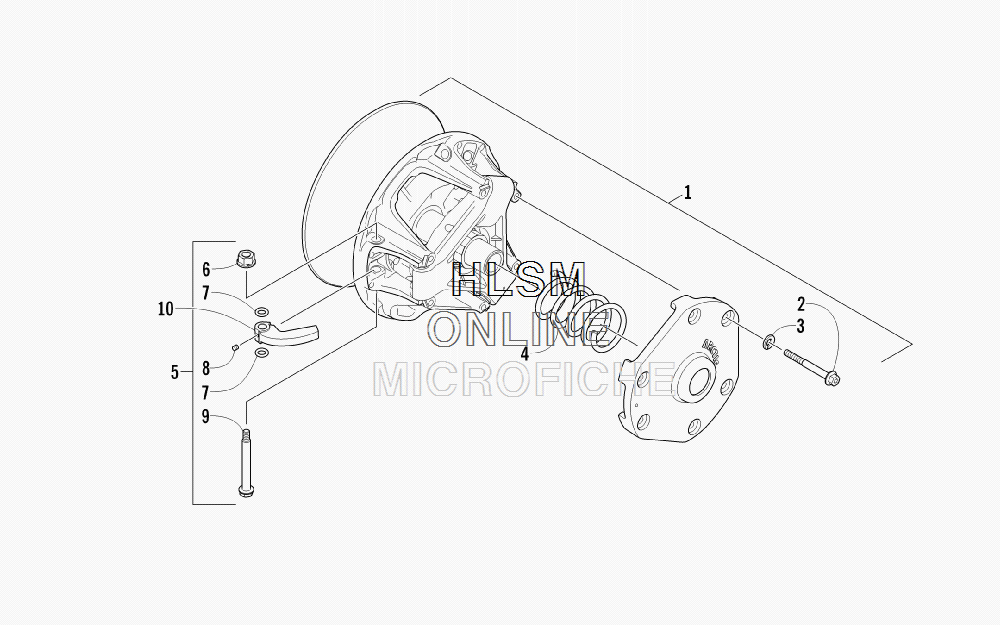

DRIVE CLUTCH для Arctic Cat XF 800 Sno Pro - GREEN - INTERNATIONAL [S2013XFHSPOSG] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0746-435 CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)
    CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)
  • 2
    0646-431 ...SCREW, SHOULDER
    ...SCREW, SHOULDER
  • 3
    0646-430 ...WASHER, LOCK
    ...WASHER, LOCK
  • 4
    0646-252 SPRING, DRIVE CLUTCH - GREEN
    SPRING, DRIVE CLUTCH - GREEN
  • 4
    0646-229 SPRING, DRIVE CLUTCH - YELLOW/WHITE - OVER 3,000 FT ALT.
    SPRING, DRIVE CLUTCH - YELLOW/WHITE - OVER 3,000 FT ALT.
  • 5
    4639-674 KIT, CAM ARM (INC. 6-9)
    KIT, CAM ARM (INC. 6-9)
  • 6
    8048-366 ...NUT, LOCK
    ...NUT, LOCK
  • 7
    1602-692 ...O-RING
    ...O-RING
  • 8
    1623-183 ...SCREW, SET
    ...SCREW, SET
  • 9
    0646-747 ...PIN, CAM ARM
    ...PIN, CAM ARM
  • 10
    0746-827 ARM, CAM (INC. 8)
    ARM, CAM (INC. 8)
  • 10
    0746-716 ARM, CAM (INC. 8) - 3-6,000 FT ALT.
    ARM, CAM (INC. 8) - 3-6,000 FT ALT.
  • 10
    0746-671 ARM, CAM (INC. 8) - 6-9,000 FT ALT.
    ARM, CAM (INC. 8) - 6-9,000 FT ALT.
  • 10
    0746-695 ARM, CAM (INC. 8) - OVER 9,000 FT ALT.
    ARM, CAM (INC. 8) - OVER 9,000 FT ALT.
