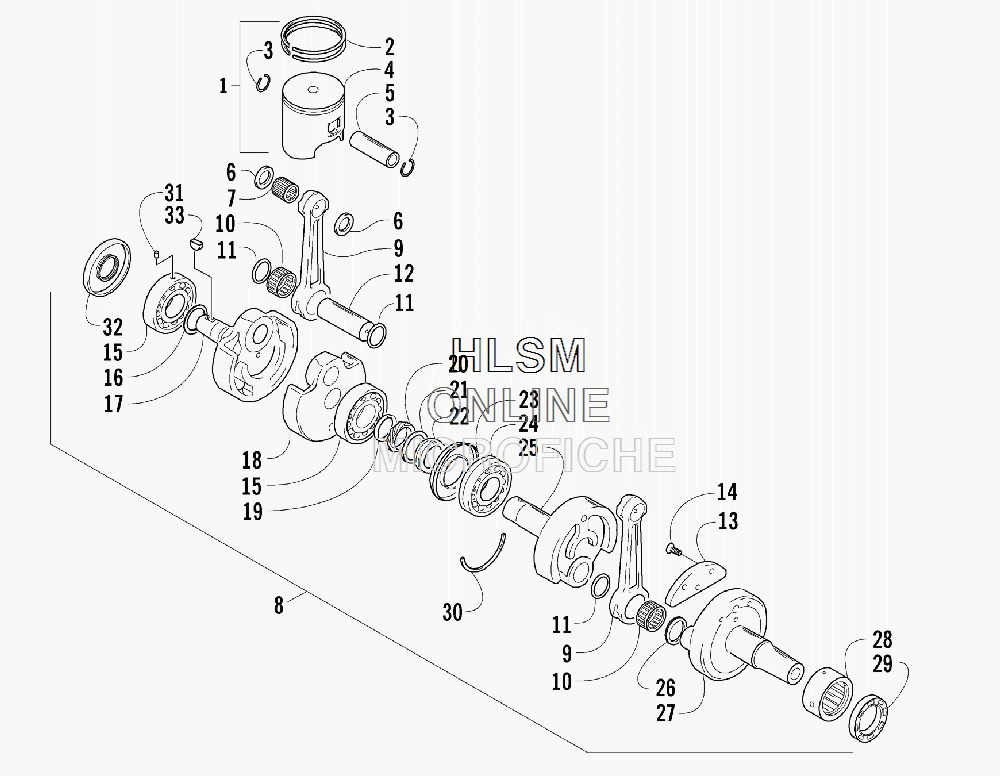

PISTON AND CRANKSHAFT для Arctic Cat T570 - 2012 года выпуска`
-
№АртикулНазвание
-
13007-863 PISTON ASSEMBLY (INC. 2-4)PISTON ASSEMBLY (INC. 2-4)
-
23006-004 ...RING SET, PISTON...RING SET, PISTON
-
33003-537 ...RING, SNAP...RING, SNAP
-
53004-830 PIN, PISTONPIN, PISTON
-
63004-780 WASHERWASHER
-
73005-993 BEARINGBEARING
-
83007-864 CRANKSHAFT ASSEMBLY (INC. 9-28)CRANKSHAFT ASSEMBLY (INC. 9-28)
-
93007-482 ...ROD, CONNECTING...ROD, CONNECTING
-
103004-514 ...BEARING...BEARING
-
113005-989 ...SHIM...SHIM
-
123006-006 ...PIN, CRANK...PIN, CRANK
-
133006-011 ...BALANCER...BALANCER
-
143007-440 ...SCREW, MACHINE...SCREW, MACHINE
-
153006-464 ...BEARING...BEARING
-
163008-501 ...WASHER...WASHER
-
173006-007 ...CRANKSHAFT - RIGHT...CRANKSHAFT - RIGHT
-
183006-008 ...WHEEL, CRANKSHAFT...WHEEL, CRANKSHAFT
-
193002-827 ...SPACER...SPACER
-
203005-373 ...GEAR, OIL PUMP DRIVE...GEAR, OIL PUMP DRIVE
-
213003-112 ...RING, SEAL...RING, SEAL
-
223003-171 ...RACE, CRANKSHAFT SEAL...RACE, CRANKSHAFT SEAL
-
233003-306 ...RETAINER, CRANKSHAFT SEAL...RETAINER, CRANKSHAFT SEAL
-
243005-992 ...BEARING...BEARING
-
253006-009 ...CRANKSHAFT - CENTER...CRANKSHAFT - CENTER
-
263003-800 ...WASHER...WASHER
-
273007-865 ...CRANKSHAFT - LEFT...CRANKSHAFT - LEFT
-
283005-994 ...BEARING, CRANKSHAFT - LEFT...BEARING, CRANKSHAFT - LEFT
-
293006-465 SEAL, OILSEAL, OIL
-
303003-216 C-RING, CRANKSHAFTC-RING, CRANKSHAFT
-
313003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
323005-995 SEAL, OILSEAL, OIL
-
333010-070 KEYKEY
