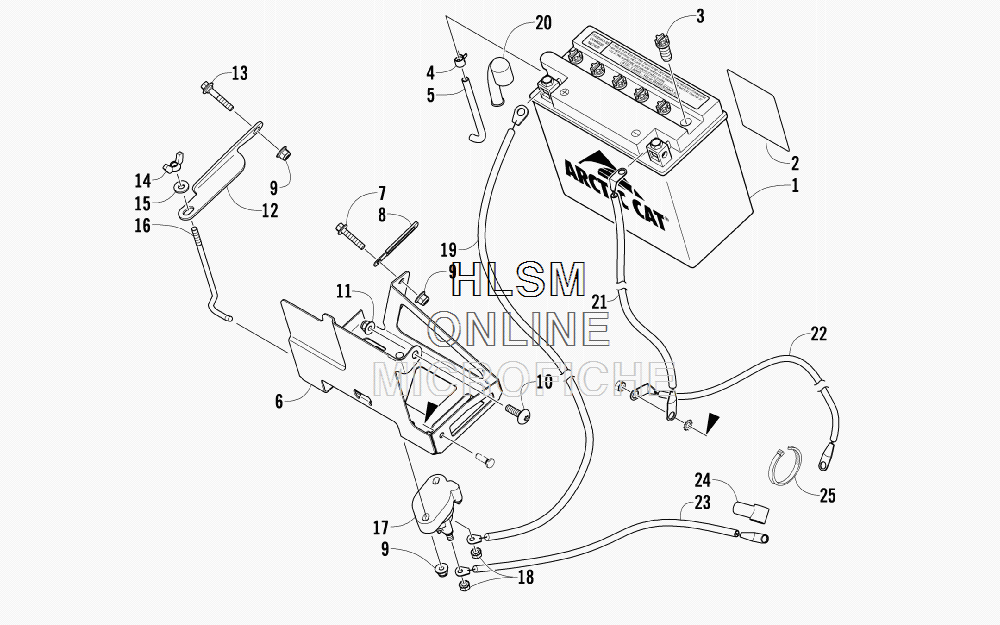

BATTERY AND TRAY ASSEMBLY для Arctic Cat T570 - 2012 года выпуска`
-
№АртикулНазвание
-
10745-047 BATTERY (INC. 2-5)BATTERY (INC. 2-5)
-
20645-151 ...DECAL, WARNING...DECAL, WARNING
-
30645-045 ...CAP, BATTERY...CAP, BATTERY
-
40645-152 ...CLAMP, HOSE...CLAMP, HOSE
-
50645-263 ...HOSE, VENT...HOSE, VENT
-
60745-315 TRAY, BATTERYTRAY, BATTERY
-
78408-630 SCREW, CAPSCREW, CAP
-
83002-964 CLAMP, WIRECLAMP, WIRE
-
98427-602 NUT, LOCKNUT, LOCK
-
108476-816 SCREW, MACHINESCREW, MACHINE
-
118427-802 NUT, LOCKNUT, LOCK
-
120745-318 BRACKET, HOLD-DOWN - BATTERYBRACKET, HOLD-DOWN - BATTERY
-
131623-725 SCREW, SHOULDERSCREW, SHOULDER
-
140423-716 NUT, WINGNUT, WING
-
158050-217 WASHERWASHER
-
160745-329 ROD, HOLD-DOWN - BATTERYROD, HOLD-DOWN - BATTERY
-
170445-058 SOLENOID, STARTER RELAYSOLENOID, STARTER RELAY
-
180623-038 NUT W/WASHERNUT W/WASHER
-
190645-587 CABLE, BATTERY/SOLENOID (INC. 20)CABLE, BATTERY/SOLENOID (INC. 20)
-
200645-521 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
210645-586 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
220645-593 CABLE, STARTER-TO-GROUNDCABLE, STARTER-TO-GROUND
-
230645-592 CABLE, SOLENOID/STARTER (INC. 24)CABLE, SOLENOID/STARTER (INC. 24)
-
240645-327 ...BOOT, TERMINAL...BOOT, TERMINAL
-
250123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
