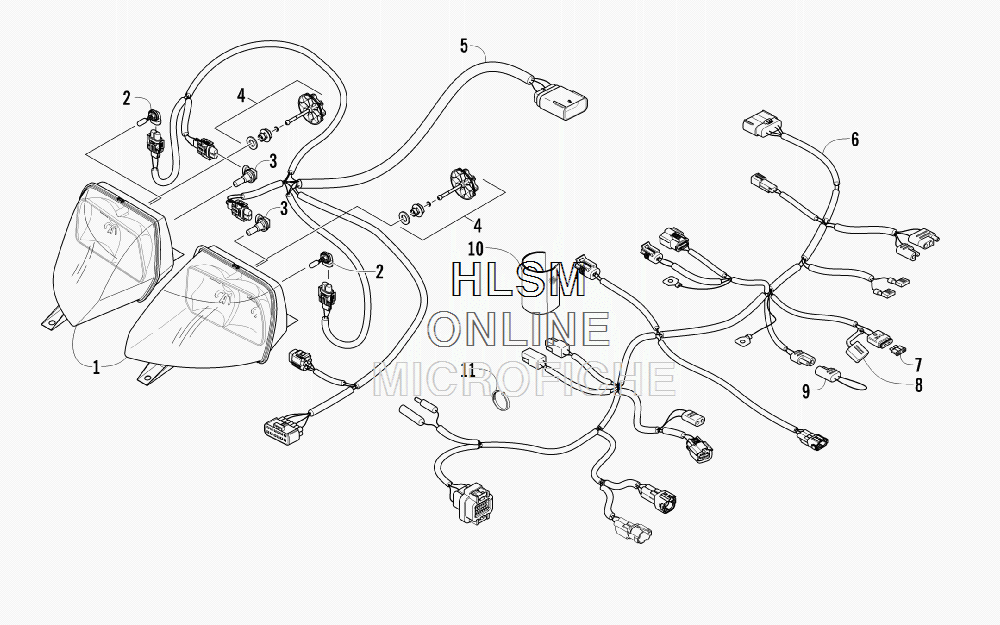

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat T570 - 2012 года выпуска`
-
№АртикулНазвание
-
10609-872 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)
-
10609-873 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)
-
20609-783 ...BULB, HEADLIGHT - LOW BEAM...BULB, HEADLIGHT - LOW BEAM
-
30609-831 ...BULB, HEADLIGHT - HIGH BEAM...BULB, HEADLIGHT - HIGH BEAM
-
40609-779 ...ADJUSTER, HEADLIGHT - ASSEMBLY...ADJUSTER, HEADLIGHT - ASSEMBLY
-
51686-633 HARNESS, CONSOLEHARNESS, CONSOLE
-
61686-601 HARNESS, MAIN (INC. 7-8)HARNESS, MAIN (INC. 7-8)
-
70630-100 ...FUSE, 7.5 AMP...FUSE, 7.5 AMP
-
80630-102 ...COVER, FUSE HOLDER...COVER, FUSE HOLDER
-
90486-164 TETHER, ACCESSORY CONNECTOR - OPTIONALTETHER, ACCESSORY CONNECTOR - OPTIONAL
-
103706-761 WRAP, HARNESSWRAP, HARNESS
-
110123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
110123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
