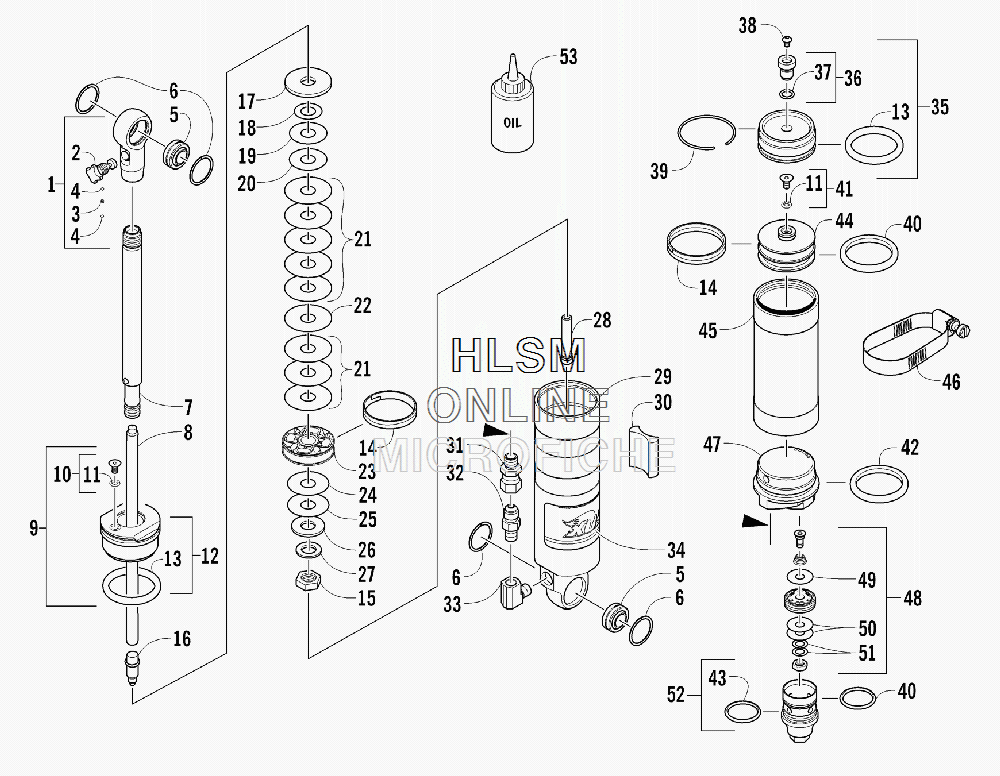

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat SNO PRO 600 SNO CROSS - 2011 года выпуска

  • №
    Артикул
    Название
  • -
    2704-046 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    2604-961 EYELET, SHOCK - ASSEMBLY (INC. 2-4)
    EYELET, SHOCK - ASSEMBLY (INC. 2-4)
  • 2
    2604-958 ...KNOB, DAMPING ADJUSTER
    ...KNOB, DAMPING ADJUSTER
  • 3
    2604-960 ...SPRING
    ...SPRING
  • 4
    1604-315 ...BALL, ADJUSTER
    ...BALL, ADJUSTER
  • 5
    1604-664 BEARING
    BEARING
  • 6
    3604-147 RING, RETAINING
    RING, RETAINING
  • 7
    2604-955 SHAFT, SHOCK
    SHAFT, SHOCK
  • 8
    2604-954 ROD, DAMPING ADJUSTER - ASSEMBLY
    ROD, DAMPING ADJUSTER - ASSEMBLY
  • 9
    3604-162 KIT, REBUILD - SHOCK (INC. 10-15)
    KIT, REBUILD - SHOCK (INC. 10-15)
  • 10
    2604-530 ...SCREW, MACHINE (INC. ONE NO. 11)
    ...SCREW, MACHINE (INC. ONE NO. 11)
  • 11
    1604-425 ......O-RING
    ......O-RING
  • 12
    2604-956 ...BEARING - ASSEMBLY (INC. ONE NO. 13)
    ...BEARING - ASSEMBLY (INC. ONE NO. 13)
  • 13
    0603-671 ......O-RING
    ......O-RING
  • 14
    1603-235 ...STRAP, PISTON
    ...STRAP, PISTON
  • 15
    2604-448 ...NUT
    ...NUT
  • 16
    2604-953 NEEDLE, DAMPING W/O-RING
    NEEDLE, DAMPING W/O-RING
  • 17
    2604-449 WASHER, TOP OUT
    WASHER, TOP OUT
  • 18
    2604-478 VALVE, 0.950 X 0.006 IN.
    VALVE, 0.950 X 0.006 IN.
  • 19
    2604-484 VALVE, 1.100 X 0.006 IN.
    VALVE, 1.100 X 0.006 IN.
  • 20
    2604-684 VALVE, 1.250 X 0.006 IN.
    VALVE, 1.250 X 0.006 IN.
  • 21
    2604-503 VALVE, 1.600 X 0.012 IN.
    VALVE, 1.600 X 0.012 IN.
  • 22
    3604-625 VALVE, 1.425 X 0.004 IN.
    VALVE, 1.425 X 0.004 IN.
  • 23
    2604-673 PISTON, DAMPING
    PISTON, DAMPING
  • 24
    2604-498 VALVE, 1.425 X 0.012 IN.
    VALVE, 1.425 X 0.012 IN.
  • 25
    3604-626 VALVE, 1.000 X 0.004 IN.
    VALVE, 1.000 X 0.004 IN.
  • 26
    3604-624 WASHER, TOP OUT
    WASHER, TOP OUT
  • 27
    3604-184 WASHER, BACKUP
    WASHER, BACKUP
  • 28
    3604-423 VALVE, CHECK - ASSEMBLY
    VALVE, CHECK - ASSEMBLY
  • 29
    3604-514 BODY, SHOCK
    BODY, SHOCK
  • 30
    3604-518 SPACER, SHOCK/RESERVOIR
    SPACER, SHOCK/RESERVOIR
  • 31
    2604-208 ADAPTER, FITTING
    ADAPTER, FITTING
  • 32
    3604-521 FITTING
    FITTING
  • 33
    3604-520 FITTING, ELBOW
    FITTING, ELBOW
  • 34
    2604-889 DECAL, SHOCK
    DECAL, SHOCK
  • 35
    2603-525 END CAP, RESERVOIR (INC. ONE NO. 13 AND 36-37)
    END CAP, RESERVOIR (INC. ONE NO. 13 AND 36-37)
  • 36
    0703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 37)
    ...VALVE, PRESSURE - ASSEMBLY (INC. 37)
  • 37
    1604-318 ......O-RING
    ......O-RING
  • 38
    0624-097 SCREW, VALVE
    SCREW, VALVE
  • 39
    0604-992 RING, RETAINING
    RING, RETAINING
  • 40
    3604-539 KIT, REBUILD - RESERVOIR (INC. ONE NO. 11, 13, 14, AND 41-43)
    KIT, REBUILD - RESERVOIR (INC. ONE NO. 11, 13, 14, AND 41-43)
  • 41
    1604-316 ...SCREW, RELIEF (INC. ONE NO. 11)
    ...SCREW, RELIEF (INC. ONE NO. 11)
  • 42
    2603-504 ...O-RING
    ...O-RING
  • 43
    2603-502 ...O-RING
    ...O-RING
  • 44
    2604-969 PISTON, INTERNAL FLOATING - ASSEMBLY
    PISTON, INTERNAL FLOATING - ASSEMBLY
  • 45
    2603-515 RESERVOIR
    RESERVOIR
  • 46
    3604-519 CLAMP, RESERVOIR
    CLAMP, RESERVOIR
  • 47
    3604-516 HOUSING, DAMPING ADJUSTER
    HOUSING, DAMPING ADJUSTER
  • 48
    3604-187 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 49-51)
    PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 49-51)
  • 49
    0603-331 ...VALVE, 0.700 X 0.008 IN.
    ...VALVE, 0.700 X 0.008 IN.
  • 50
    2603-501 ...VALVE, 0.700 X 0.010 IN.
    ...VALVE, 0.700 X 0.010 IN.
  • 51
    3604-165 ...PLATE, BACKUP
    ...PLATE, BACKUP
  • 52
    2603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 43)
    CARTRIDGE, DAMPING ADJUSTER (INC. 43)
  • 53
    5639-240 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
