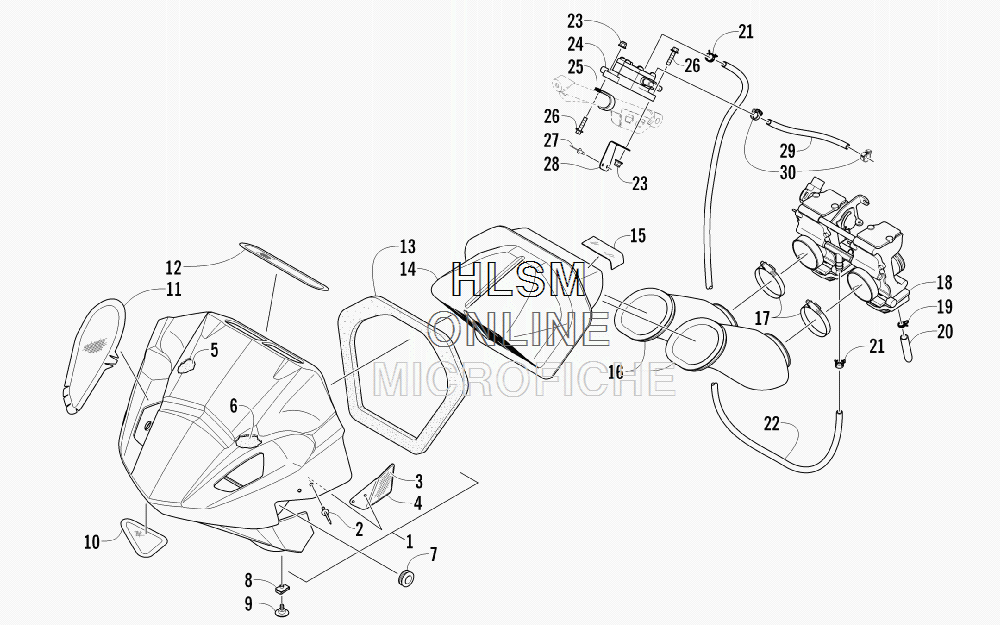

AIR SILENCER- CARBURETOR- AND FUEL PUMP ASSEMBLY для Arctic Cat SNO PRO 600 SNO CROSS - 2011 года выпуска`
-
№АртикулНазвание
-
13718-083 BUMPER, FRONT/AIR SILENCER (INC. 2-6)BUMPER, FRONT/AIR SILENCER (INC. 2-6)
-
28061-508 ...RIVET...RIVET
-
39611-390 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
39611-391 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
46606-264 ...BRACKET, MOUNTING - REFLECTOR - RIGHT...BRACKET, MOUNTING - REFLECTOR - RIGHT
-
46606-265 ...BRACKET, MOUNTING - REFLECTOR - LEFT...BRACKET, MOUNTING - REFLECTOR - LEFT
-
50617-612 ...FOAM, AIR INTAKE - UPPER RIGHT...FOAM, AIR INTAKE - UPPER RIGHT
-
50617-613 ...FOAM, AIR INTAKE - UPPER LEFT...FOAM, AIR INTAKE - UPPER LEFT
-
60617-610 ...FOAM, AIR INTAKE - RIGHT...FOAM, AIR INTAKE - RIGHT
-
60617-611 ...FOAM, AIR INTAKE - LEFT...FOAM, AIR INTAKE - LEFT
-
71623-256 GROMMETGROMMET
-
80423-577 CLIP, U-NUTCLIP, U-NUT
-
90423-355 SCREW, SHOULDERSCREW, SHOULDER
-
105606-840 SCREEN, AIR INTAKE - LOWER RIGHTSCREEN, AIR INTAKE - LOWER RIGHT
-
105606-841 SCREEN, AIR INTAKE - LOWER LEFTSCREEN, AIR INTAKE - LOWER LEFT
-
115606-838 SCREEN, AIR INTAKE - UPPER RIGHTSCREEN, AIR INTAKE - UPPER RIGHT
-
115606-839 SCREEN, AIR INTAKE - UPPER LEFTSCREEN, AIR INTAKE - UPPER LEFT
-
125606-826 SCREEN, AIR INTAKE - UPPER CENTERSCREEN, AIR INTAKE - UPPER CENTER
-
130617-594 SEAL, FOAMSEAL, FOAM
-
145606-836 INTAKE, AIRINTAKE, AIR
-
152606-554 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
162670-049 BOOT, CARBURETORBOOT, CARBURETOR
-
170423-019 CLAMPCLAMP
-
182670-207 CARBURETORCARBURETOR
-
190623-652 CLAMP, HOSECLAMP, HOSE
-
200610-442 HOSE, DRAINHOSE, DRAIN
-
211623-197 CLAMP, HOSECLAMP, HOSE
-
220410-143 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
238427-602 NUT, LOCKNUT, LOCK
-
241670-230 PUMP, FUELPUMP, FUEL
-
251623-722 CLAMP, RETAININGCLAMP, RETAINING
-
268408-625 SCREW, CAPSCREW, CAP
-
278060-706 RIVETRIVET
-
285606-967 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
290610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
300124-045 CLAMP, HOSECLAMP, HOSE
