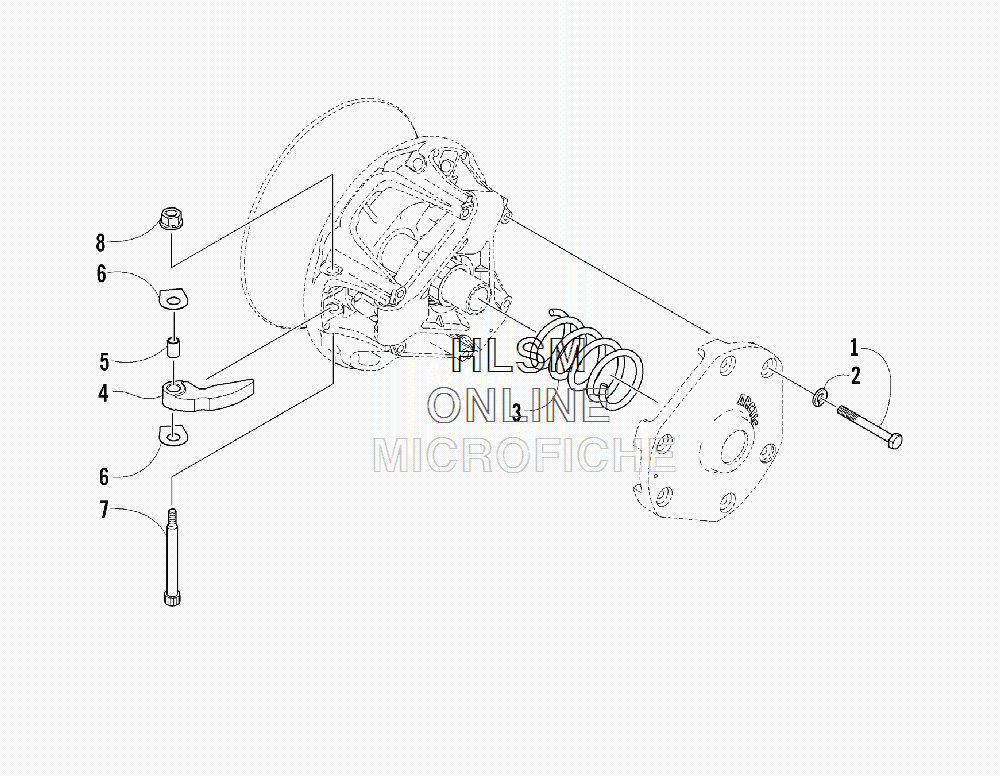

DRIVE CLUTCH для Arctic Cat SNO PRO 600 SNO CROSS - 2011 года выпуска
-
№АртикулНазвание
-
-0746-254 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
11623-442 SCREW, CAPSCREW, CAP
-
28051-212 WASHER, LOCKWASHER, LOCK
-
30646-410 SPRING, DRIVE CLUTCH - BLUESPRING, DRIVE CLUTCH - BLUE
-
40746-790 ARM, CAM (INC. 5)ARM, CAM (INC. 5)
-
50646-160 ...BEARING...BEARING
-
60646-101 WASHERWASHER
-
70646-295 PIN, CAM ARMPIN, CAM ARM
-
80623-392 NUT, LOCKNUT, LOCK
-
-5639-161 CAM ARM KIT (INC. 5-8)CAM ARM KIT (INC. 5-8)
