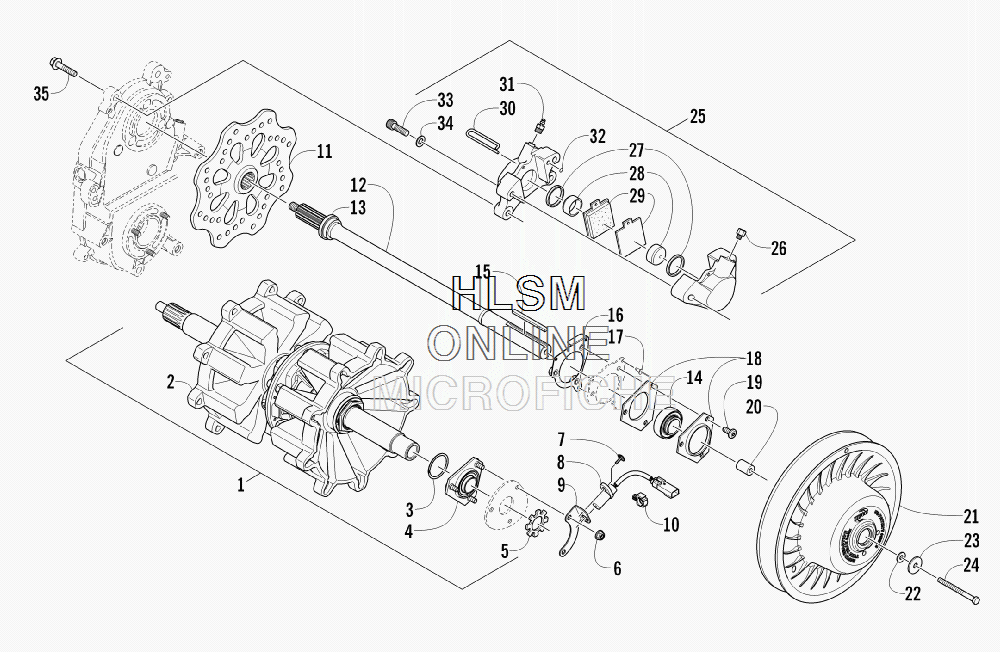

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat SNO PRO 600 SNO CROSS - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0728-193 TRACK DRIVE - ASSEMBLY (INC. 2-5)
    TRACK DRIVE - ASSEMBLY (INC. 2-5)
  • 2
    2602-401 ...SPROCKET, DRIVE
    ...SPROCKET, DRIVE
  • 3
    2602-083 ...RING, RETAINING
    ...RING, RETAINING
  • 4
    1702-194 ...FLANGE, BEARING - INNER - ASSEMBLY
    ...FLANGE, BEARING - INNER - ASSEMBLY
  • 5
    2602-185 ...WASHER, SPEEDOMETER SENSOR
    ...WASHER, SPEEDOMETER SENSOR
  • 6
    8047-426 NUT, LOCK
    NUT, LOCK
  • 7
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 8
    0630-207 SENSOR, SPEEDOMETER
    SENSOR, SPEEDOMETER
  • 9
    2602-186 BRACKET, SPEEDOMETER SENSOR
    BRACKET, SPEEDOMETER SENSOR
  • 10
    1623-406 CLIP, ROUTING
    CLIP, ROUTING
  • 11
    2602-279 DISC, BRAKE
    DISC, BRAKE
  • 12
    1702-195 SHAFT, DRIVEN (INC. 13-14)
    SHAFT, DRIVEN (INC. 13-14)
  • 13
    1702-210 ...COLLAR, HUB - BRAKE DISC
    ...COLLAR, HUB - BRAKE DISC
  • 14
    2602-390 ...BEARING, 1 IN. W/O LOCK COLLAR
    ...BEARING, 1 IN. W/O LOCK COLLAR
  • 15
    0101-076 KEY
    KEY
  • 16
    5606-989 PLATE, NUT - DRIVEN SHAFT
    PLATE, NUT - DRIVEN SHAFT
  • 17
    8060-682 RIVET
    RIVET
  • 18
    0602-932 PLATE, FLANGE
    PLATE, FLANGE
  • 19
    1623-766 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 20
    0648-785 SHAFT, STUB
    SHAFT, STUB
  • 21
    0726-288 CLUTCH, DRIVEN - ASSEMBLY
    CLUTCH, DRIVEN - ASSEMBLY
  • 22
    0123-053 WASHER
    WASHER
  • 23
    0123-019 WASHER
    WASHER
  • 24
    8002-138 SCREW, CAP
    SCREW, CAP
  • 25
    1602-639 CALIPER, BRAKE - ASSEMBLY (INC. 26-34)
    CALIPER, BRAKE - ASSEMBLY (INC. 26-34)
  • 26
    0602-590 ...FITTING, ADAPTER
    ...FITTING, ADAPTER
  • 27
    0602-583 ...O-RING
    ...O-RING
  • 28
    0602-708 ...PISTON
    ...PISTON
  • 29
    0702-229 ...PAD, BRAKE - SET (INC. 30)
    ...PAD, BRAKE - SET (INC. 30)
  • 30
    0602-706 ......PIN, RETAINING
    ......PIN, RETAINING
  • 31
    0602-707 ...SCREW, BLEED - ASSEMBLY
    ...SCREW, BLEED - ASSEMBLY
  • 32
    0602-729 ...O-RING, HOUSING
    ...O-RING, HOUSING
  • 33
    8005-679 ...SCREW, CAP
    ...SCREW, CAP
  • 34
    8050-272 ...WASHER
    ...WASHER
  • 35
    1623-558 SCREW, CAP
    SCREW, CAP
