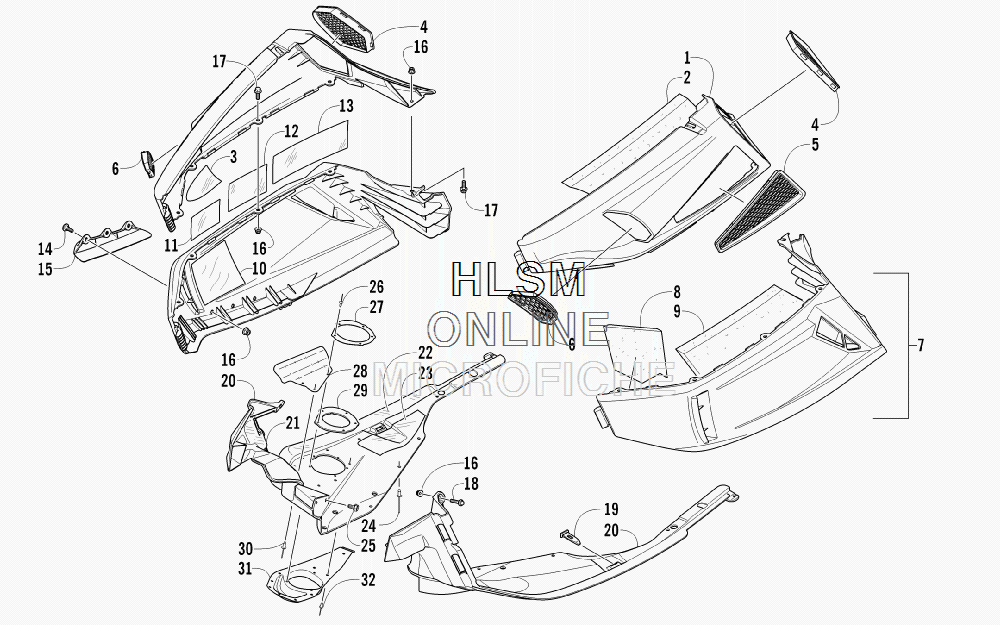

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat BEARCAT 570 LTD - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-288 PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 2-3)
    PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 2-3)
  • 1
    2718-793 PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 2)
    PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 2)
  • 2
    0617-562 ...FOAM, UPPER SIDE PANEL - RIGHT
    ...FOAM, UPPER SIDE PANEL - RIGHT
  • 2
    0617-057 ...FOAM, UPPER SIDE PANEL - LEFT
    ...FOAM, UPPER SIDE PANEL - LEFT
  • 3
    4606-799 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 4
    4606-650 VENT, UPPER SIDE PANEL - REAR - RIGHT
    VENT, UPPER SIDE PANEL - REAR - RIGHT
  • 4
    4606-651 VENT, UPPER SIDE PANEL - REAR - LEFT
    VENT, UPPER SIDE PANEL - REAR - LEFT
  • 5
    5606-185 VENT, UPPER SIDE PANEL - CENTER - LEFT
    VENT, UPPER SIDE PANEL - CENTER - LEFT
  • 6
    4606-662 VENT, UPPER SIDE PANEL - FORWARD - RIGHT
    VENT, UPPER SIDE PANEL - FORWARD - RIGHT
  • 6
    4606-663 VENT, UPPER SIDE PANEL - FORWARD - LEFT
    VENT, UPPER SIDE PANEL - FORWARD - LEFT
  • 7
    2718-274 PANEL, SIDE - LOWER - RIGHT - BLACK (INC. 8-10)
    PANEL, SIDE - LOWER - RIGHT - BLACK (INC. 8-10)
  • 7
    2718-349 PANEL, SIDE - LOWER - LEFT - BLACK (INC. 8-9)
    PANEL, SIDE - LOWER - LEFT - BLACK (INC. 8-9)
  • 8
    0617-564 ...FOAM, LOWER SIDE PANEL - FRONT - RIGHT
    ...FOAM, LOWER SIDE PANEL - FRONT - RIGHT
  • 8
    0617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT
    ...FOAM, LOWER SIDE PANEL - FRONT - LEFT
  • 9
    0617-568 ...FOAM, LOWER SIDE PANEL - REAR - RIGHT
    ...FOAM, LOWER SIDE PANEL - REAR - RIGHT
  • 9
    0617-567 ...FOAM, LOWER SIDE PANEL - REAR - LEFT
    ...FOAM, LOWER SIDE PANEL - REAR - LEFT
  • 10
    5606-548 ...FOIL, PROTECTIVE - RIGHT
    ...FOIL, PROTECTIVE - RIGHT
  • 11
    6606-219 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 12
    6606-218 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 13
    6606-220 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 14
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 15
    5606-404 DEFLECTOR, EXHAUST
    DEFLECTOR, EXHAUST
  • 16
    8427-602 NUT, LOCK
    NUT, LOCK
  • 16
    8427-602 NUT, LOCK
    NUT, LOCK
  • 17
    8408-620 SCREW, CAP
    SCREW, CAP
  • 18
    8408-635 SCREW, CAP
    SCREW, CAP
  • 19
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 20
    5706-034 PLATE, SKID - RIGHT
    PLATE, SKID - RIGHT
  • 20
    5706-035 PLATE, SKID - LEFT
    PLATE, SKID - LEFT
  • 21
    4606-982 FOIL, SKID PLATE HINGE - RIGHT
    FOIL, SKID PLATE HINGE - RIGHT
  • 22
    4606-798 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 23
    4606-797 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 24
    8061-708 RIVET
    RIVET
  • 25
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 26
    8060-510 RIVET
    RIVET
  • 27
    1712-348 PLATE, EXHAUST - OUTLET
    PLATE, EXHAUST - OUTLET
  • 28
    2612-268 SHIELD, HEAT
    SHIELD, HEAT
  • 29
    2612-287 SEAL, EXHAUST - OUTLET
    SEAL, EXHAUST - OUTLET
  • 30
    8061-508 RIVET
    RIVET
  • 31
    1712-501 SHIELD, HEAT - EXHAUST OUTLET
    SHIELD, HEAT - EXHAUST OUTLET
  • 32
    0623-778 RIVET
    RIVET
