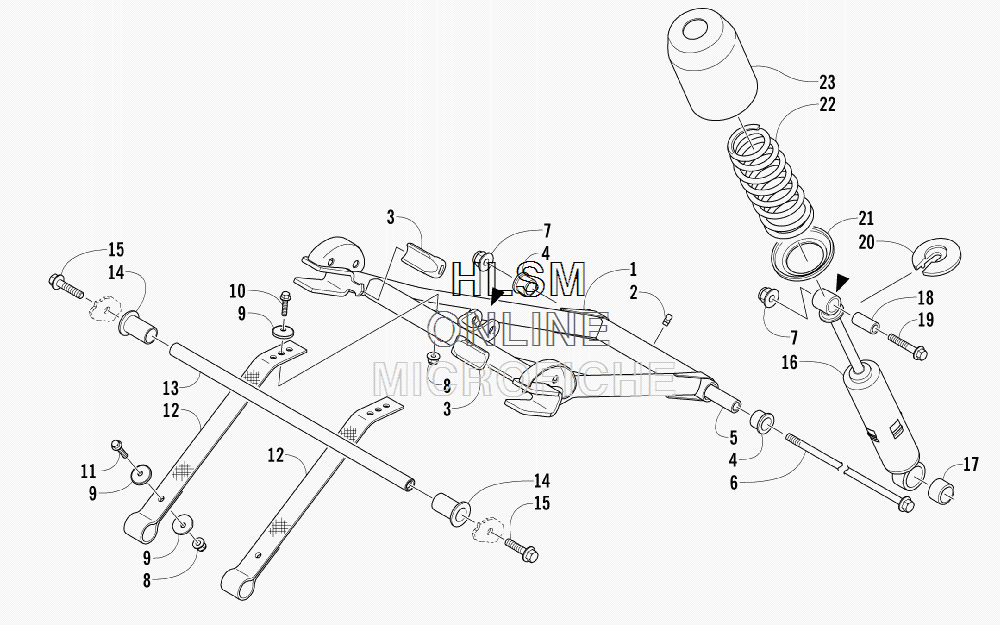

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat BEARCAT 570 LTD - 2011 года выпуска`
-
№АртикулНазвание
-
11704-671 ARM, FRONT SUSPENSION - BLACK (INC. 2-4)ARM, FRONT SUSPENSION - BLACK (INC. 2-4)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
33604-141 ...BUMPER, FRONT SLIDER...BUMPER, FRONT SLIDER
-
40104-386 ...BUSHING...BUSHING
-
53604-272 AXLE, INNERAXLE, INNER
-
60423-537 SCREW, CAPSCREW, CAP
-
78427-002 NUT, LOCKNUT, LOCK
-
88427-602 NUT, LOCKNUT, LOCK
-
90623-875 WASHERWASHER
-
108408-625 SCREW, CAPSCREW, CAP
-
118408-635 SCREW, CAPSCREW, CAP
-
123604-274 STRAP, LIMITERSTRAP, LIMITER
-
133604-234 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
143604-233 BUSHING, FLAREDBUSHING, FLARED
-
158408-041 SCREW, CAPSCREW, CAP
-
163604-334 SHOCK ABSORBERSHOCK ABSORBER
-
171604-791 BUSHINGBUSHING
-
183604-273 AXLE, SHOCKAXLE, SHOCK
-
198408-050 SCREW, CAPSCREW, CAP
-
201603-889 RETAINER, SPRINGRETAINER, SPRING
-
212603-719 RETAINER, SPRING - LOWERRETAINER, SPRING - LOWER
-
221704-236 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
230604-790 COVER, SHOCKCOVER, SHOCK
