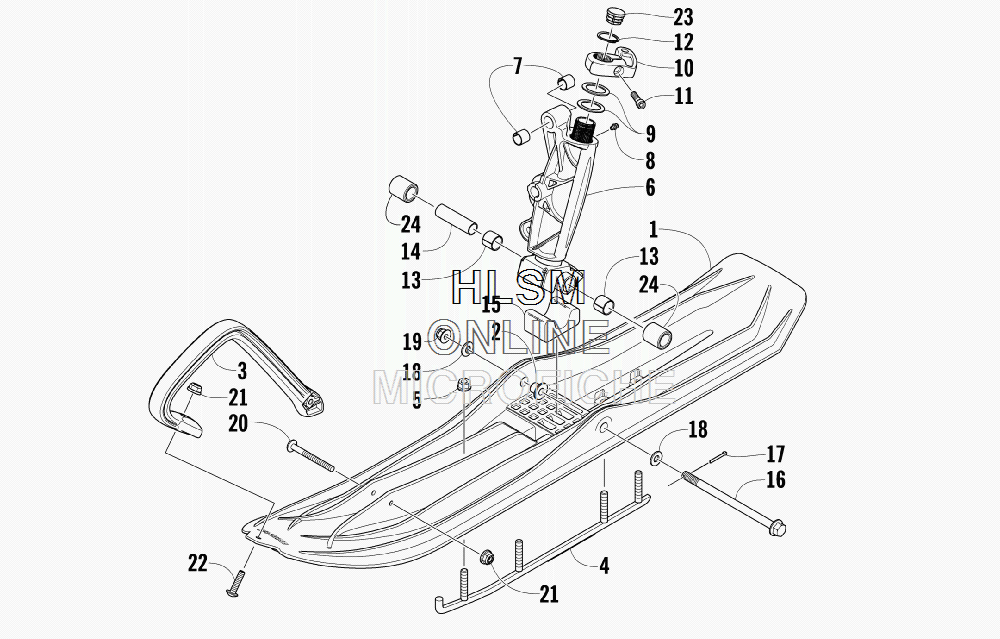

SKI AND SPINDLE ASSEMBLY для Arctic Cat BEARCAT 570 LTD - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2603-729 SKI, PLASTIC - BLACK
    SKI, PLASTIC - BLACK
  • 2
    2603-746 INSERT
    INSERT
  • 3
    2603-598 HANDLE, PLASTIC - BLACK
    HANDLE, PLASTIC - BLACK
  • 4
    0703-871 WEARBAR
    WEARBAR
  • 5
    8047-486 NUT, LOCK
    NUT, LOCK
  • 6
    2703-452 SPINDLE, STEERING - RIGHT - PLATINUM (INC. 7-13)
    SPINDLE, STEERING - RIGHT - PLATINUM (INC. 7-13)
  • 6
    2703-453 SPINDLE, STEERING - LEFT - PLATINUM (INC. 7-13)
    SPINDLE, STEERING - LEFT - PLATINUM (INC. 7-13)
  • 7
    1603-895 ...BEARING
    ...BEARING
  • 8
    1623-654 ...FITTING, GREASE
    ...FITTING, GREASE
  • 9
    2603-382 ...WASHER, THRUST
    ...WASHER, THRUST
  • 10
    4706-116 ...ARM, SPINDLE - RIGHT - PLATINUM
    ...ARM, SPINDLE - RIGHT - PLATINUM
  • 10
    4706-117 ...ARM, SPINDLE - LEFT - PLATINUM
    ...ARM, SPINDLE - LEFT - PLATINUM
  • 11
    0623-872 ...SCREW, CAP
    ...SCREW, CAP
  • 12
    0623-796 ...RING, RETAINING
    ...RING, RETAINING
  • 13
    0603-158 ...BEARING
    ...BEARING
  • 14
    2603-730 AXLE, SPINDLE
    AXLE, SPINDLE
  • 15
    0603-036 DAMPER, SKI
    DAMPER, SKI
  • 16
    1623-718 SCREW, CAP
    SCREW, CAP
  • 17
    0123-458 PIN, COTTER
    PIN, COTTER
  • 18
    8050-282 WASHER
    WASHER
  • 19
    0423-744 NUT, LOCK
    NUT, LOCK
  • 20
    1623-688 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    8047-366 NUT, LOCK
    NUT, LOCK
  • 22
    1623-689 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    0623-831 CAP, SPINDLE
    CAP, SPINDLE
  • 24
    2603-731 SPACER
    SPACER
