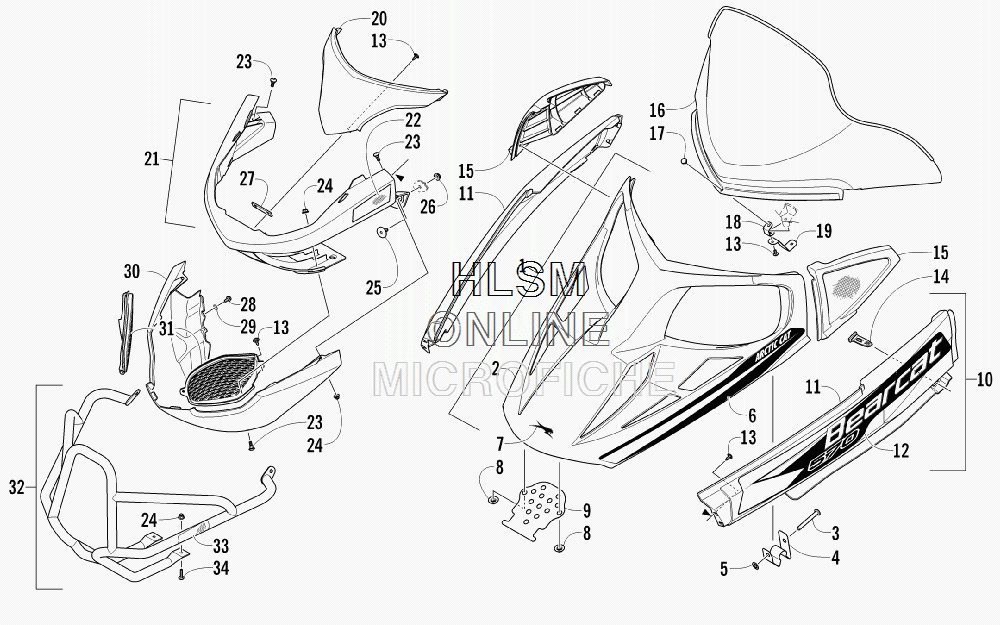

HOOD- WINDSHIELD- AND FRONT BUMBER ASSEMBLY для Arctic Cat BEARCAT 570 LTD - 2011 года выпуска`
-
№АртикулНазвание
-
13718-034 HOOD W/DECALS - BLACK (INC. 2-7)HOOD W/DECALS - BLACK (INC. 2-7)
-
27800-953 ...HOOD W/O DECALS - BLACK (INC. 3-5)...HOOD W/O DECALS - BLACK (INC. 3-5)
-
31623-610 ......PIN, RETAINING......PIN, RETAINING
-
45706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT......CLIP, HOOD HOLD-DOWN - RIGHT
-
45706-085 ......CLIP, HOOD HOLD-DOWN - LEFT......CLIP, HOOD HOLD-DOWN - LEFT
-
51623-409 ......NUT, PUSH......NUT, PUSH
-
69611-224 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
69611-225 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
78611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
81623-469 NUT, STAMPEDNUT, STAMPED
-
95606-042 BRACKET, HINGEBRACKET, HINGE
-
103718-028 SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 11-12)SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 11-12)
-
103718-029 SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 11-12)SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 11-12)
-
114606-884 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK...SPAR, FRONT W/O DECALS - RIGHT - BLACK
-
114606-885 ...SPAR, FRONT W/O DECALS - LEFT - BLACK...SPAR, FRONT W/O DECALS - LEFT - BLACK
-
129611-226 ...DECAL, FRONT SPAR - RIGHT...DECAL, FRONT SPAR - RIGHT
-
129611-227 ...DECAL, FRONT SPAR - LEFT...DECAL, FRONT SPAR - LEFT
-
131623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
144606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
155606-924 BEZEL, INTAKE - RIGHT - BLACKBEZEL, INTAKE - RIGHT - BLACK
-
155606-925 BEZEL, INTAKE - LEFT - BLACKBEZEL, INTAKE - LEFT - BLACK
-
165606-962 WINDSHIELDWINDSHIELD
-
171623-677 RIVET, PLASTICRIVET, PLASTIC
-
184606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
195606-277 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
204606-518 FASCIA, BUMPER - UPPER - BLACKFASCIA, BUMPER - UPPER - BLACK
-
212718-765 BUMPER, FRONT - BLACK (INC. 22)BUMPER, FRONT - BLACK (INC. 22)
-
229611-384 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
229611-385 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
230423-355 SCREW, SHOULDERSCREW, SHOULDER
-
248427-602 NUT, LOCKNUT, LOCK
-
251623-775 SCREW, SHOULDERSCREW, SHOULDER
-
268424-602 NUTNUT
-
275606-953 SPACERSPACER
-
280623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
298053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
305606-462 FASCIA, BUMPER - LOWER - BLACKFASCIA, BUMPER - LOWER - BLACK
-
314606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
314606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
-
325706-082 BUMPER, FRONT - BLACK (INC. 33)BUMPER, FRONT - BLACK (INC. 33)
-
339611-395 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
348476-625 SCREW, MACHINESCREW, MACHINE
