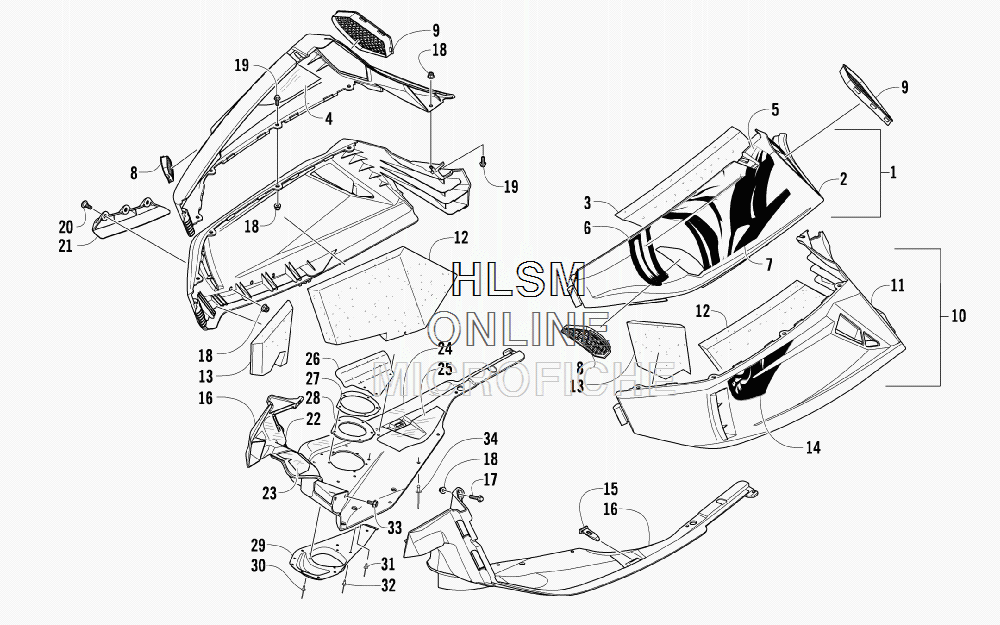

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat F6 SNO PRO - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2718-902 PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-7)
    PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-7)
  • 1
    2718-903 PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5-7)
    PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5-7)
  • 2
    2718-790 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)
    ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)
  • 2
    2718-791 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)
    ...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)
  • 3
    0617-562 ......FOAM, UPPER SIDE PANEL - RIGHT
    ......FOAM, UPPER SIDE PANEL - RIGHT
  • 3
    0617-563 ......FOAM, UPPER SIDE PANEL - LEFT
    ......FOAM, UPPER SIDE PANEL - LEFT
  • 4
    0637-318 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    8611-750 ...DECAL, UPPER SIDE PANEL - UPPER - RIGHT
    ...DECAL, UPPER SIDE PANEL - UPPER - RIGHT
  • 5
    8611-751 ...DECAL, UPPER SIDE PANEL - UPPER - LEFT
    ...DECAL, UPPER SIDE PANEL - UPPER - LEFT
  • 6
    8611-748 ...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT
    ...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT
  • 6
    8611-749 ...DECAL, UPPER SIDE PANEL - FORWARD - LEFT
    ...DECAL, UPPER SIDE PANEL - FORWARD - LEFT
  • 7
    8611-752 ...DECAL, UPPER SIDE PANEL - CENTER - RIGHT
    ...DECAL, UPPER SIDE PANEL - CENTER - RIGHT
  • 7
    8611-753 ...DECAL, UPPER SIDE PANEL - CENTER - LEFT
    ...DECAL, UPPER SIDE PANEL - CENTER - LEFT
  • 8
    4606-662 VENT, UPPER SIDE PANEL - FRONT - RIGHT - BLACK
    VENT, UPPER SIDE PANEL - FRONT - RIGHT - BLACK
  • 8
    4606-663 VENT, UPPER SIDE PANEL - FRONT - LEFT - BLACK
    VENT, UPPER SIDE PANEL - FRONT - LEFT - BLACK
  • 9
    4606-650 VENT, UPPER SIDE PANEL - REAR - RIGHT - BLACK
    VENT, UPPER SIDE PANEL - REAR - RIGHT - BLACK
  • 9
    4606-651 VENT, UPPER SIDE PANEL - REAR - LEFT - BLACK
    VENT, UPPER SIDE PANEL - REAR - LEFT - BLACK
  • 10
    2718-906 PANEL, SIDE - LOWER - RIGHT W/DECALS - BLACK (INC. 11-14)
    PANEL, SIDE - LOWER - RIGHT W/DECALS - BLACK (INC. 11-14)
  • 10
    2718-907 PANEL, SIDE - LOWER - LEFT W/DECALS - BLACK (INC. 11-14)
    PANEL, SIDE - LOWER - LEFT W/DECALS - BLACK (INC. 11-14)
  • 11
    2718-798 ...PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 12-13)
    ...PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 12-13)
  • 11
    2718-349 ...PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 12-13)
    ...PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 12-13)
  • 12
    0617-568 ......FOAM, LOWER SIDE PANEL - REAR - RIGHT
    ......FOAM, LOWER SIDE PANEL - REAR - RIGHT
  • 12
    0617-567 ......FOAM, LOWER SIDE PANEL - REAR - LEFT
    ......FOAM, LOWER SIDE PANEL - REAR - LEFT
  • 13
    0617-564 ......FOAM, LOWER SIDE PANEL - FRONT - RIGHT
    ......FOAM, LOWER SIDE PANEL - FRONT - RIGHT
  • 13
    0617-566 ......FOAM, LOWER SIDE PANEL - FRONT - LEFT
    ......FOAM, LOWER SIDE PANEL - FRONT - LEFT
  • 14
    8611-756 ...DECAL, LOWER SIDE PANEL - RIGHT
    ...DECAL, LOWER SIDE PANEL - RIGHT
  • 14
    8611-757 ...DECAL, LOWER SIDE PANEL - LEFT
    ...DECAL, LOWER SIDE PANEL - LEFT
  • 15
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 16
    3706-706 PLATE, SKID - RIGHT
    PLATE, SKID - RIGHT
  • 16
    4706-073 PLATE, SKID - LEFT
    PLATE, SKID - LEFT
  • 17
    8408-635 SCREW, CAP
    SCREW, CAP
  • 18
    8427-602 NUT, LOCK
    NUT, LOCK
  • 19
    8408-620 SCREW, CAP
    SCREW, CAP
  • 20
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 21
    5606-404 DEFLECTOR, EXHAUST
    DEFLECTOR, EXHAUST
  • 22
    4606-982 FOIL, SKID PLATE HINGE - RIGHT
    FOIL, SKID PLATE HINGE - RIGHT
  • 23
    4606-796 FOIL, PROTECTIVE - UPPER - FRONT
    FOIL, PROTECTIVE - UPPER - FRONT
  • 24
    4606-798 FOIL, PROTECTIVE - OUTER
    FOIL, PROTECTIVE - OUTER
  • 25
    4606-797 FOIL, PROTECTIVE - CENTER
    FOIL, PROTECTIVE - CENTER
  • 26
    2612-268 SHIELD, HEAT - RIGHT
    SHIELD, HEAT - RIGHT
  • 27
    1712-348 PLATE, EXHAUST - OUTLET
    PLATE, EXHAUST - OUTLET
  • 28
    2612-156 SEAL, EXHAUST - OUTLET
    SEAL, EXHAUST - OUTLET
  • 29
    1712-501 SHIELD, HEAT - EXHAUST OUTLET
    SHIELD, HEAT - EXHAUST OUTLET
  • 30
    8060-510 RIVET
    RIVET
  • 31
    8061-508 RIVET
    RIVET
  • 32
    0623-778 RIVET
    RIVET
  • 33
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 34
    8061-708 RIVET
    RIVET
