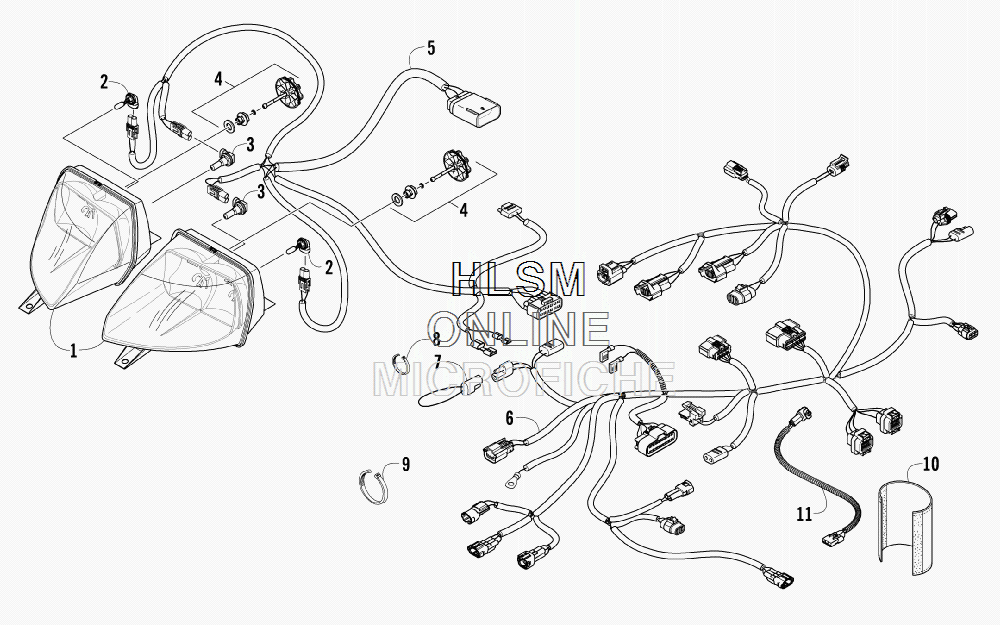

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat F6 SNO PRO - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0609-870 LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)
    LENS/REFLECTOR - HEADLIGHT - RIGHT (INC. 2-4)
  • 1
    0609-871 LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)
    LENS/REFLECTOR - HEADLIGHT - LEFT (INC. 2-4)
  • 2
    0609-783 ...BULB, HEADLIGHT - LOW BEAM
    ...BULB, HEADLIGHT - LOW BEAM
  • 3
    0609-782 ...BULB, HEADLIGHT - HIGH BEAM
    ...BULB, HEADLIGHT - HIGH BEAM
  • 4
    0609-779 ...ADJUSTER, HEADLIGHT - ASSEMBLY
    ...ADJUSTER, HEADLIGHT - ASSEMBLY
  • 5
    1686-572 HARNESS, CONSOLE
    HARNESS, CONSOLE
  • 6
    1686-551 HARNESS, MAIN
    HARNESS, MAIN
  • 7
    0486-164 TETHER, ACCESSORY CONNECTOR - OPTIONAL
    TETHER, ACCESSORY CONNECTOR - OPTIONAL
  • 8
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 9
    0123-903 TIE, CABLE - 11.5 IN.
    TIE, CABLE - 11.5 IN.
  • 10
    3706-761 WRAP, WIRE HARNESS
    WRAP, WIRE HARNESS
  • 11
    1686-556 HARNESS, EXTENSION - TAILLIGHT
    HARNESS, EXTENSION - TAILLIGHT
