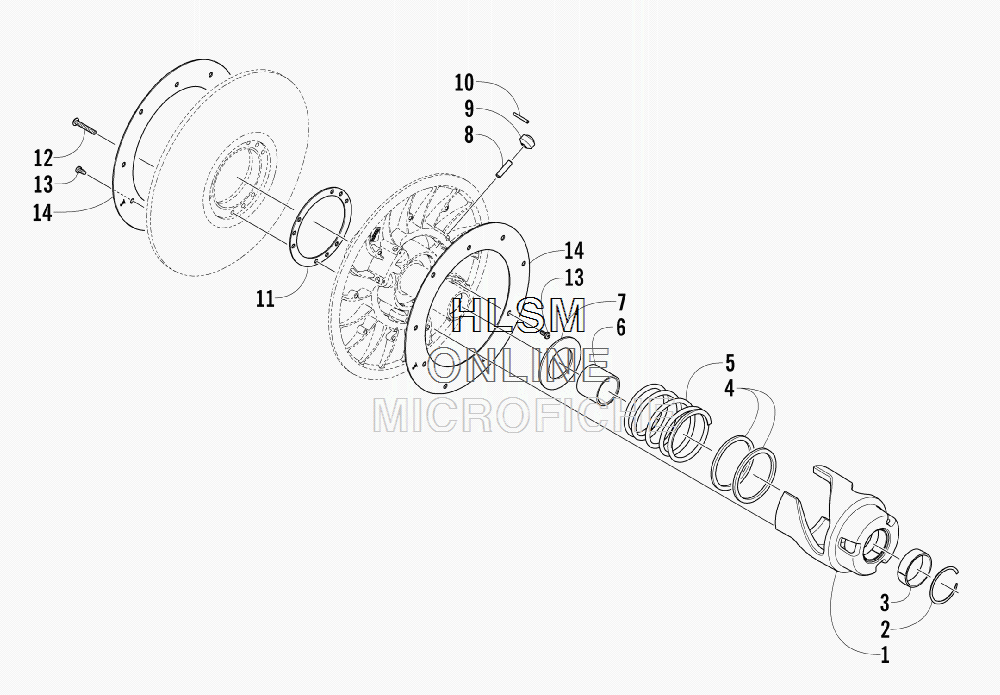

DRIVEN CLUTCH для Arctic Cat F6 SNO PRO - 2010 года выпуска

  • №
    Артикул
    Название
  • -
    0726-278 DRIVEN CLUTCH ASSEMBLY
    DRIVEN CLUTCH ASSEMBLY
  • 1
    0748-664 BRACKET, TORQUE 46/40...(INC. 2-3)
    BRACKET, TORQUE 46/40...(INC. 2-3)
  • 1
    0748-662 BRACKET, TORQUE 36...(INC. 2-3) - OVER 5,000 FT ALT.
    BRACKET, TORQUE 36...(INC. 2-3) - OVER 5,000 FT ALT.
  • 2
    0648-433 ...RING, SNAP
    ...RING, SNAP
  • 3
    0648-009 ...BEARING
    ...BEARING
  • 4
    0648-713 SEAT, SPRING - DRIVEN CLUTCH
    SEAT, SPRING - DRIVEN CLUTCH
  • 5
    0648-774 SPRING, DRIVEN CLUTCH - ORANGE
    SPRING, DRIVEN CLUTCH - ORANGE
  • 6
    0648-753 SPACER
    SPACER
  • 7
    0648-453 SEAT, SPRING
    SEAT, SPRING
  • 8
    0648-097 PIN, CAM ROLLER
    PIN, CAM ROLLER
  • 9
    0648-139 ROLLER, CAM
    ROLLER, CAM
  • 10
    8070-224 PIN, SPRING
    PIN, SPRING
  • 11
    0637-322 RETAINER, TORQUE BRACKET (INC. 12)
    RETAINER, TORQUE BRACKET (INC. 12)
  • 12
    1623-517 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 13
    0623-914 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0648-728 COVER, SHEAVE
    COVER, SHEAVE
