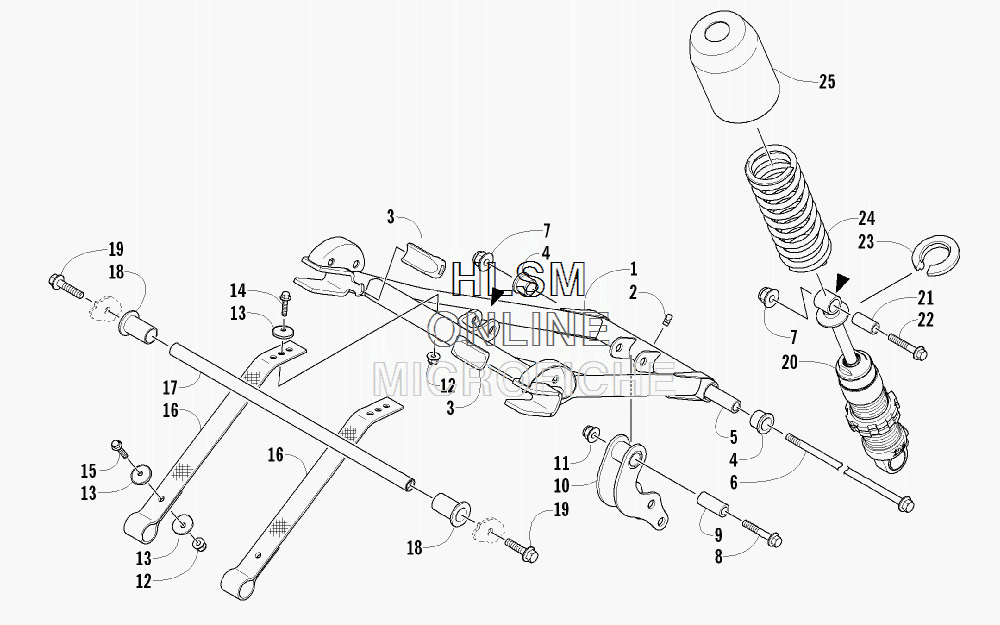

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat F6 SNO PRO - 2010 года выпуска`
-
№АртикулНазвание
-
11704-755 ARM, FRONT SUSPENSION - BLACK (INC. 2-4)ARM, FRONT SUSPENSION - BLACK (INC. 2-4)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
33604-141 ...BUMPER, FRONT SLIDER...BUMPER, FRONT SLIDER
-
40104-386 ...BUSHING...BUSHING
-
53604-272 AXLE, INNERAXLE, INNER
-
60423-537 SCREW, CAPSCREW, CAP
-
78427-002 NUT, LOCKNUT, LOCK
-
88408-850 SCREW, CAPSCREW, CAP
-
92603-574 AXLE, INNERAXLE, INNER
-
101704-758 PIVOT, REAR SHOCKPIVOT, REAR SHOCK
-
118427-802 NUT, LOCKNUT, LOCK
-
128427-602 NUT, LOCKNUT, LOCK
-
130623-875 WASHERWASHER
-
148408-625 SCREW, CAPSCREW, CAP
-
158408-635 SCREW, CAPSCREW, CAP
-
163604-413 STRAP, LIMITERSTRAP, LIMITER
-
173604-234 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
183604-233 BUSHING, FLAREDBUSHING, FLARED
-
198408-041 SCREW, CAPSCREW, CAP
-
201704-898 SHOCK ABSORBERSHOCK ABSORBER
-
213604-273 AXLE, SHOCKAXLE, SHOCK
-
228408-050 SCREW, CAPSCREW, CAP
-
233604-200 RETAINER, SPRINGRETAINER, SPRING
-
241704-737 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
250604-790 COVER, SHOCKCOVER, SHOCK
