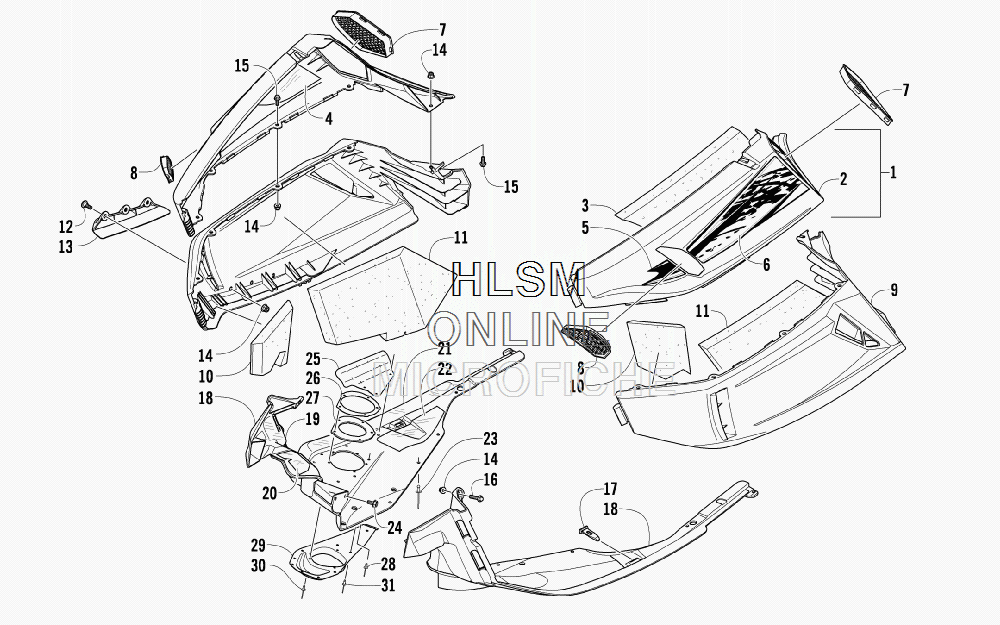

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat F5 LXR - 2010 года выпуска`
-
№АртикулНазвание
-
12718-876 PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-6)PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2-6)
-
12718-877 PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5-6)PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5-6)
-
22718-790 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 3-4)
-
22718-791 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)
-
30617-562 ......FOAM, UPPER SIDE PANEL - RIGHT......FOAM, UPPER SIDE PANEL - RIGHT
-
30617-563 ......FOAM, UPPER SIDE PANEL - LEFT......FOAM, UPPER SIDE PANEL - LEFT
-
44606-799 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
58611-722 ...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT...DECAL, UPPER SIDE PANEL - FORWARD - RIGHT
-
58611-723 ...DECAL, UPPER SIDE PANEL - FORWARD - LEFT...DECAL, UPPER SIDE PANEL - FORWARD - LEFT
-
68611-724 ...DECAL, UPPER SIDE PANEL - CENTER - RIGHT...DECAL, UPPER SIDE PANEL - CENTER - RIGHT
-
68611-725 ...DECAL, UPPER SIDE PANEL - CENTER - LEFT...DECAL, UPPER SIDE PANEL - CENTER - LEFT
-
74606-650 VENT, UPPER SIDE PANEL - REAR - RIGHT - BLACKVENT, UPPER SIDE PANEL - REAR - RIGHT - BLACK
-
74606-651 VENT, UPPER SIDE PANEL - REAR - LEFT - BLACKVENT, UPPER SIDE PANEL - REAR - LEFT - BLACK
-
84606-662 VENT, UPPER SIDE PANEL - RIGHT - BLACKVENT, UPPER SIDE PANEL - RIGHT - BLACK
-
84606-663 VENT, UPPER SIDE PANEL - LEFT - BLACKVENT, UPPER SIDE PANEL - LEFT - BLACK
-
92718-798 PANEL, SIDE - LOWER - RIGHT - BLACK (INC. 10-11)PANEL, SIDE - LOWER - RIGHT - BLACK (INC. 10-11)
-
92718-349 PANEL, SIDE - LOWER - LEFT - BLACK (INC. 10-11)PANEL, SIDE - LOWER - LEFT - BLACK (INC. 10-11)
-
100617-564 ...FOAM, LOWER SIDE PANEL - FRONT - RIGHT...FOAM, LOWER SIDE PANEL - FRONT - RIGHT
-
100617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT...FOAM, LOWER SIDE PANEL - FRONT - LEFT
-
110617-568 ...FOAM, LOWER SIDE PANEL - REAR - RIGHT...FOAM, LOWER SIDE PANEL - REAR - RIGHT
-
110617-567 ...FOAM, LOWER SIDE PANEL - REAR - LEFT...FOAM, LOWER SIDE PANEL - REAR - LEFT
-
120423-355 SCREW, SHOULDERSCREW, SHOULDER
-
135606-404 DEFLECTOR, EXHAUSTDEFLECTOR, EXHAUST
-
148427-602 NUT, LOCKNUT, LOCK
-
158408-620 SCREW, CAPSCREW, CAP
-
168408-635 SCREW, CAPSCREW, CAP
-
174606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
183706-706 PLATE, SKID - RIGHTPLATE, SKID - RIGHT
-
184706-073 PLATE, SKID - LEFTPLATE, SKID - LEFT
-
194606-982 FOIL, SKID PLATE HINGE - RIGHTFOIL, SKID PLATE HINGE - RIGHT
-
204606-796 FOIL, PROTECTIVE UPPER - FRONTFOIL, PROTECTIVE UPPER - FRONT
-
214606-798 FOIL, PROTECTIVE OUTERFOIL, PROTECTIVE OUTER
-
224606-797 FOIL, PROTECTIVE CENTERFOIL, PROTECTIVE CENTER
-
238061-708 RIVETRIVET
-
240623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
252612-268 SHIELD, HEATSHIELD, HEAT
-
261712-348 PLATE, EXHAUST - OUTLETPLATE, EXHAUST - OUTLET
-
272612-156 SEAL, EXHAUST - OUTLETSEAL, EXHAUST - OUTLET
-
288061-508 RIVETRIVET
-
291712-501 SHIELD, HEAT - EXHAUST OUTLETSHIELD, HEAT - EXHAUST OUTLET
-
308060-510 RIVETRIVET
-
310623-778 RIVETRIVET
