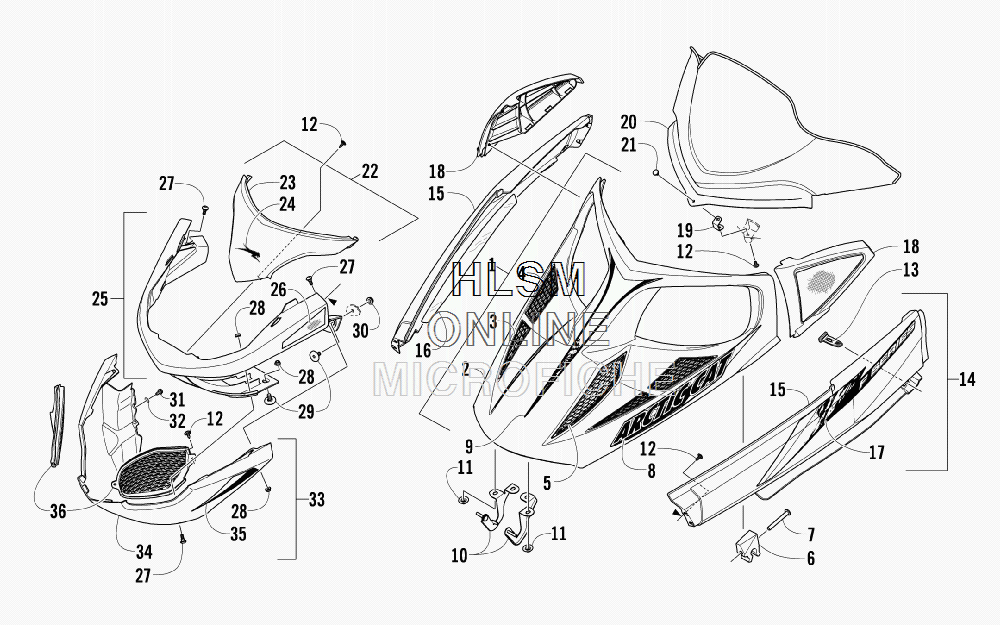

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat F5 LXR - 2010 года выпуска`
-
№АртикулНазвание
-
12718-665 HOOD W/DECALS - GREEN (INC. 2-9)HOOD W/DECALS - GREEN (INC. 2-9)
-
27800-521 ...HOOD W/O DECALS - GREEN (INC. 3-7)...HOOD W/O DECALS - GREEN (INC. 3-7)
-
34606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
-
34606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK......VENT, HOOD - OUTER FRONT - LEFT - BLACK
-
44606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK......VENT, HOOD - OUTER REAR - RIGHT - BLACK
-
44606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK......VENT, HOOD - OUTER REAR - LEFT - BLACK
-
54606-614 ......VENT, HOOD - INNER - RIGHT - BLACK......VENT, HOOD - INNER - RIGHT - BLACK
-
54606-615 ......VENT, HOOD - INNER - LEFT - BLACK......VENT, HOOD - INNER - LEFT - BLACK
-
61623-614 ......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT......CLIP, RUBBER - HOOD HOLD-DOWN - RIGHT
-
61623-615 ......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT......CLIP, RUBBER - HOOD HOLD-DOWN - LEFT
-
71623-610 ......PIN, RETAINING......PIN, RETAINING
-
88611-730 ...DECAL, HOOD - "ARCTIC CAT" - RIGHT...DECAL, HOOD - "ARCTIC CAT" - RIGHT
-
88611-731 ...DECAL, HOOD - "ARCTIC CAT" - LEFT...DECAL, HOOD - "ARCTIC CAT" - LEFT
-
98611-732 ...DECAL, HOOD - CREST...DECAL, HOOD - CREST
-
103706-348 BRACKET, HINGE - RIGHTBRACKET, HINGE - RIGHT
-
103706-347 BRACKET, HINGE - LEFTBRACKET, HINGE - LEFT
-
111623-469 NUT, STAMPEDNUT, STAMPED
-
121623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
134606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
142718-770 SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 15-17)SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 15-17)
-
142718-771 SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 15 AND 17)SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 15 AND 17)
-
154706-610 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK...SPAR, FRONT W/O DECALS - RIGHT - BLACK
-
154706-611 ...SPAR, FRONT W/O DECALS - LEFT - BLACK...SPAR, FRONT W/O DECALS - LEFT - BLACK
-
164606-934 ...FOIL, SPAR - RIGHT - BOTTOM...FOIL, SPAR - RIGHT - BOTTOM
-
178611-726 ...DECAL, FRONT SPAR - RIGHT...DECAL, FRONT SPAR - RIGHT
-
178611-727 ...DECAL, FRONT SPAR - LEFT...DECAL, FRONT SPAR - LEFT
-
184706-644 BEZEL, INTAKE - RIGHT - GREENBEZEL, INTAKE - RIGHT - GREEN
-
184706-645 BEZEL, INTAKE - LEFT - GREENBEZEL, INTAKE - LEFT - GREEN
-
194606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
205606-975 WINDSHIELD, W/ GRAPHICWINDSHIELD, W/ GRAPHIC
-
211623-677 RIVET, PLASTICRIVET, PLASTIC
-
222718-769 FASCIA, BUMPER W/DECALS - GREEN (INC. 23-24)FASCIA, BUMPER W/DECALS - GREEN (INC. 23-24)
-
234706-616 ...FASCIA, BUMPER - UPPER - GREEN...FASCIA, BUMPER - UPPER - GREEN
-
248611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
252718-767 BUMPER, FRONT - BLACK (INC. 26)BUMPER, FRONT - BLACK (INC. 26)
-
269611-282 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
269611-283 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
270423-355 SCREW, SHOULDERSCREW, SHOULDER
-
288427-602 NUT, LOCKNUT, LOCK
-
291623-775 SCREW, SHOULDERSCREW, SHOULDER
-
308424-602 NUTNUT
-
310623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
328053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
332718-768 FASCIA, BUMPER - LOWER W/DECALS - BLACK (INC. 34-35)FASCIA, BUMPER - LOWER W/DECALS - BLACK (INC. 34-35)
-
345606-462 ...FASCIA, BUMPER - LOWER W/O DECALS - BLACK...FASCIA, BUMPER - LOWER W/O DECALS - BLACK
-
358611-728 ...DECAL, FASCIA - LOWER - RIGHT...DECAL, FASCIA - LOWER - RIGHT
-
358611-729 ...DECAL, FASCIA - LOWER - LEFT...DECAL, FASCIA - LOWER - LEFT
-
364606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
364606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
